for Cleanroom Material Transfer

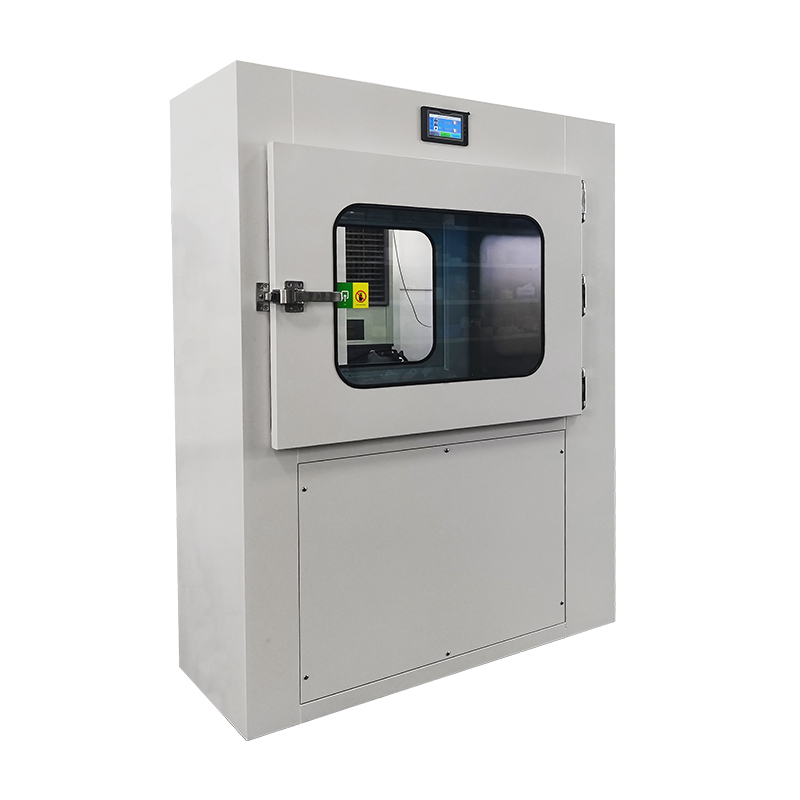

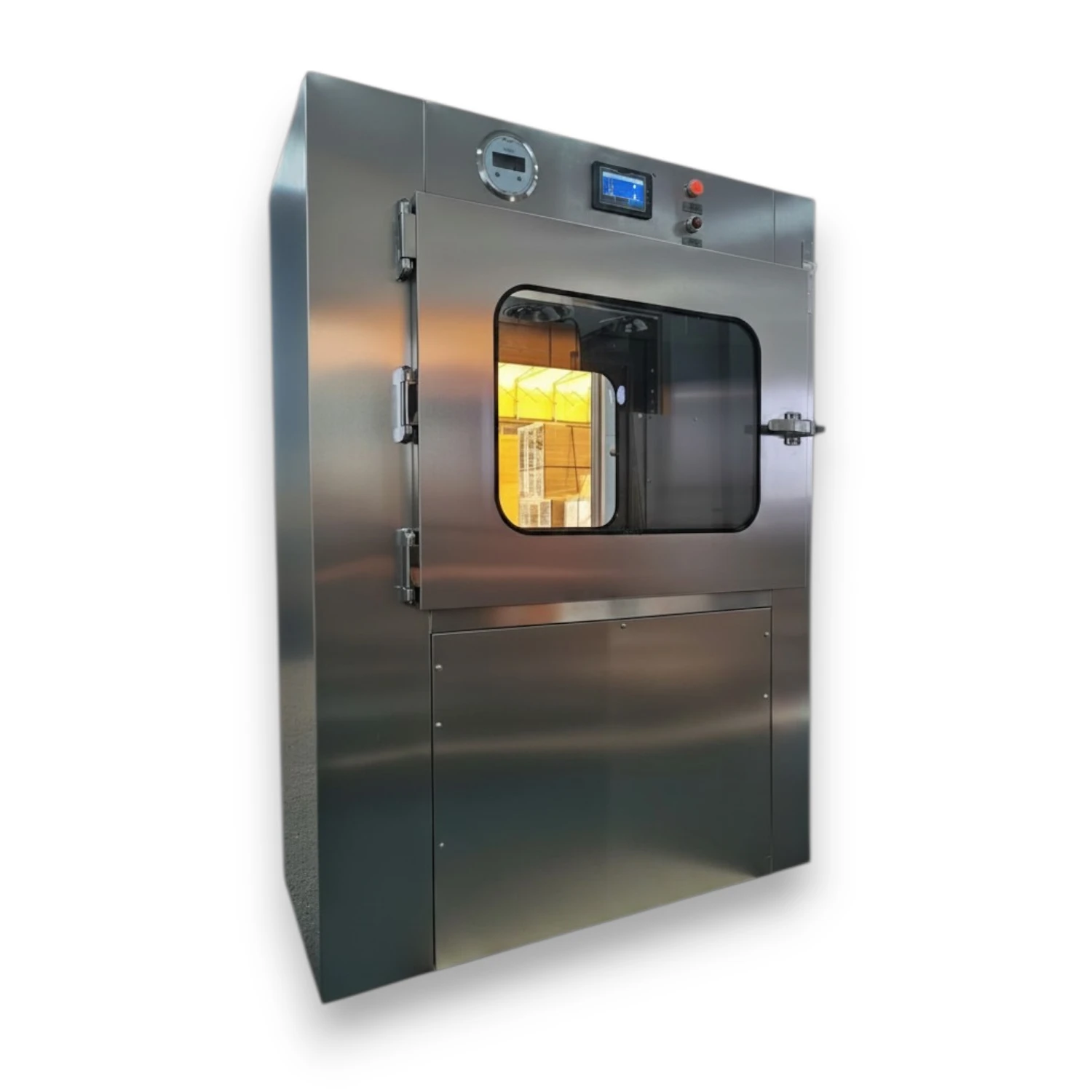

Flair Pass Box with Air Shower combines HEPA-filtered air shower technology with an interlocked transfer chamber to remove surface particles from materials before transfer into controlled cleanroom areas.
Key Benefits：
An Air Shower Pass Box, also known as a Pass Box with Air Shower, is an active cleanroom transfer hatch equipped with HEPA filtration and high-speed airflow nozzles.
Unlike static pass boxes, it integrates HEPA-filtered airflow and air shower nozzles to remove particles from materials before they enter higher cleanliness areas.

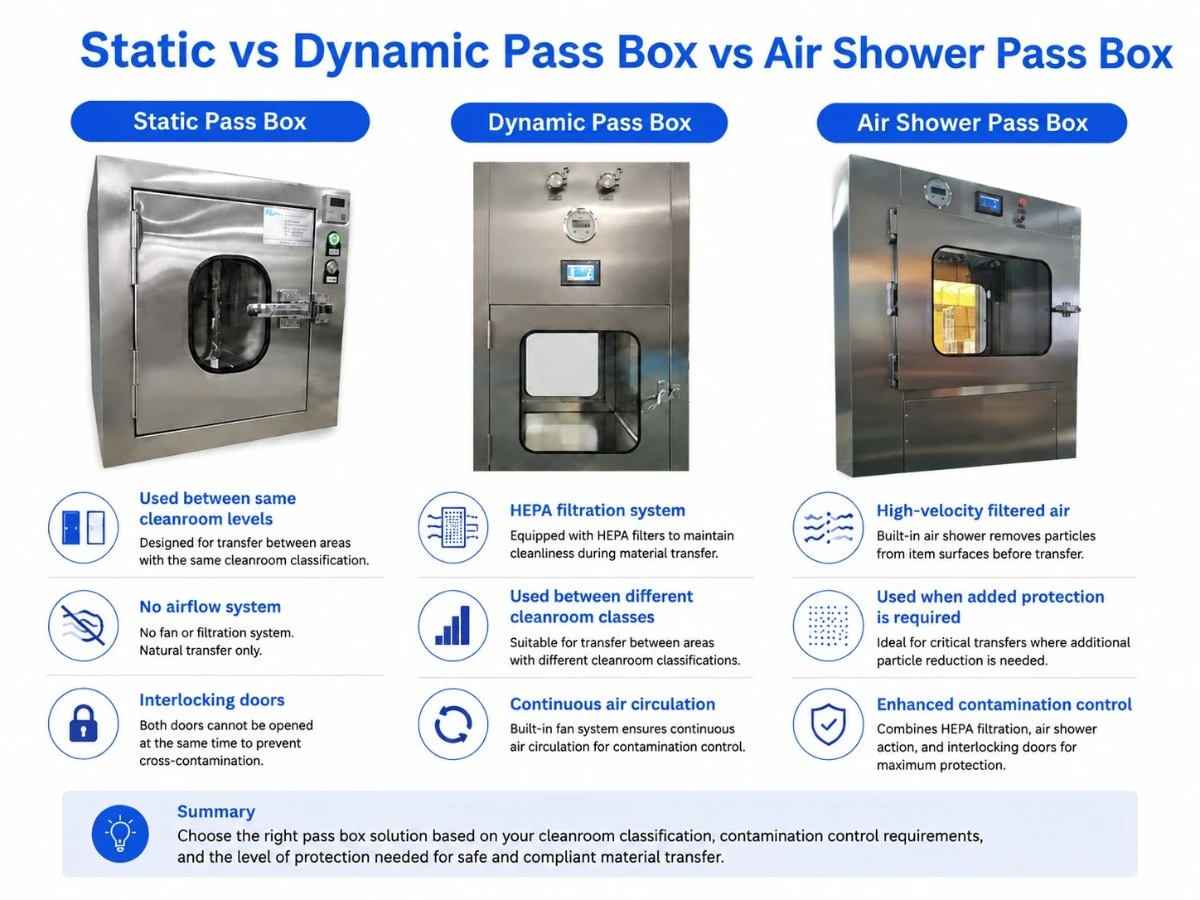

| Type | Feature |
|---|---|
| Static Pass Box | Passive transfer without airflow |
| Dynamic Pass Box | HEPA filtration with air circulation |
| Air Shower Pass Box | HEPA filtration + high-speed particle removal |
Static pass boxes provide passive transfer protection, while dynamic pass boxes and air shower pass boxes use HEPA filtration and airflow systems to improve contamination control during material transfer.

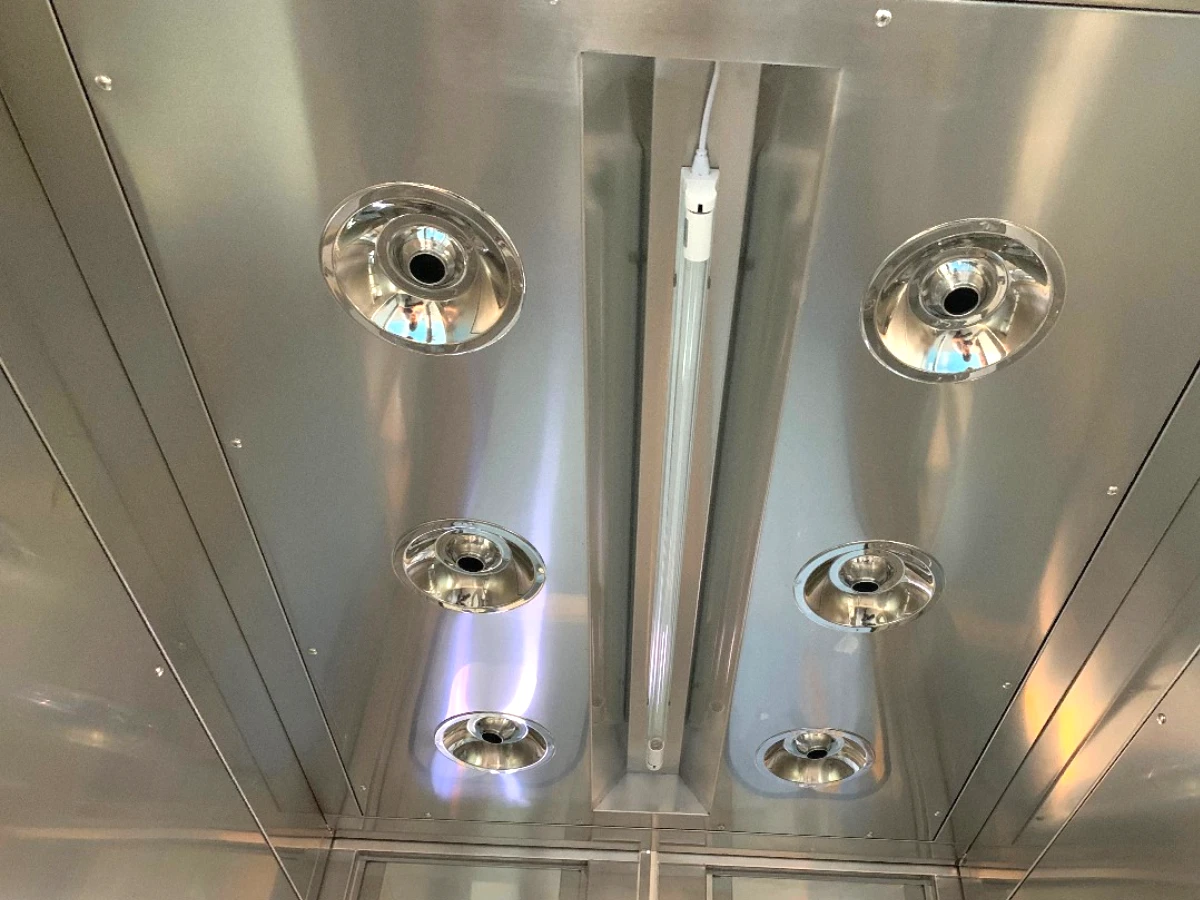

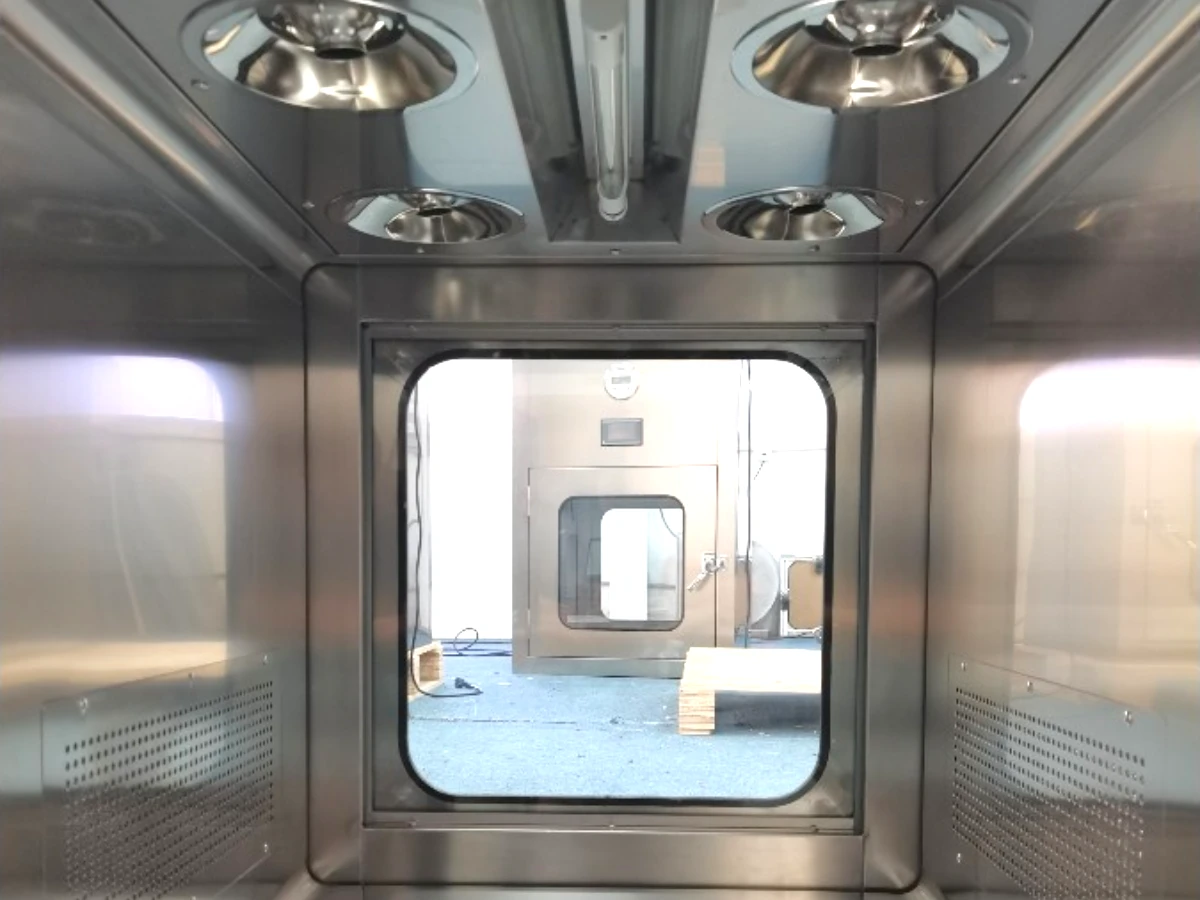

Stainless steel nozzles provide uniform high velocity airflow for effective particle removal.
Equipped with H13/H14 HEPA filters to provide clean air circulation during the air shower process.

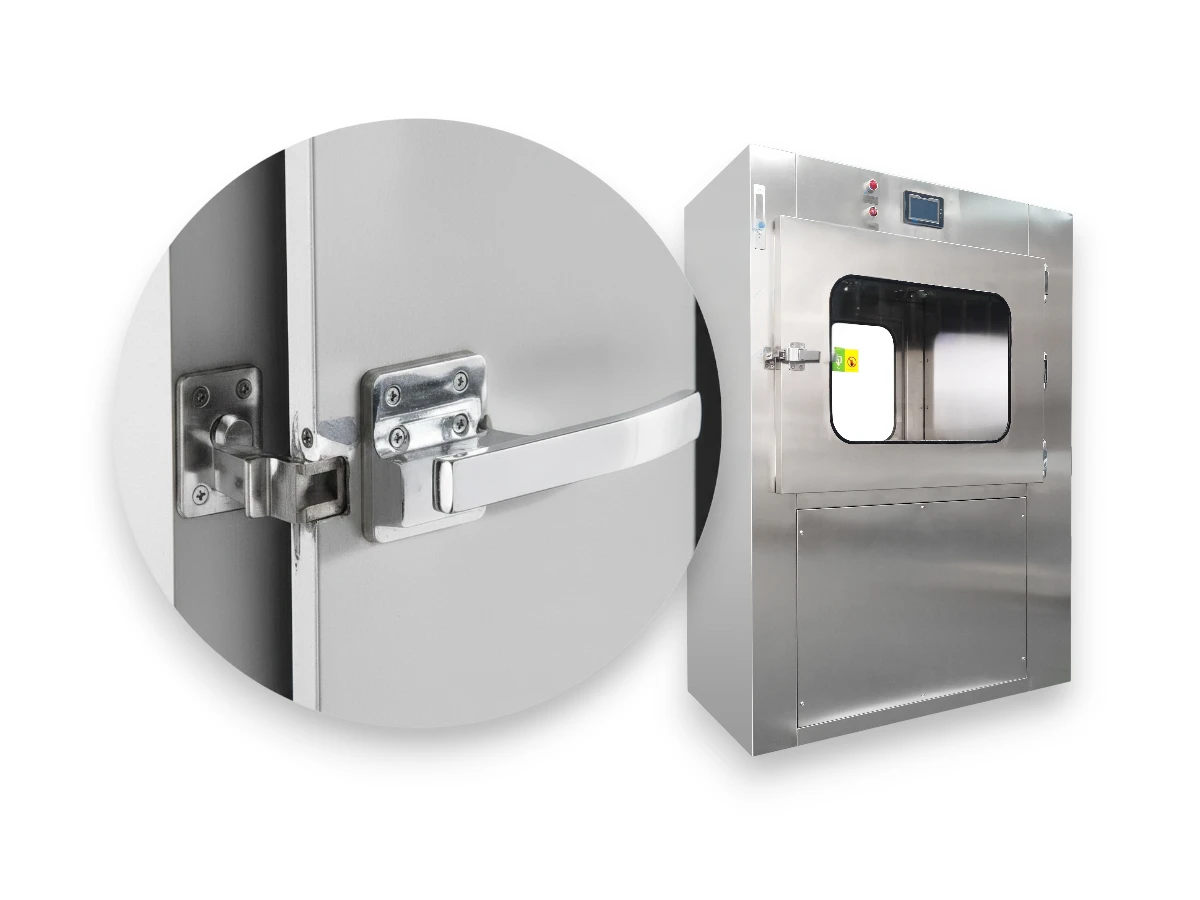

Mechanical or electronic interlocking prevents both doors from opening simultaneously.

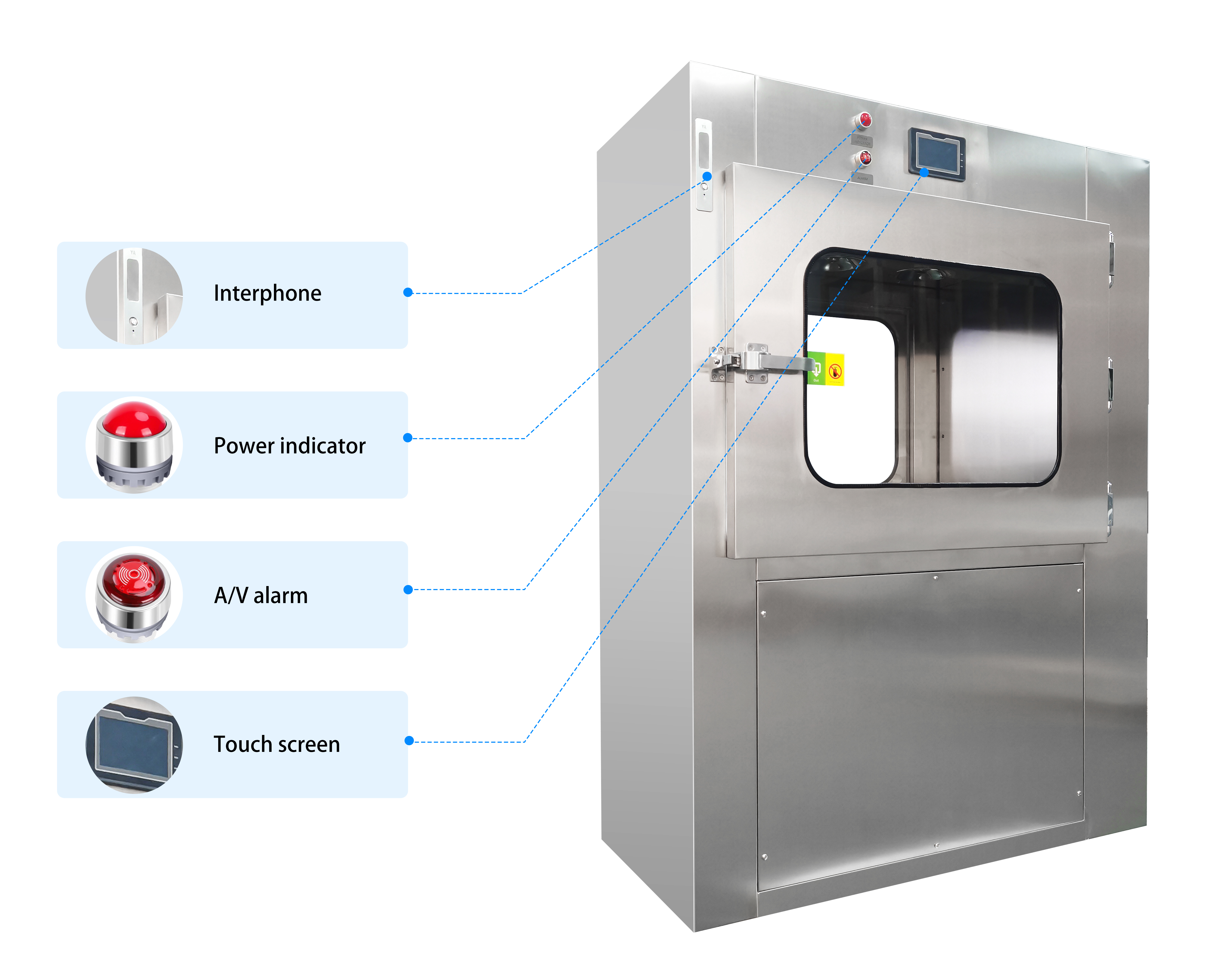

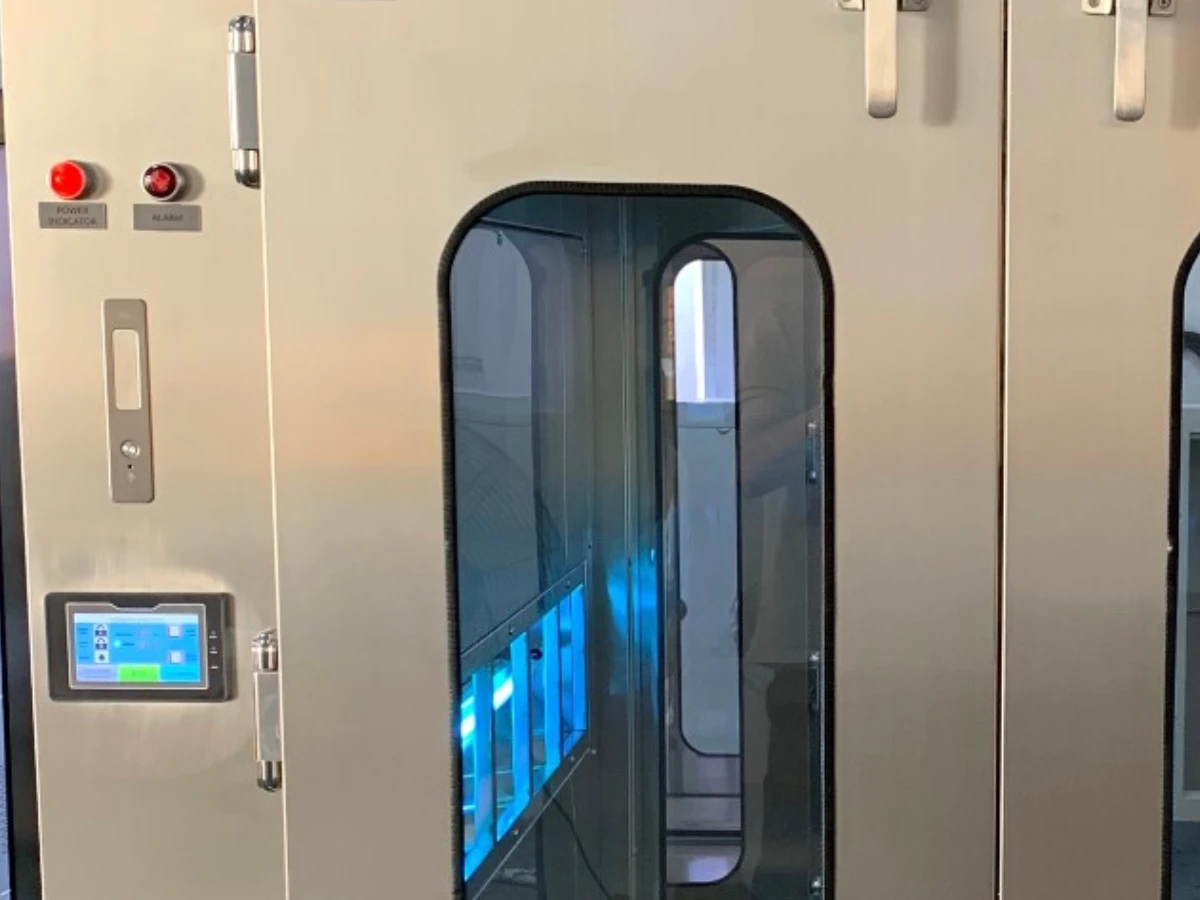

Optional UV sterilization, touchscreen, alarm and communication systems.

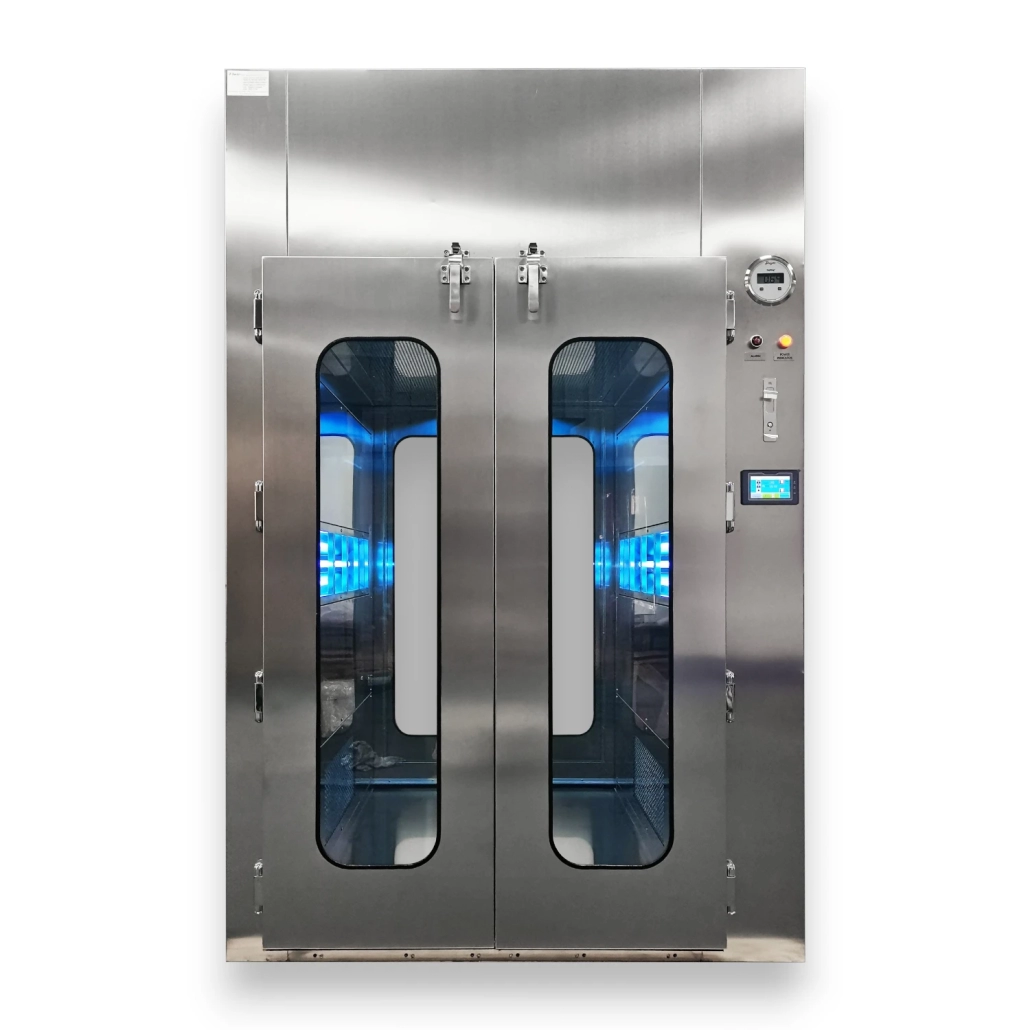

We provide customized air shower pass box solutions according to cleanroom layout, material transfer requirements and specific project specifications.

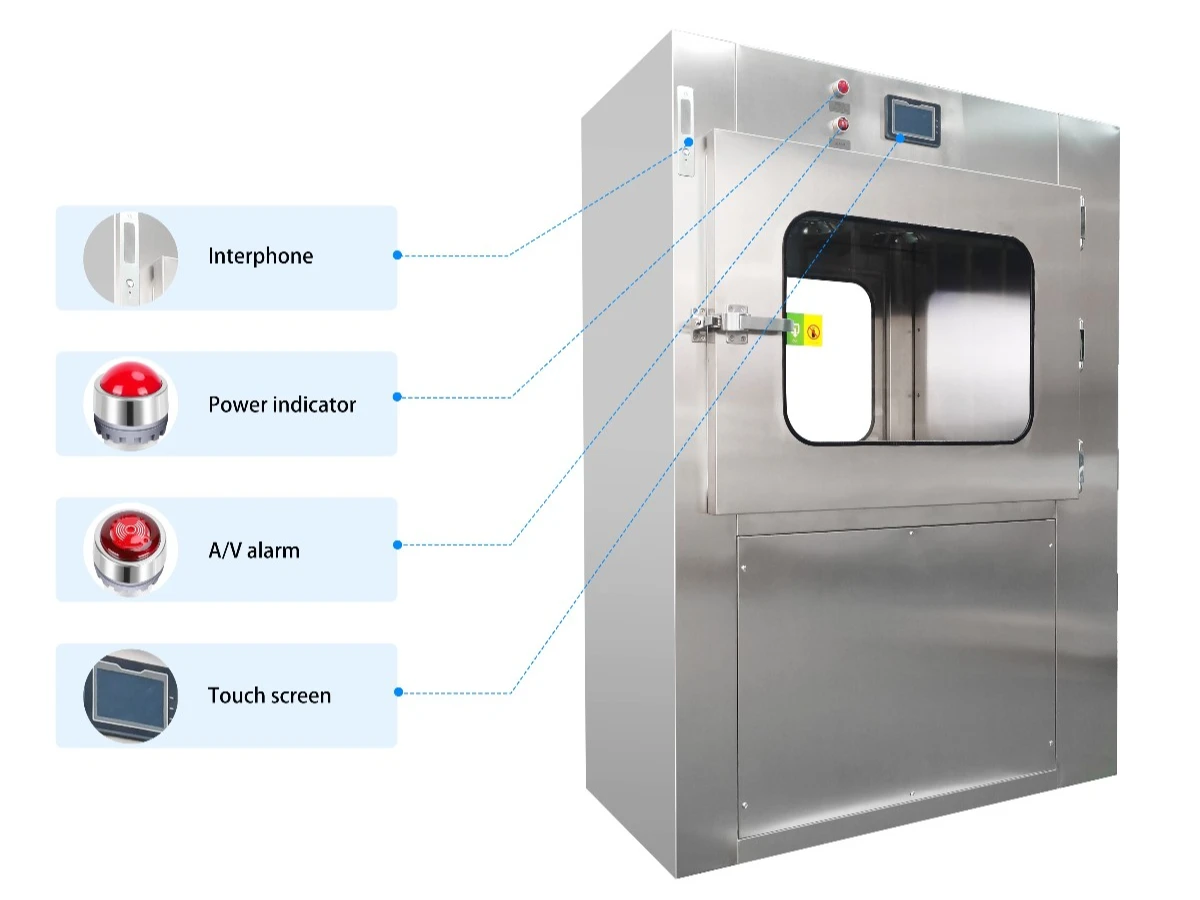

Custom Configurations Available:
Customized dimensions, airflow systems, control methods and additional functions are available to meet different cleanroom project requirements.
| Product Type | Air Shower Pass Box | |||
| Model No. | PB-600X600X600 | PB-660X700X600 | PB-800X800X800 | |
| ED
（W*D*Hmm) |
920W*600D*1800H | 980W*700D*1800H | 1120W*800D*2000H | |
| ID
（W*D*Hmm) |
600W*600D*600H | 660W*700D*600H | 800W*800D*800H | |
| AIR NOZZLE | Inner diameter
∅30mm,4pcs |
Inner diameter
∅30mm,4pcs |
Inner diameter
∅30mm,5pcs |
|
| Air velocity | 20-25m/s | 20-25m/s | 20-25m/s | |
| Airflow System | HEPA Filtered Air Shower | |||
| HEPA Filter | H13 / H14 | |||
| Material | optional choice: 1.All material power coated 2.Housing is power coated plate,inner wall polished SUS201/304plate 3.All material are polished SUS304/316 plate |
|||
| Interlocking | Mechanical (or Electromagnetic） | Power | AC220V,50/60Hz,75KW380V50HZ0.75KW | |
| Control System | PLC / Touch Screen Optional | |||
| Blowing | Start blowing button ,built-out timer，time is adjustable between 0~9999s，factory setting:15s | |||
| Installation | Wall Mounted | |||
| OEM/ODM are available, other customized sizes are welcome. | ||||
Custom dimensions, door configurations and control options are available according to cleanroom layout requirements.
Air Shower Pass Boxes are widely used in contamination-controlled environments including:
• Pharmaceutical GMP cleanrooms
• Biotechnology facilities
• Semiconductor manufacturing
• Medical device production
• Laboratory cleanrooms
• Electronics industries
Air shower pass boxes for pharmaceutical cleanrooms help maintain contamination control during material transfer.
Air shower pass boxes help reduce particle contamination in semiconductor and microelectronics manufacturing facilities.
Pass boxes with air shower provide controlled material transfer solutions for research laboratories and testing environments.
Find answers to frequently asked questions about our products. See the most common topics and more. Any other questions just feel free to contact us.
An air shower pass box is a cleanroom transfer device that uses HEPA-filtered high-speed airflow to remove particles from materials.
Static pass boxes only provide physical separation, while air shower pass boxes actively remove particles through filtered airflow.
Most air shower pass boxes use H13 or H14 HEPA filters depending on cleanliness requirements.
Yes. Dimensions, materials, control systems and additional functions can be customized.
Air shower pass boxes are widely used in pharmaceutical, biotechnology, semiconductor, medical device, laboratory and electronics industries where strict contamination control is required. They are commonly installed in GMP cleanrooms, ISO-classified cleanrooms and other controlled environments for safe material transfer.
