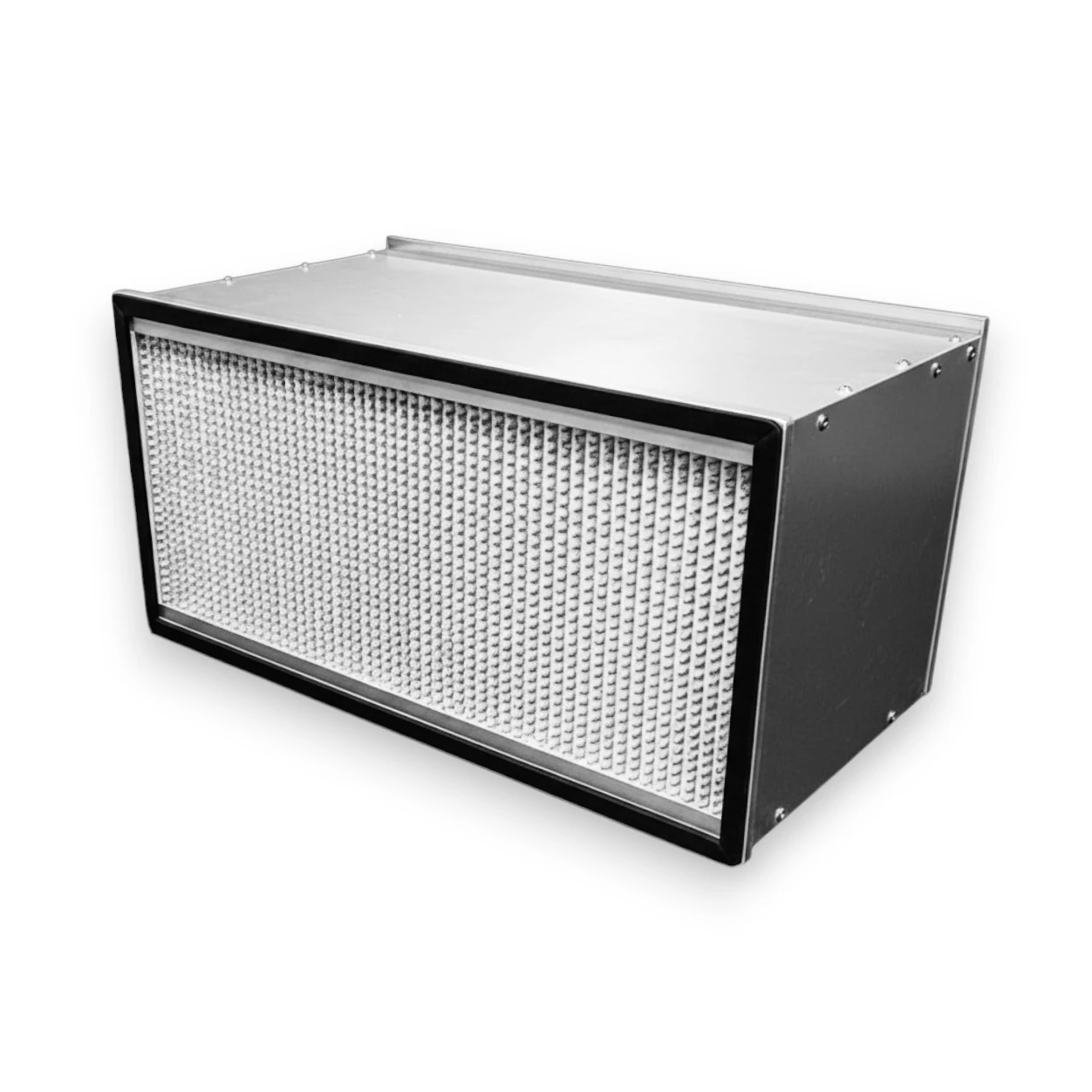

Deep Pleat HEPA Filters
High Capacity Separator Filter

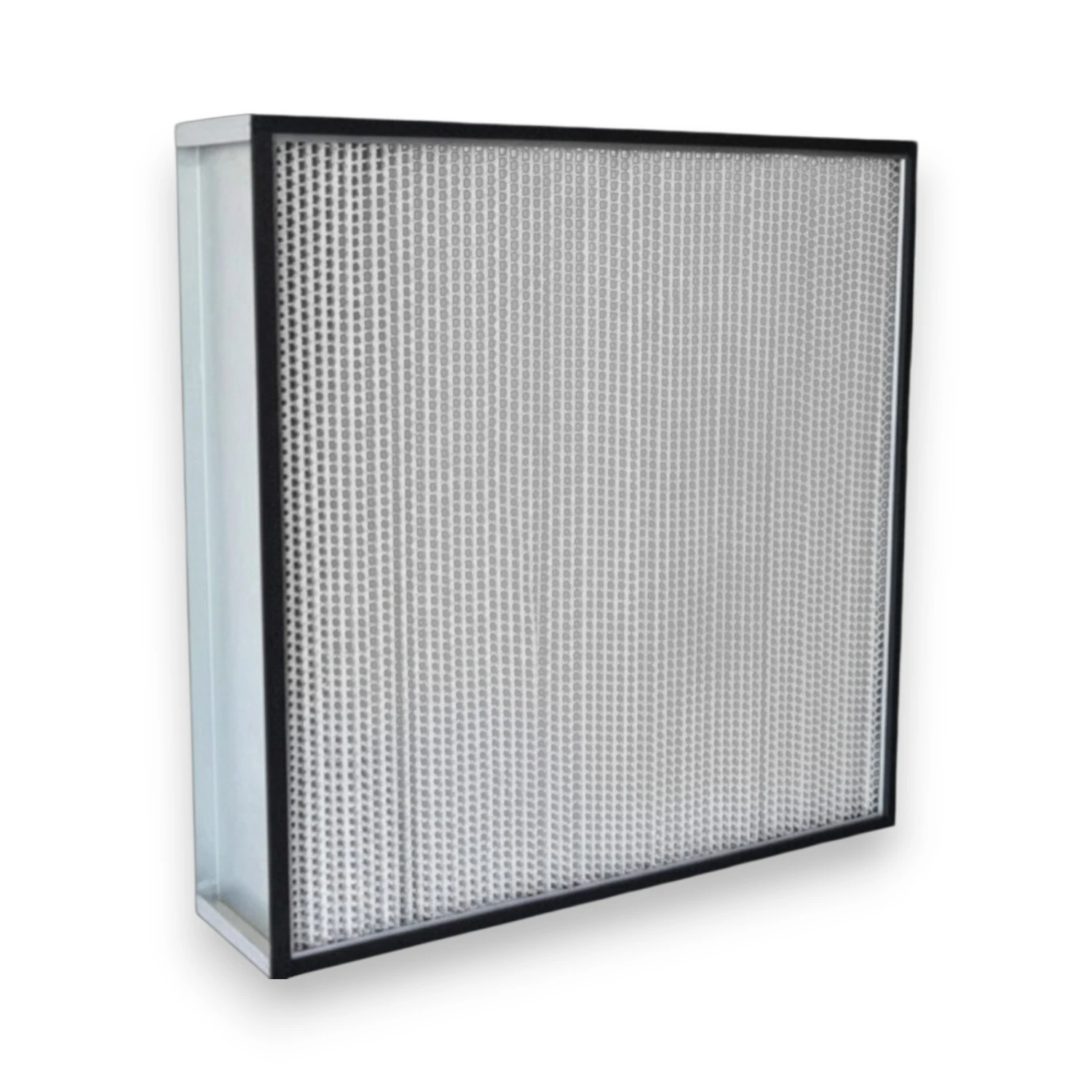

Pleated HEPA Filter

Flair Pleated HEPA Filter is designed for high-efficiency particulate filtration in cleanrooms, HVAC systems and other critical air filtration applications. Deep-pleated filter media and separator construction provide a large effective filtration area and stable airflow performance.

Available with different frame materials, efficiencies, dimensions and sealing options to meet various installation and air filtration requirements.

Key Benefit：

High-Efficiency Particle Filtration
Deep-Pleat, Large Filter Area
Aluminum Separator Construction
Custom Sizes & Sealing Options

SEND INQUIRY

Technical Parameters

Model No.	Outer Size(mm) W×H×D	Rated Airflow (m3/h)	Efficiency (%) H13	Initial Pressure (Pa)
DP-610/61D	610610292	2500	99.97%-99.99%	220Pa
DP-305/305T	305305150	600	99.97%-99.99%	220Pa
DP-610/61D	610610150	1200	99.97%-99.99%	220Pa

Technical Drawing

Frame	Stainless steel -Zinc/AL Galvanized sheet
Type	Box/single header/doubleheader
Media	Superfine fiberglass /PP
Separator	Aluminum foil/Paper
Sealant	Thermo resistant glue
Max. Temp.	100°C
Min. Humility	80°C

Applications

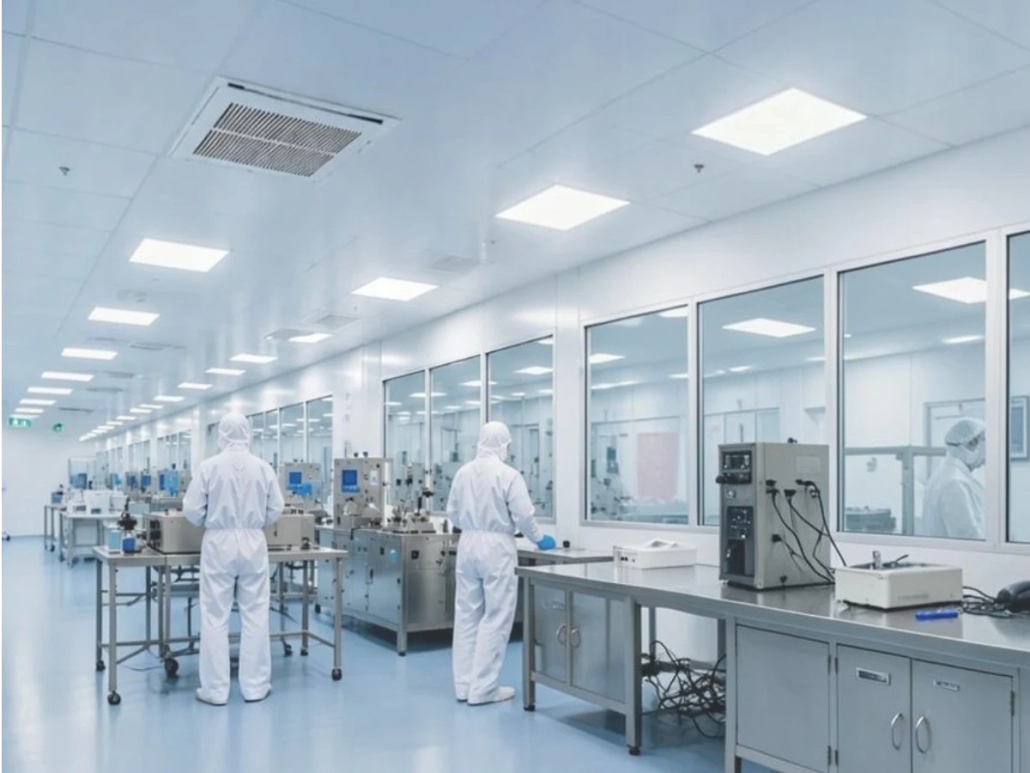

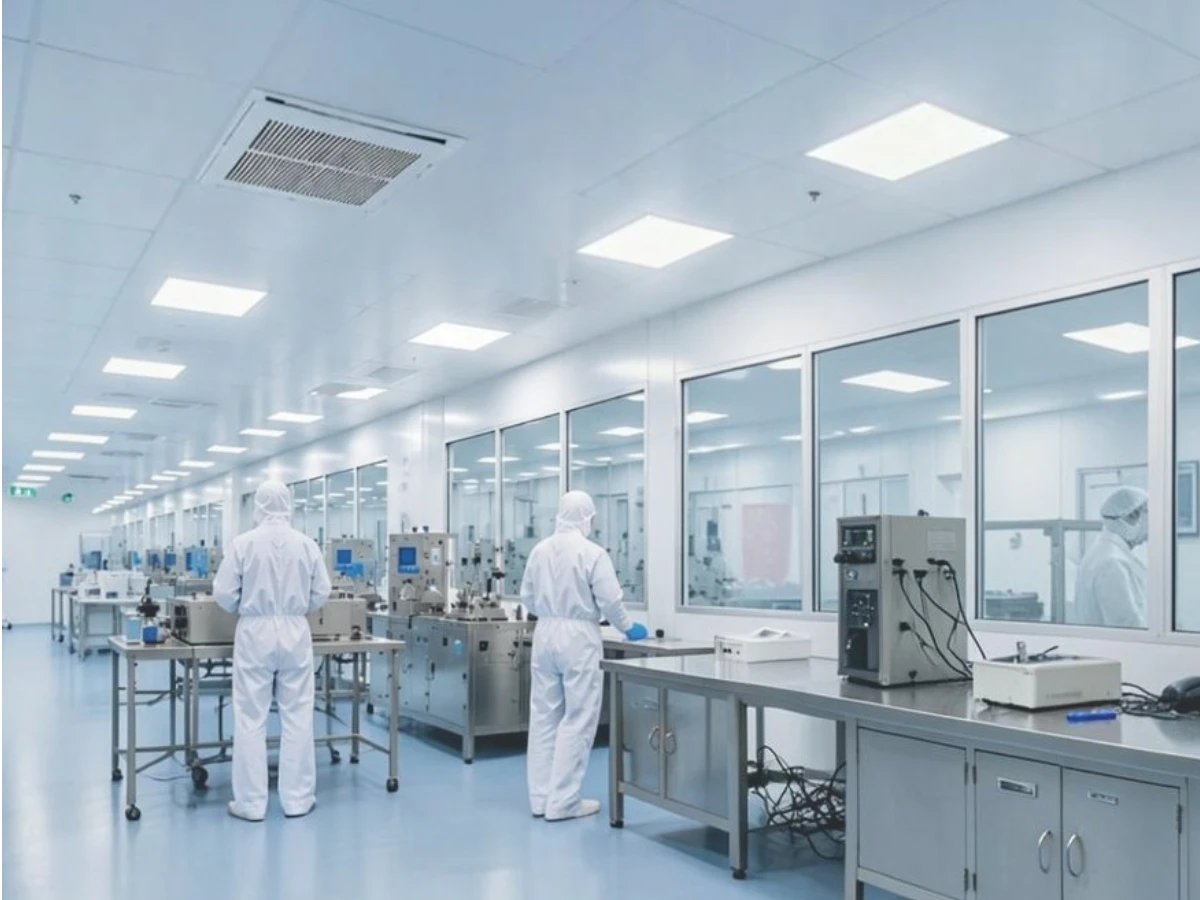

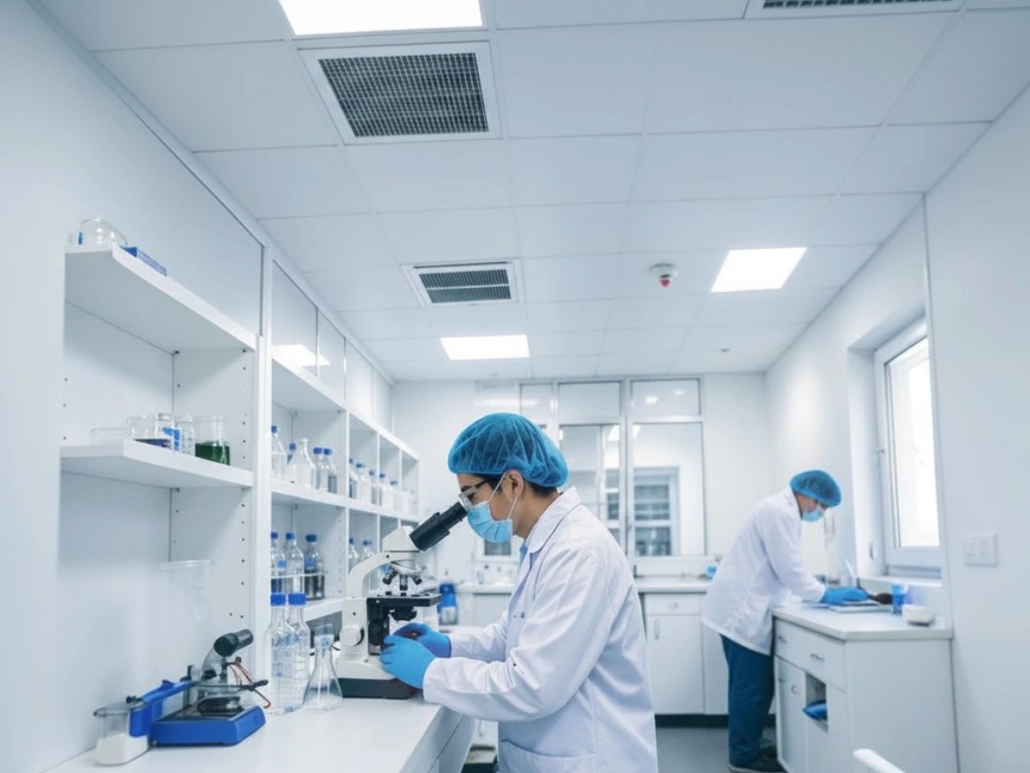

Pleated HEPA Filters are widely used in cleanrooms, healthcare facilities, pharmaceutical manufacturing, laboratories, food processing plants, and other critical environments requiring clean and contaminant-free air.
