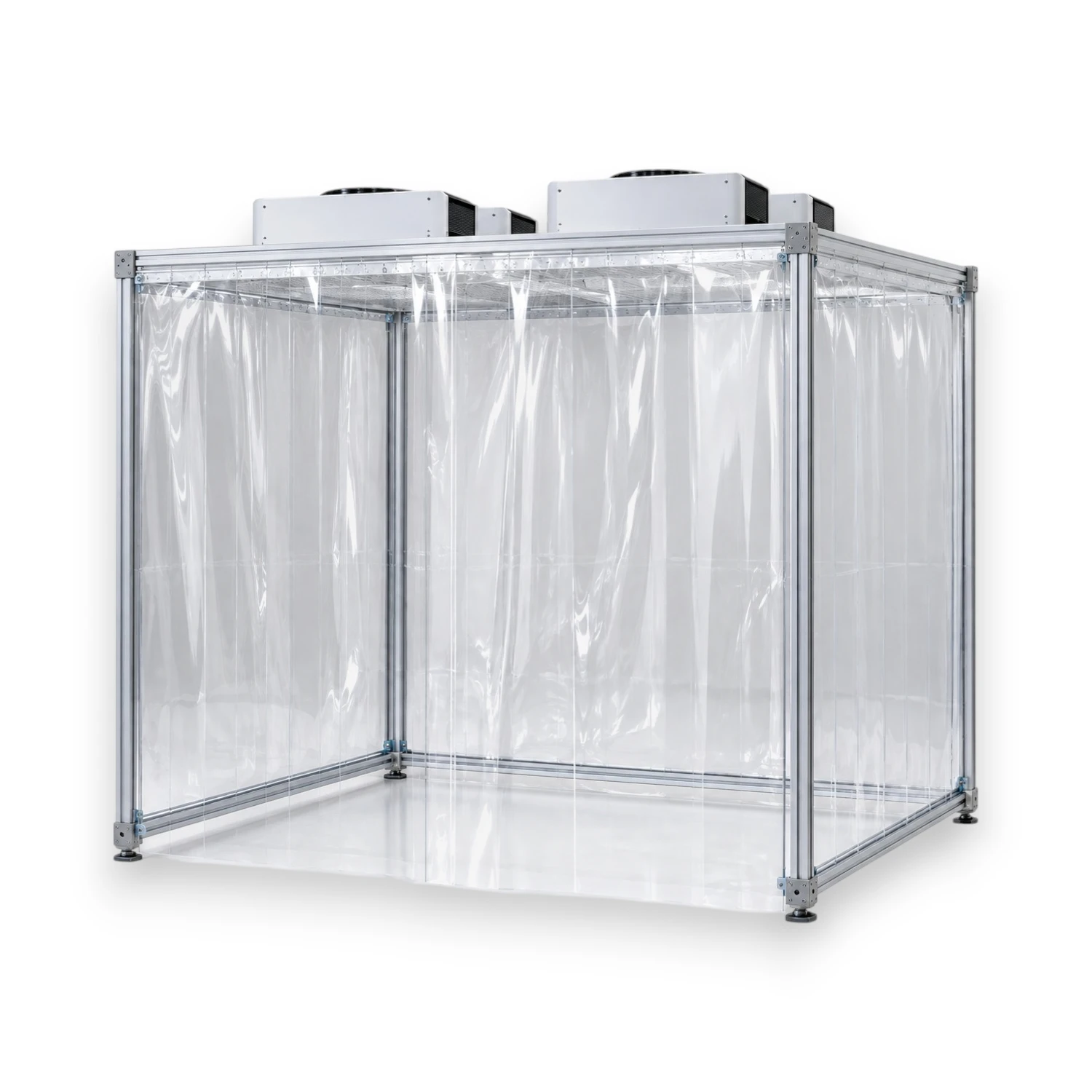

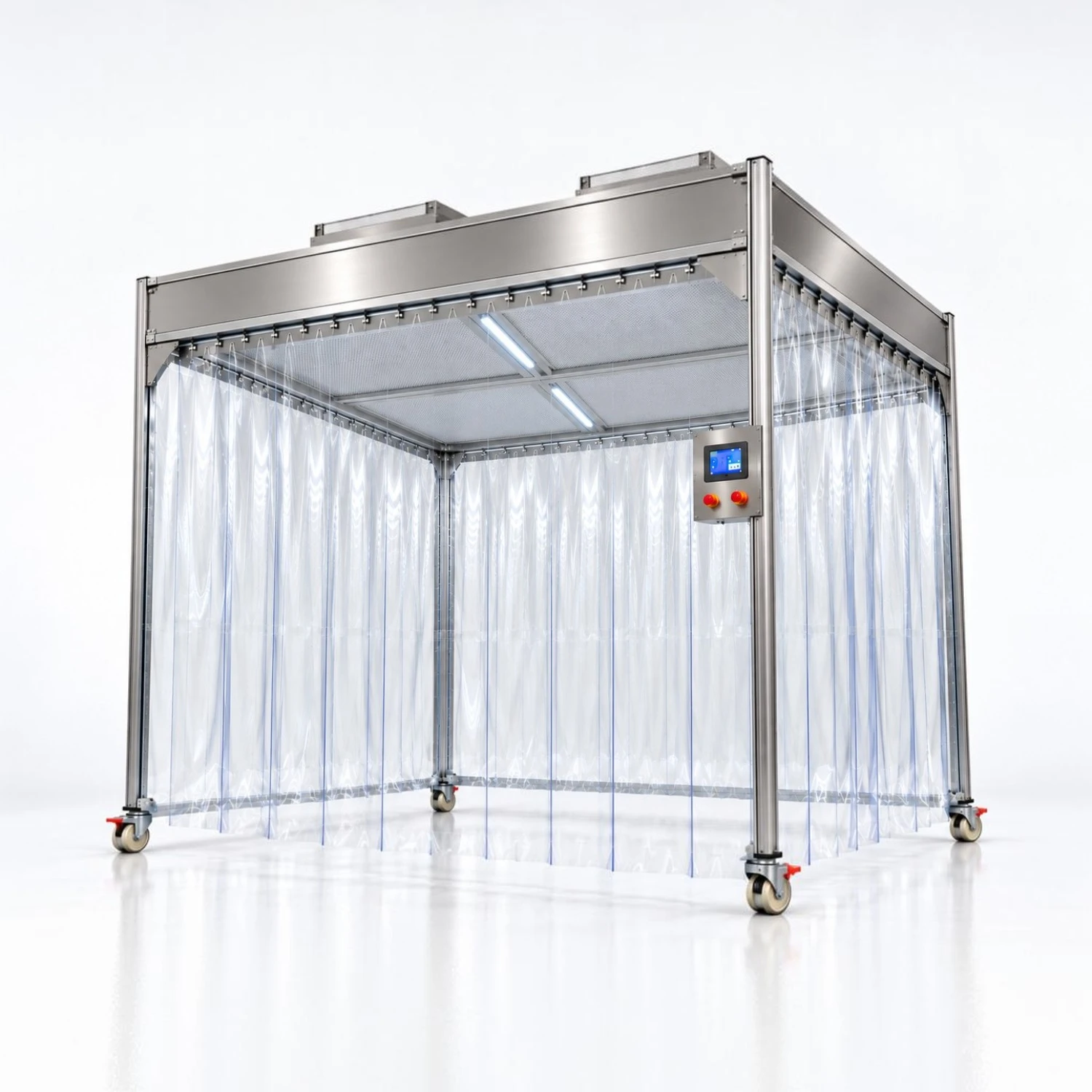

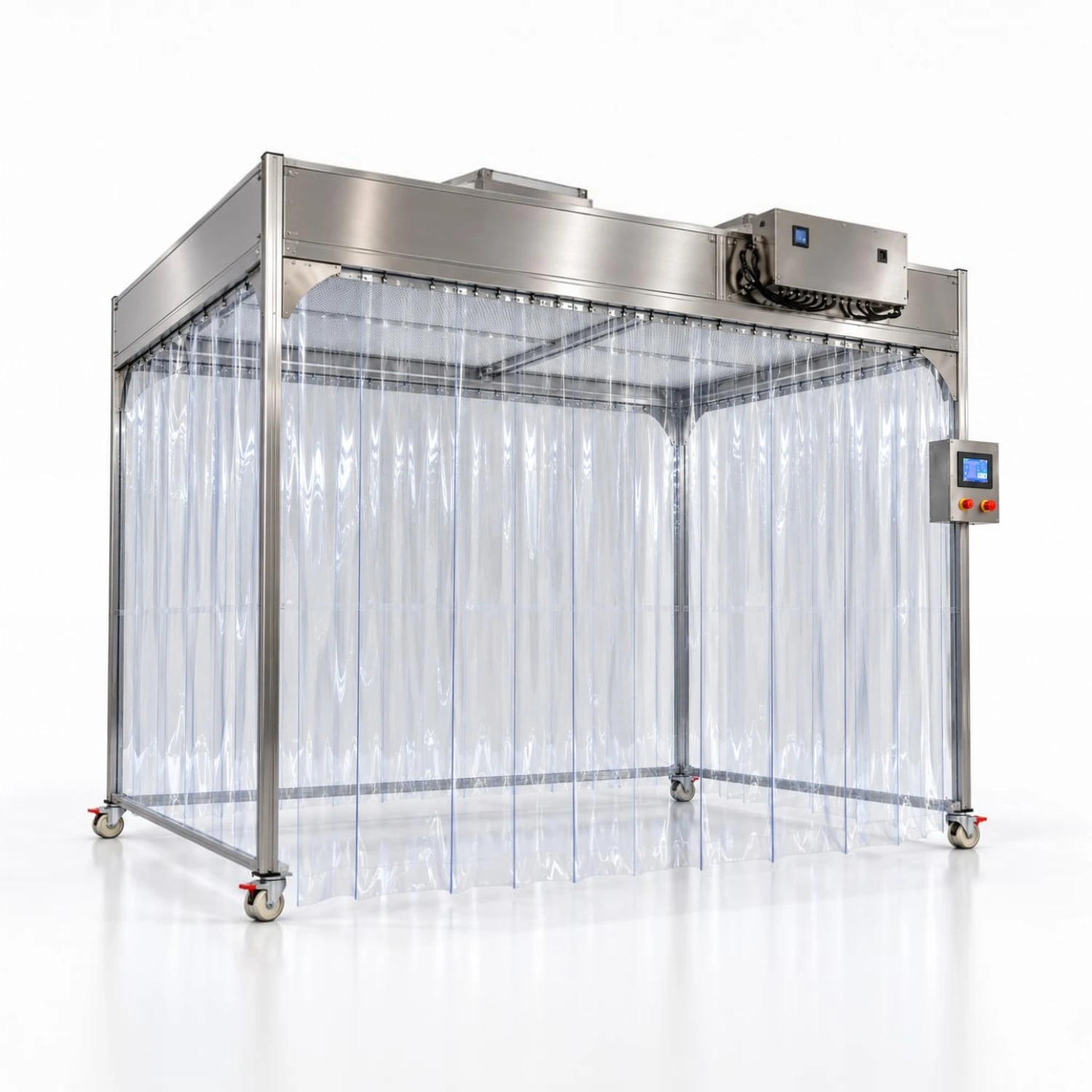

Soft Wall Clean Booth

Flair Soft Wall Clean Booth provides a flexible and cost-effective localized clean environment using ceiling-mounted FFUs, a modular frame and transparent PVC curtains.

Compared with a hard wall clean booth, the lightweight modular design enables faster installation, easier relocation and flexible expansion for changing production layouts and contamination-sensitive processes.

Key Benefits:

Fast Installation & Relocation
Flexible Modular Expansion
Cost-Effective Clean Air Solution

REQUEST A CUSTOM SOLUTION

ISO Class 5–8*

Cleanliness Level

HEPA / ULPA

Filtration

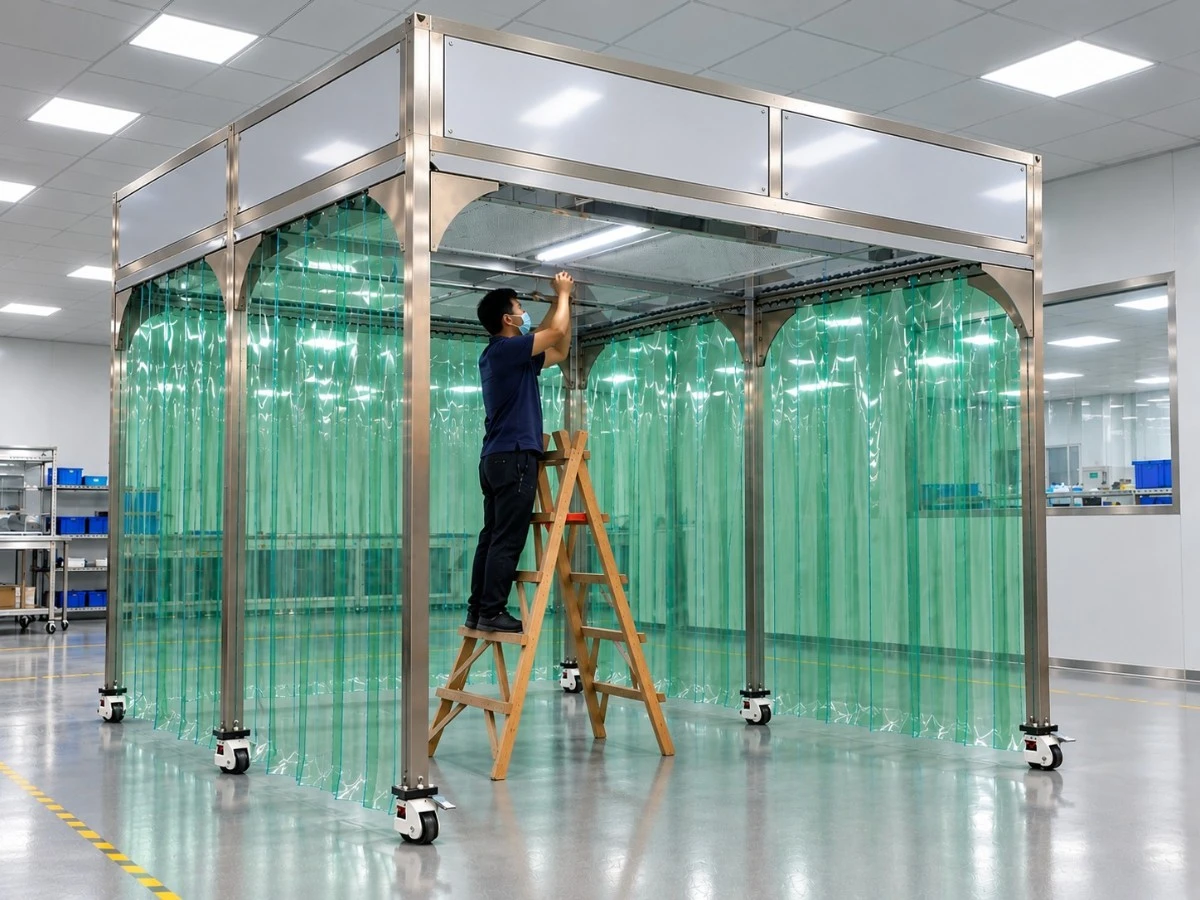

Modular Design

Flexible Expansion

PVC / ESD PVC

Curtain Options

FFU System

Air Supply

*Actual cleanliness performance depends on booth size, FFU coverage, airflow design and operating conditions.

Why Choose a Soft Wall Clean Booth?

Designed for projects that require flexible clean-zone protection without the complexity of a permanent rigid-wall enclosure.

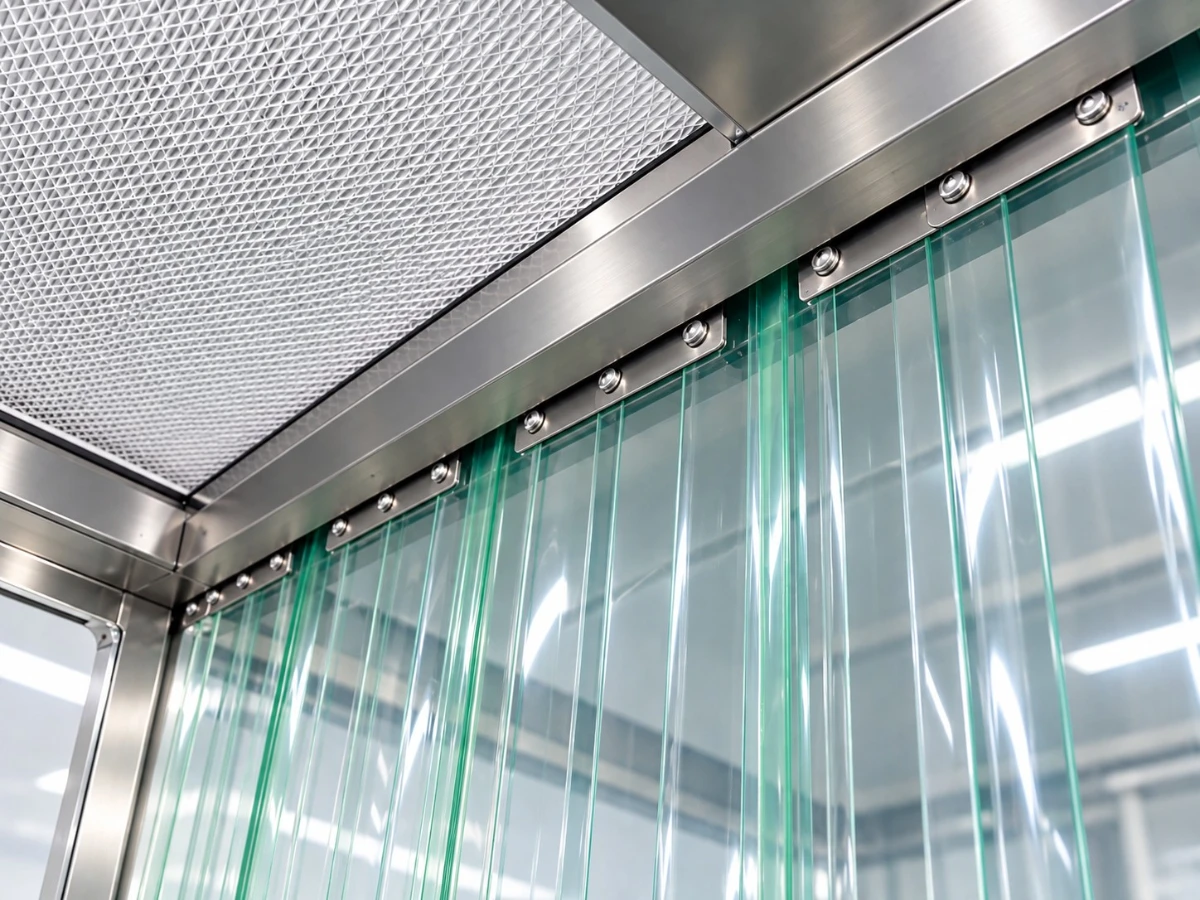

Flexible Soft Wall Enclosure

Transparent PVC curtains create a lightweight enclosure while maintaining visibility and convenient access to the controlled clean zone.

Cost-Effective Solution

A simplified curtain enclosure helps reduce structural, installation and modification costs compared with rigid-wall cleanroom systems.

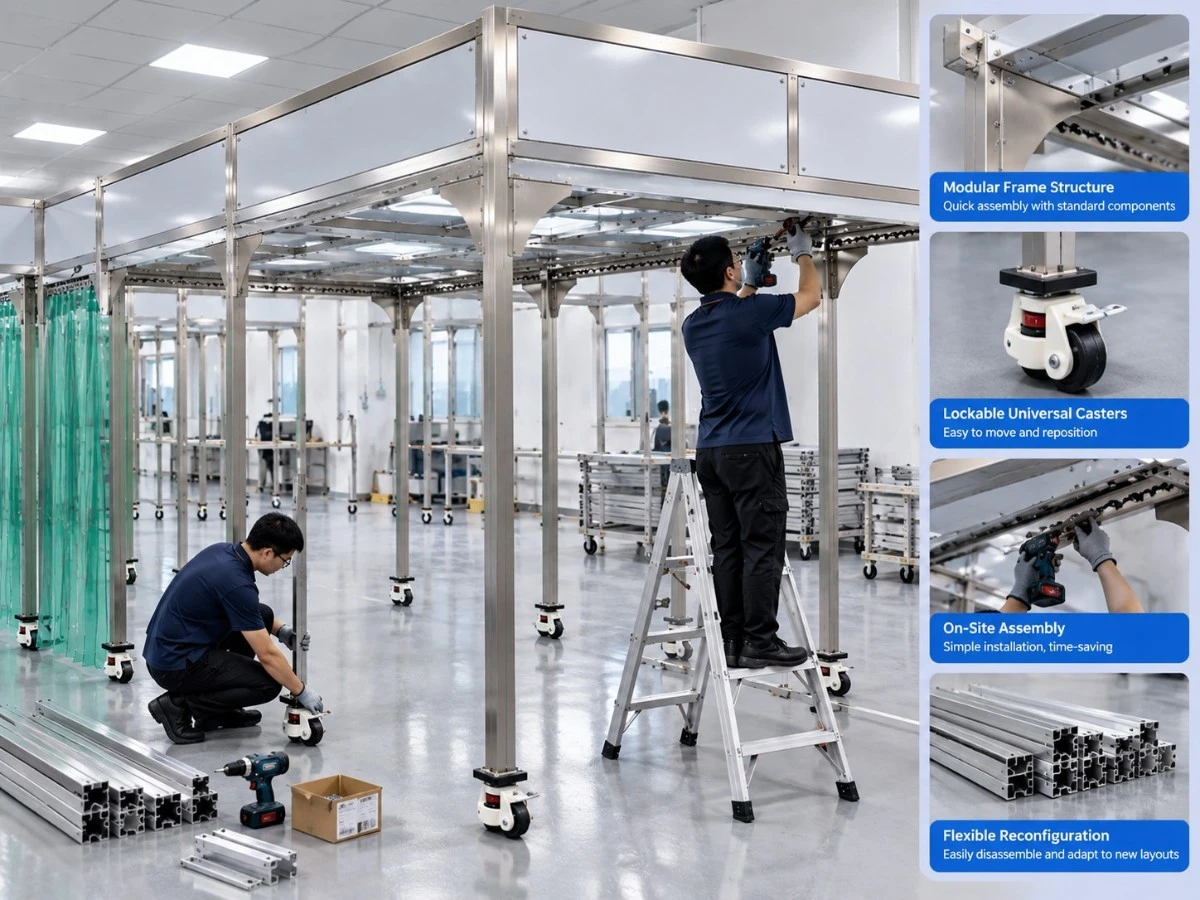

Fast Installation & Relocation

Modular framing and flexible curtains allow faster assembly, disassembly and relocation when production layouts change.

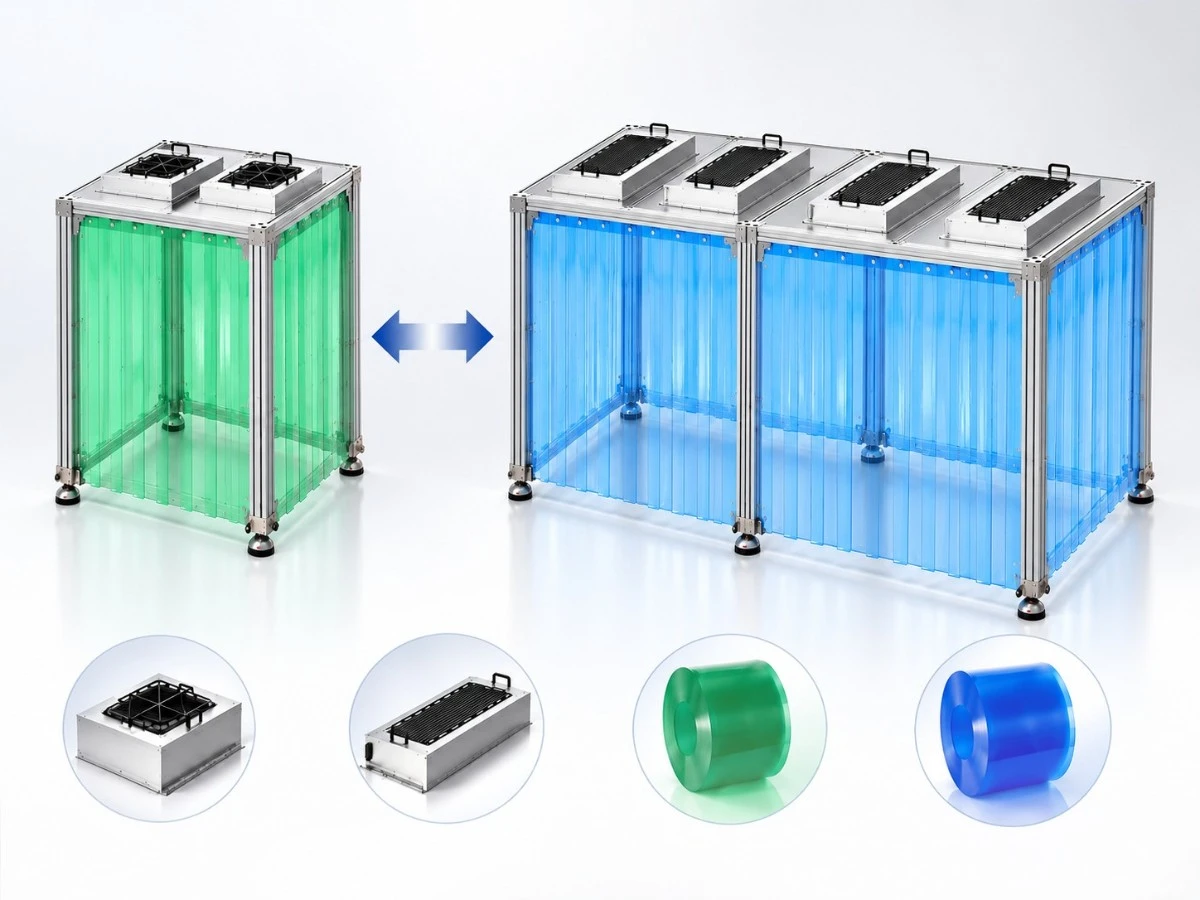

Flexible Expansion

Booth dimensions, FFU quantity and curtain configuration can be adapted as clean-area requirements grow or change.

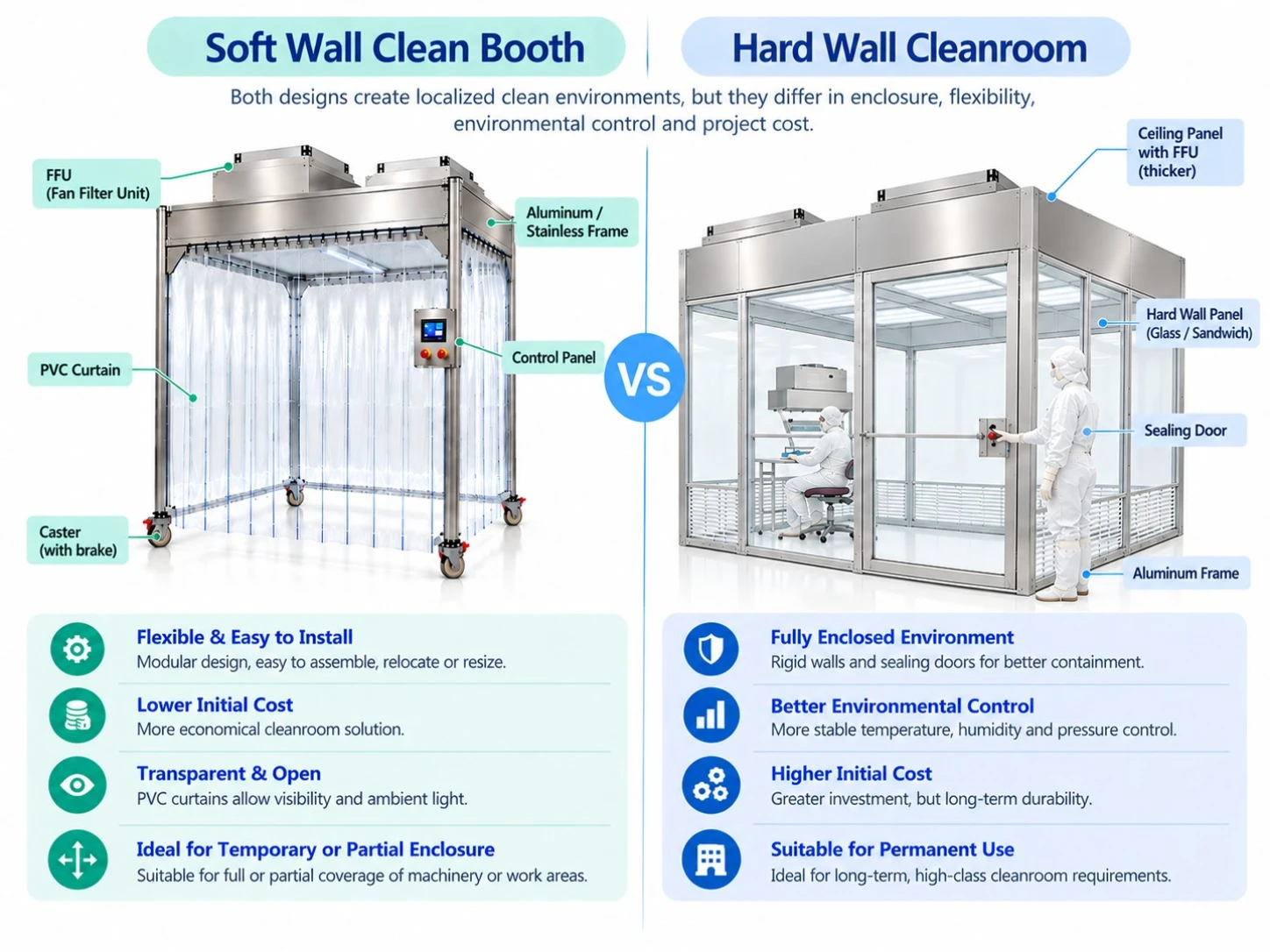

Soft Wall vs Hard Wall Clean Booth

Compare enclosure design, installation, flexibility and environmental control to select the right clean booth for your project.

Comparison	Soft Wall Clean Booth	Hard Wall Clean Booth
Enclosure	PVC / ESD PVC curtains	Rigid wall panels
Installation	Faster & simpler	More engineered
Relocation	Easy	Limited
Expansion	Highly flexible	Modular
Environmental Control	Localized clean-air control	More stable enclosure control
Project Cost	Generally lower	Generally higher
Best For	Flexible / changing clean zones	Permanent controlled clean areas

Which One Should You Choose?

Choose Soft Wall for fast installation, relocation, flexible expansion and lower project cost.

Choose Hard Wall for permanent installations requiring greater enclosure stability and environmental control.

REQUEST A CUSTOM SOLUTION

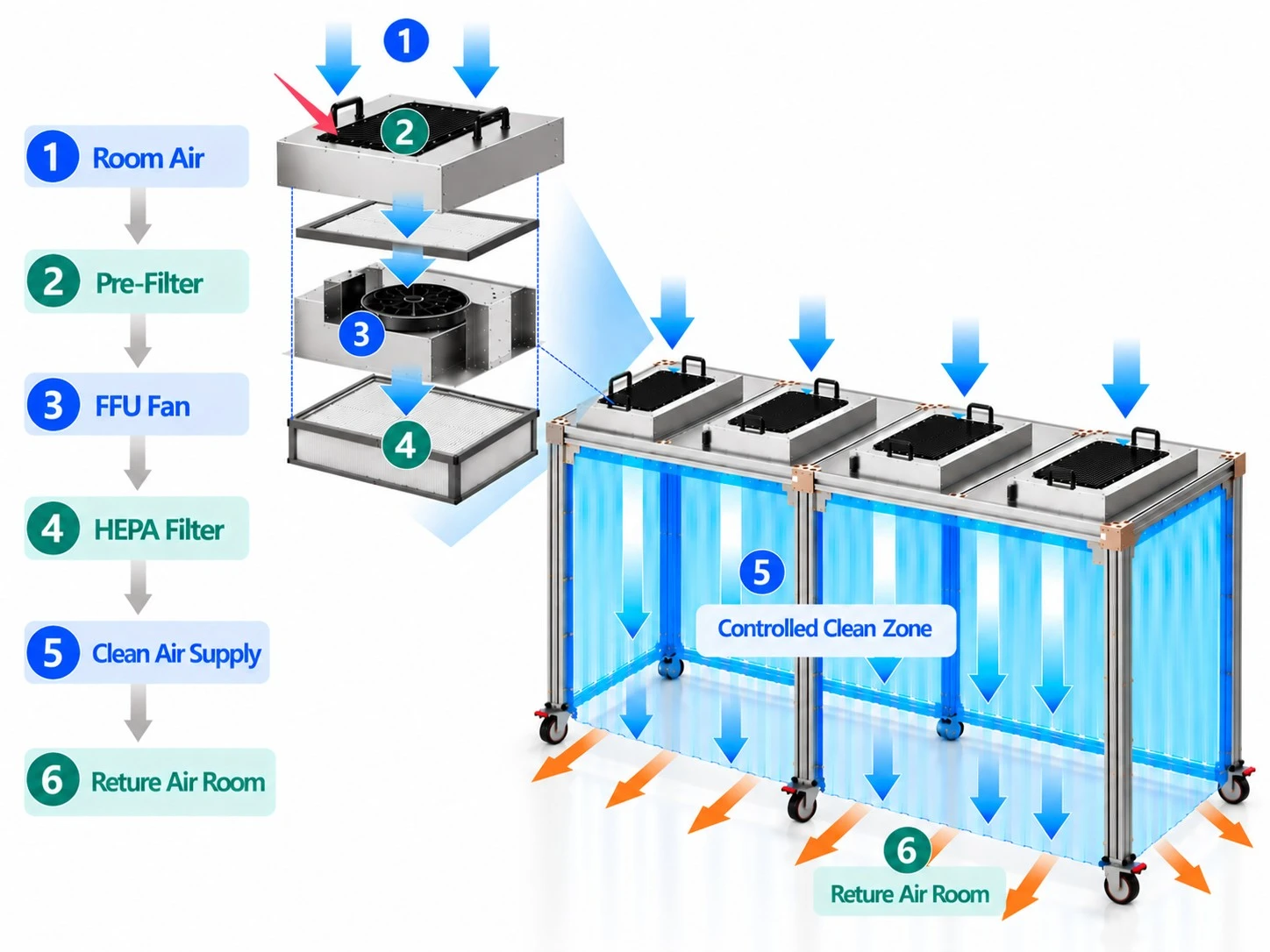

How Does a Soft Wall Clean Booth Work?

① Room Air Intake
Room air is drawn into the ceiling-mounted FFUs.

② Pre-Filtration & HEPA Filtration
Air passes through the pre-filter and HEPA filter to remove airborne particles.

③ Vertical Clean Air Supply
Filtered air flows downward into the enclosed clean working zone.

④ Air Return
Air exits beneath the PVC curtains and returns to the surrounding room.

Continuous filtered airflow helps dilute and remove airborne particles from the controlled zone.

Technical Specifications

Specification	Typical / Custom Configuration
Cleanliness Class	ISO Class 5–8, project dependent
Booth Dimensions	Customized
Frame Material	Aluminum profile / Stainless steel
Curtain Material	Transparent PVC / ESD PVC optional
Filtration	HEPA / ULPA optional
FFU Quantity	Based on booth size and cleanliness requirement
Airflow Pattern	Vertical filtered airflow
Lighting	LED
Power Supply	Customized
Installation	Modular assembly

Soft Wall Clean Booth Configuration

Booth Size
Custom W × D × H
Frame
Aluminum Profile / Stainless Steel
Curtain
PVC / ESD PVC
FFU Layout
Customized Quantity & Ceiling Coverage
Mobility
Fixed / Caster-Mounted
Control
FFU & Lighting Control

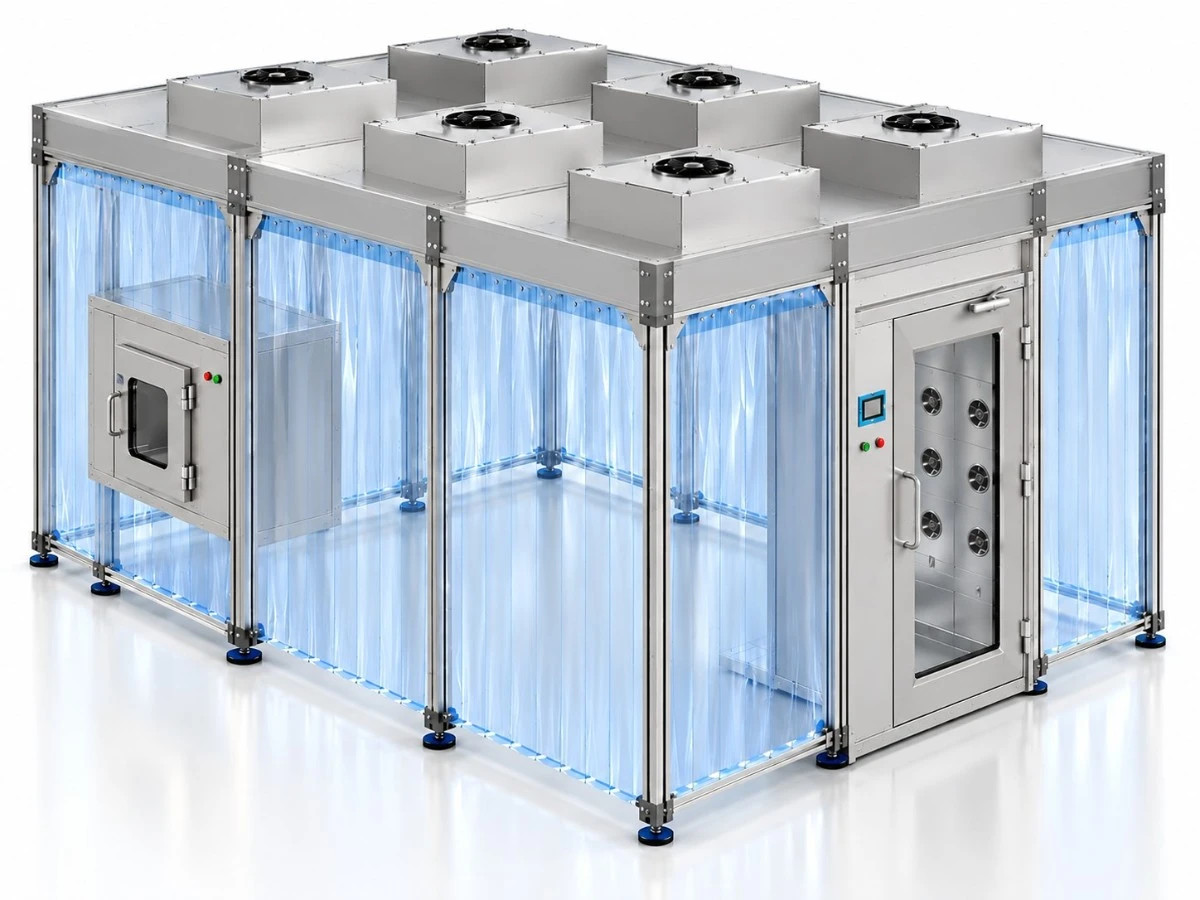

Optional Supporting Equipment
Pass Box for material transfer · Air Shower for personnel entry

Configurations can be designed for full-area clean zones or localized enclosure around production equipment and critical processes.

REQUEST A CUSTOM CONFIGURATION

Applications

Soft wall clean booths provide flexible localized clean environments for contamination-sensitive manufacturing, research and temporary clean-zone applications.

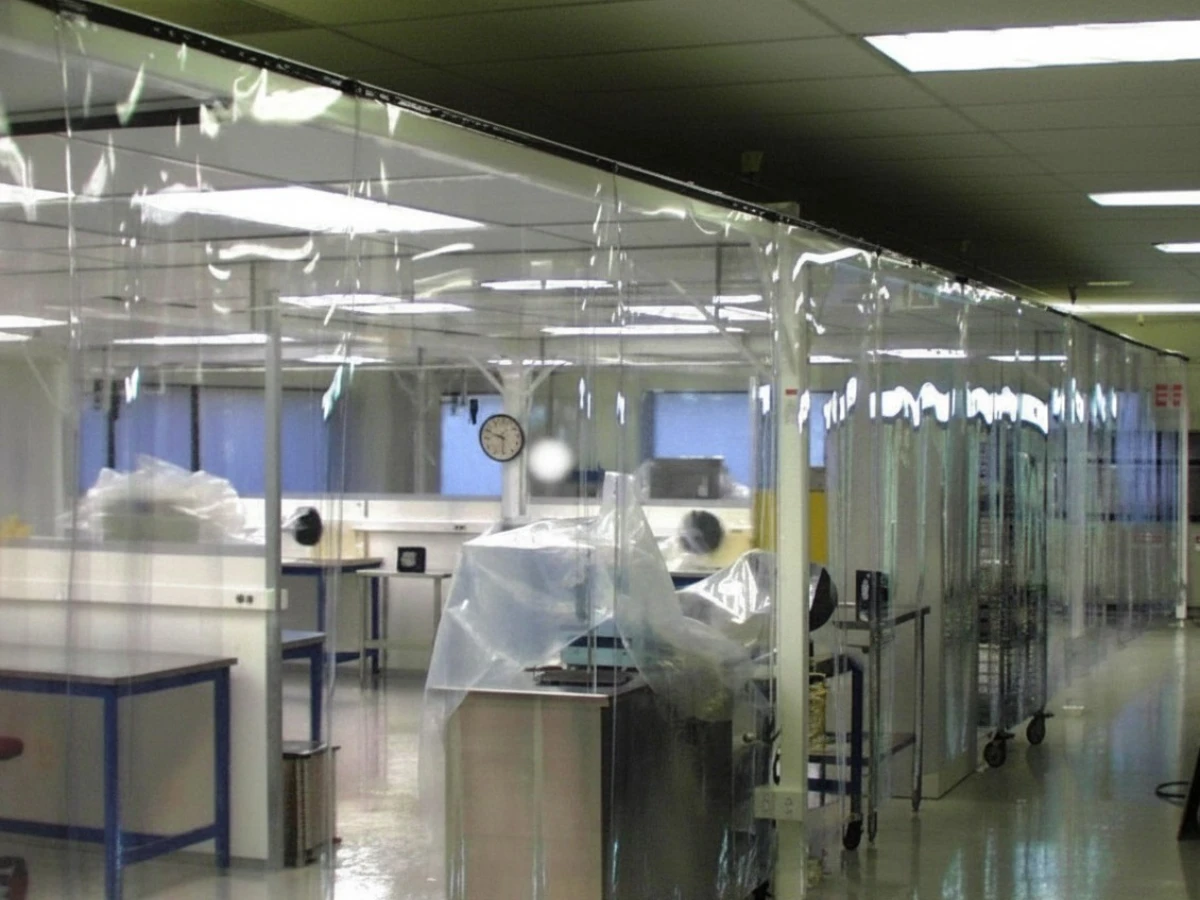

Soft wall clean booth for Electronics & Semiconductor

Electronics & Precision Assembly

Flexible clean-air protection for sensitive components, assembly and inspection processes.

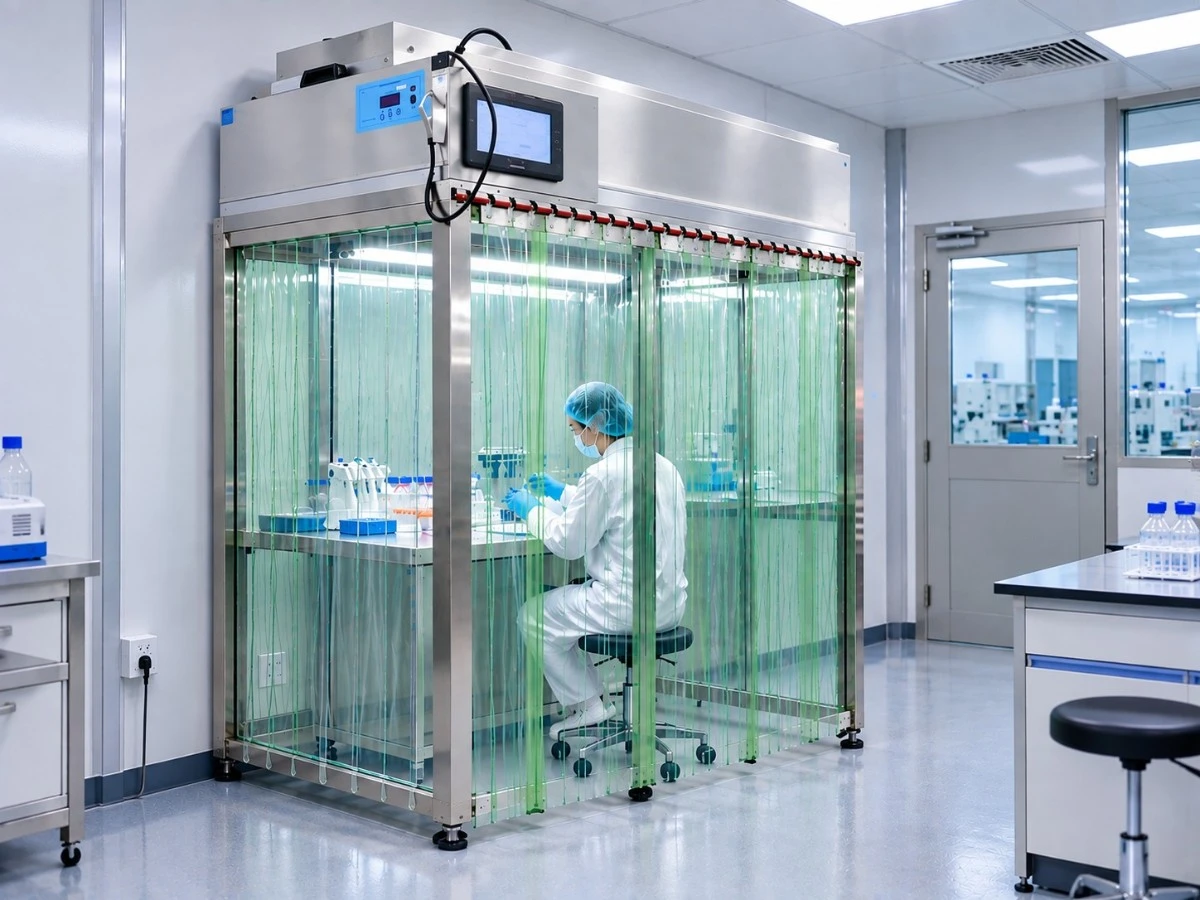

Laboratory & Research

Localized clean environments for non-hazardous sample handling, testing and research operations.

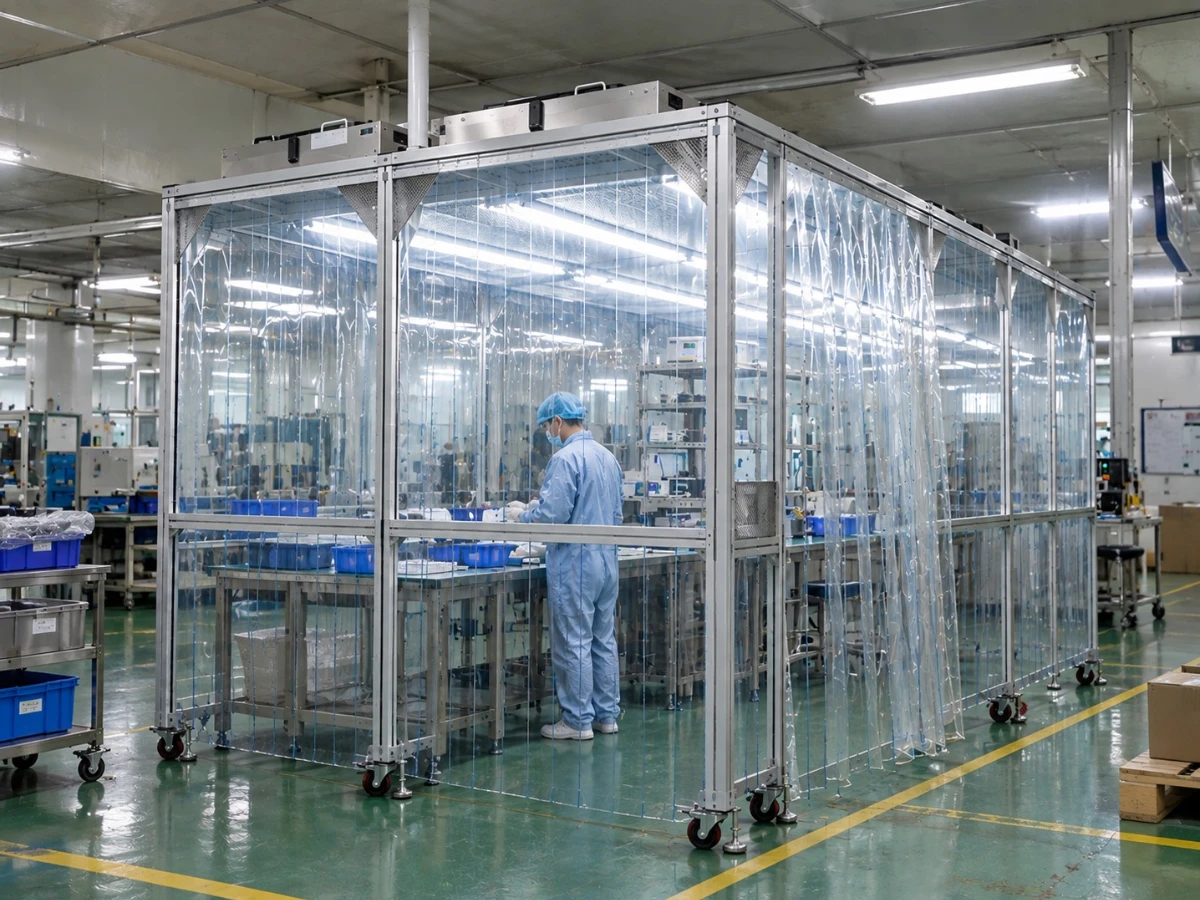

soft wall clean booth Expandable Clean Areas

Temporary & Expandable Clean Areas

Ideal for production areas requiring quick installation, relocation or future clean-zone expansion.

FAQs

Common questions about cleanliness levels, curtain materials, FFU configuration, relocation and selecting between soft wall and hard wall clean booths.

1. What is a soft wall clean booth?

A soft wall clean booth is a modular clean-air enclosure designed to create a localized controlled environment within an existing indoor space. It typically consists of a modular aluminum or stainless steel frame, ceiling-mounted fan filter units (FFUs), HEPA or ULPA filtration, and flexible PVC curtains.

Filtered air is supplied vertically into the enclosed working zone, while return air exits through the lower curtain openings. Soft wall clean booths are commonly used for contamination-sensitive manufacturing, laboratory operations and temporary or expandable clean areas where fast installation and flexible configuration are required.

2. What is the difference between a soft wall and hard wall clean booth?

The main difference is the enclosure. Soft wall clean booths use flexible PVC curtains, making them lighter, easier to install, relocate and expand. Hard wall clean booths use rigid panels and generally provide greater enclosure stability and more controlled environmental separation.

Soft wall designs are typically preferred for flexible or changing production layouts, while hard wall systems are better suited to permanent installations requiring greater environmental control.

3. What cleanliness class can a soft wall clean booth achieve?

Soft wall clean booths can typically be designed for ISO Class 5 to ISO Class 8 clean environments, depending on the booth size, FFU quantity, filter efficiency, airflow rate, ceiling coverage and surrounding room conditions.

Higher cleanliness levels generally require greater HEPA-filtered ceiling coverage and sufficient clean-air changes. Because each project has different dimensions and operating conditions, the required FFU quantity and layout should be determined according to the target cleanliness class and application rather than using a fixed configuration.

4. Can a soft wall clean booth be relocated or expanded?

Yes. Relocation and expansion are two of the main advantages of a soft wall clean booth. Its modular frame and flexible curtain enclosure allow the booth to be modified more easily than a permanent rigid-wall cleanroom.

Depending on the original design, the booth can be disassembled and relocated, or expanded by adding frame sections, curtains and additional FFUs. Caster-based mobile configurations are also available for applications requiring more frequent movement.

For future expansion, it is recommended to consider the expected booth size, FFU capacity and electrical requirements during the initial design stage.

5. What curtain materials are available?

Standard soft wall clean booths typically use transparent PVC curtains, while ESD PVC curtains are available for applications requiring electrostatic control, such as electronics and precision assembly areas.

Curtain thickness, transparency, overlap and hanging configuration can be selected according to the application. The flexible curtains provide physical separation from the surrounding environment while allowing convenient personnel or material access and visibility into the clean working area.

Special curtain requirements can also be evaluated according to project conditions.

6. How many FFUs are required for a soft wall clean booth?

The required number of FFUs depends on the booth dimensions, target cleanliness class, FFU airflow capacity, ceiling coverage, internal equipment and process requirements. Therefore, there is no single fixed FFU quantity for all soft wall clean booths.

For higher cleanliness requirements, additional FFUs or increased ceiling coverage may be required to provide sufficient filtered airflow. Flair can determine the recommended FFU quantity and ceiling layout based on the required booth size, cleanliness class and application conditions.

For quotation and preliminary selection, customers can provide the W × D × H dimensions, target ISO class, application and available power supply.

Related Products

Room-Side Replaceable FFU (RSR FFU) — RSR FFU

Ducted ceiling Filter module — Ducted ceiling Module filter

standard fan filter unit — Standard Fan Filter Unit

hard wall clean booth — Hard wall clean booth

custom class100 Laminar flow hood trolley/cart — LFH mobile trolley/cart

mobile laminar flow hood — Mobile Laminar Flow Hood

Need a Custom Soft Wall Clean Booth?

Tell us your required booth dimensions, cleanliness class, application and power supply. Our engineering team will recommend the appropriate FFU quantity, curtain material and configuration.
