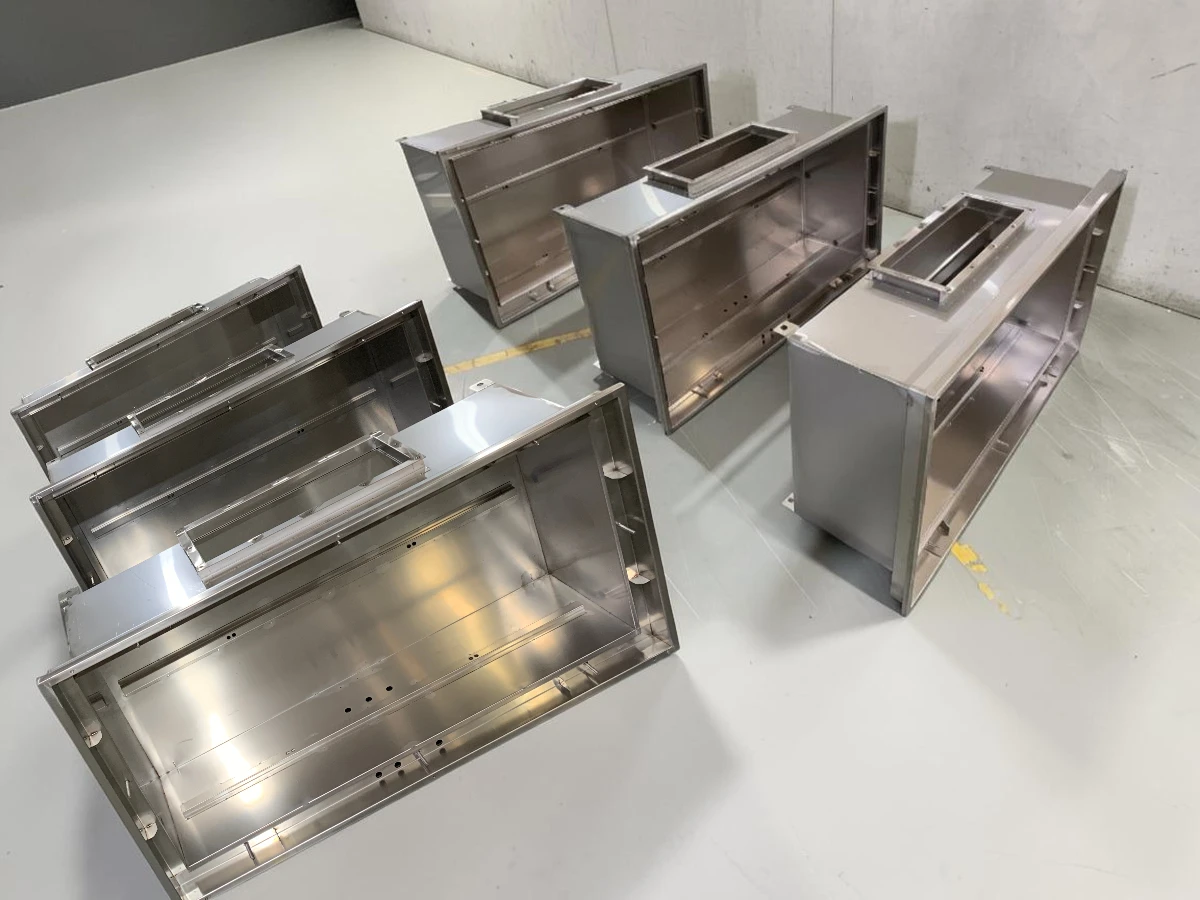

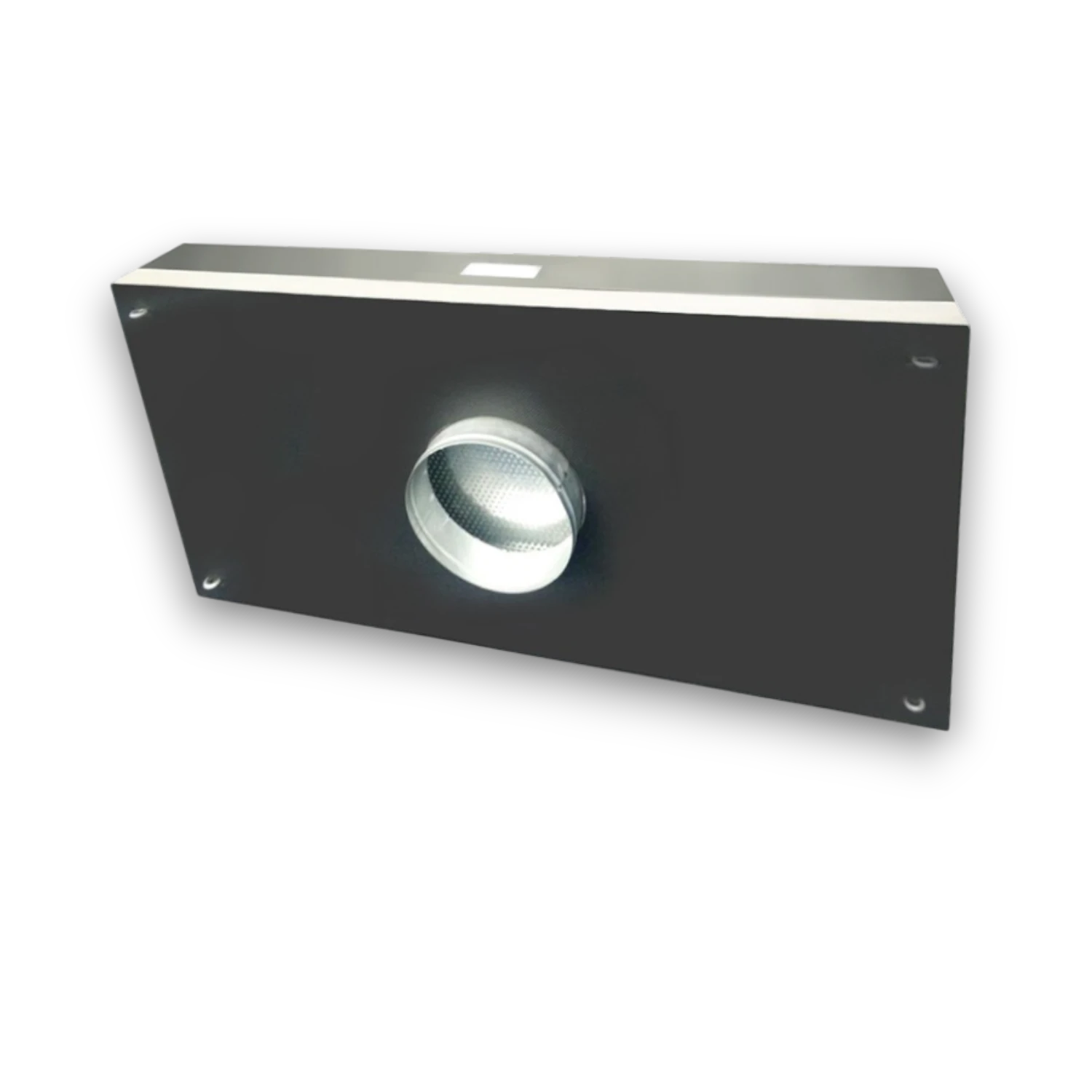

Ducted ceiling filter modules provide high-efficiency air purification for cleanrooms (pharma, medical, tech) with HEPA/ULPA filters, featuring lightweight aluminum/steel construction for T-bar grids, uniform air diffusion via diffusers/baffles, low pressure drop for energy savings.
Features:
| Model | FA-610/610 | FA-915/610 | FA-1220/610 |
| Related air flow(m³/h) | 1000 | 1500 | 2000 |
| Dimensions(mm) | 610*610*150 | 915*610*150 | 1220*610*150 |
| Initial resistance(pa) | ≤220 | ||
| Efficiency (%) | ≥99.99 | ||
| Dust capacity(g) | 600 | 900 | 1200 |
*Customized sizes and specifications are welcome.
| Frame | Stainless steel -Zinc/AL Galvanized sheet |
| Type | Disposable/roomside replaceable HEPA filter |
| Media | Superfine fiberglass /PP |
| Flange diameter | Inner collar diameter10″(250mm) 12″(300mm) |
| Sealant | Thermo resistant glue |
| Max. Temp. | 100°C |
| Min. Humility | 80°C |

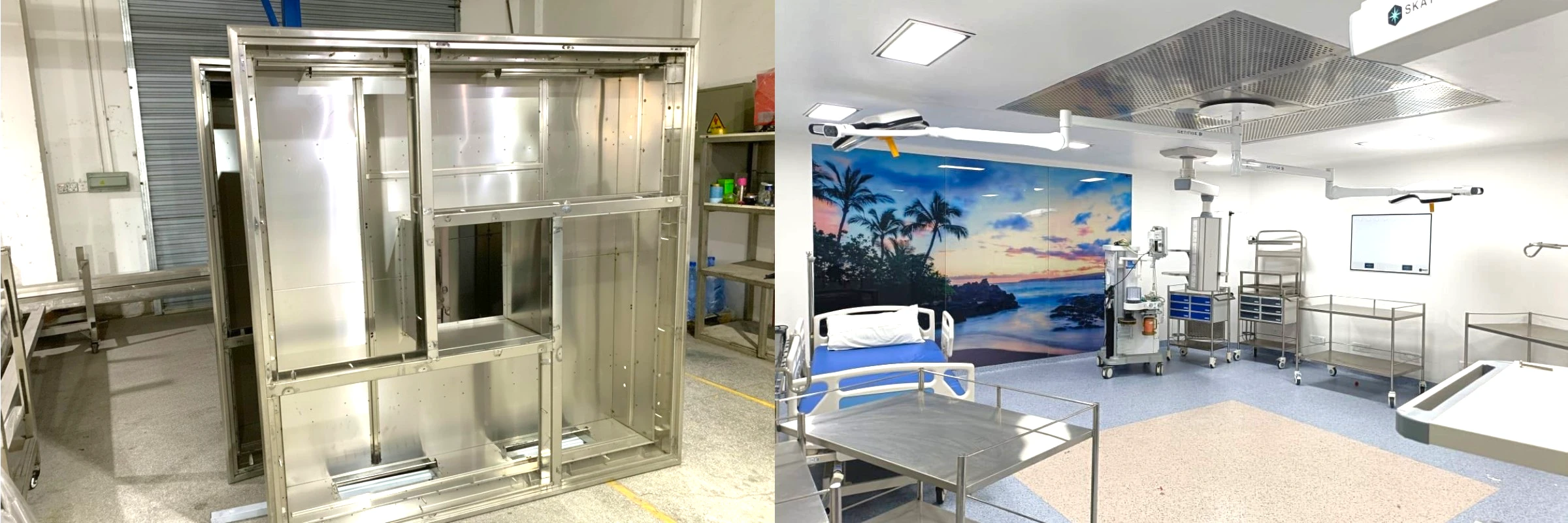

Our ceiling filter modules make your job easier. With a modular, plug-and-play design, you can install them faster with less labor. Plus, they’re engineered to pass strict site testing the first time, saving you from the headache of costly re-adjustments. Whether you’re outfitting sterile operating rooms, pharmaceutical production lines, or precision electronic assembly plants, our systems provide the reliable performance and easy integration your project demands.
Room-Side Replaceable (RSR) HEPA Modules: Allow for rapid, contamination-free filter changes without entering the ceiling body.
Modular Ceiling Filter Systems: Lightweight and T-grid compatible, simplifying cleanroom installation for faster, cost-effective project delivery.

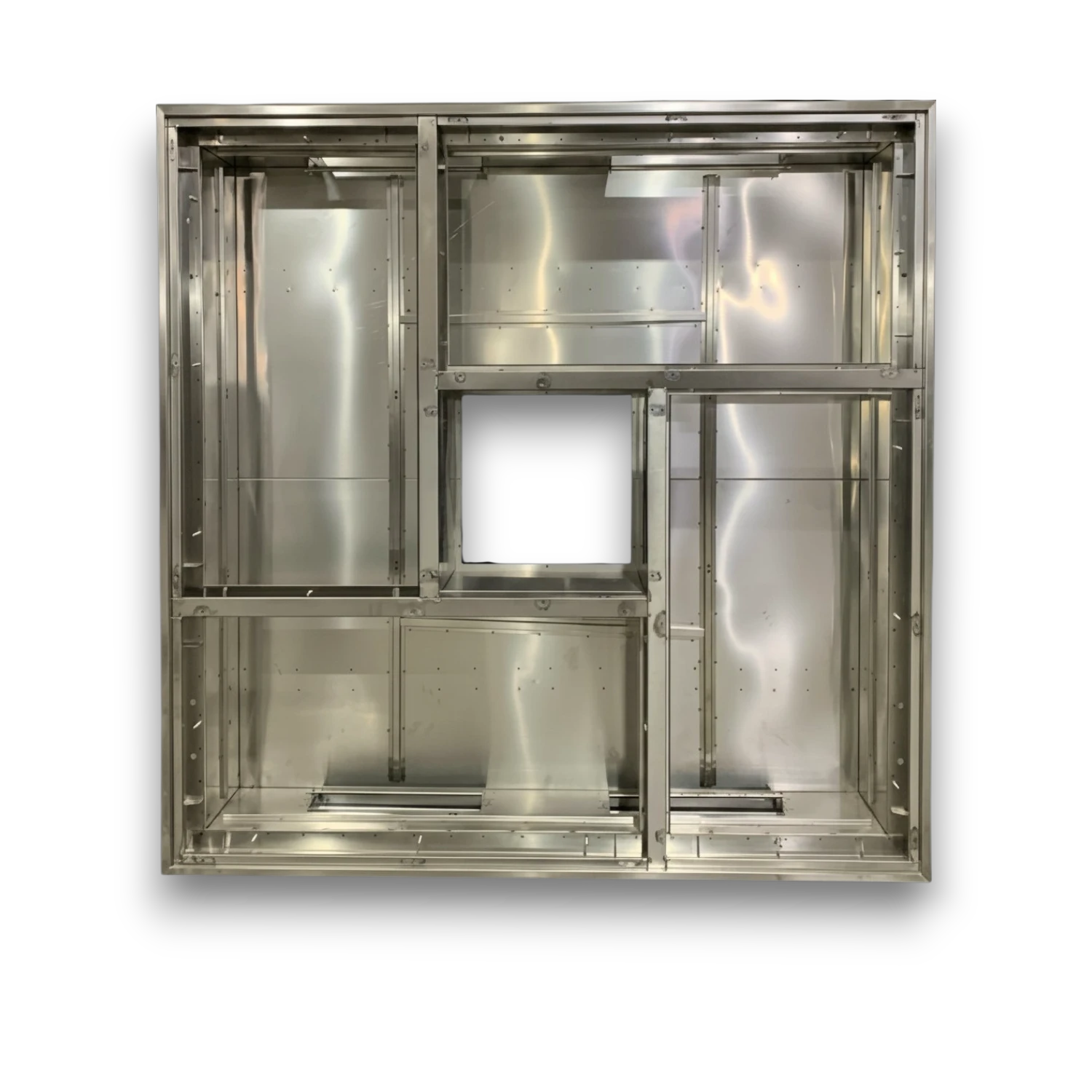

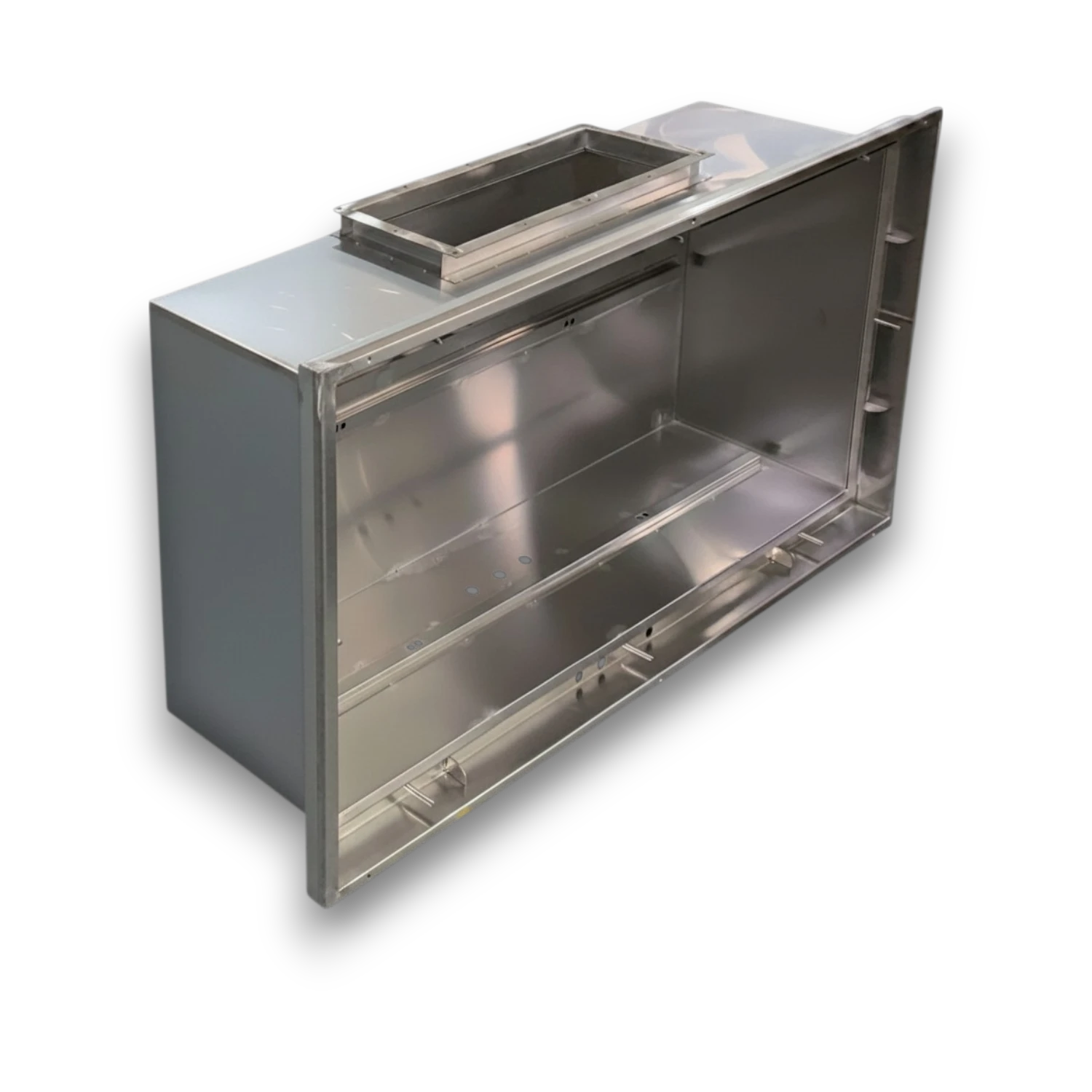

Custom Laminar Flow Filter Modules: Deliver precise, uniform airflow, eliminating turbulence to protect sensitive electronics and high-tech assembly
