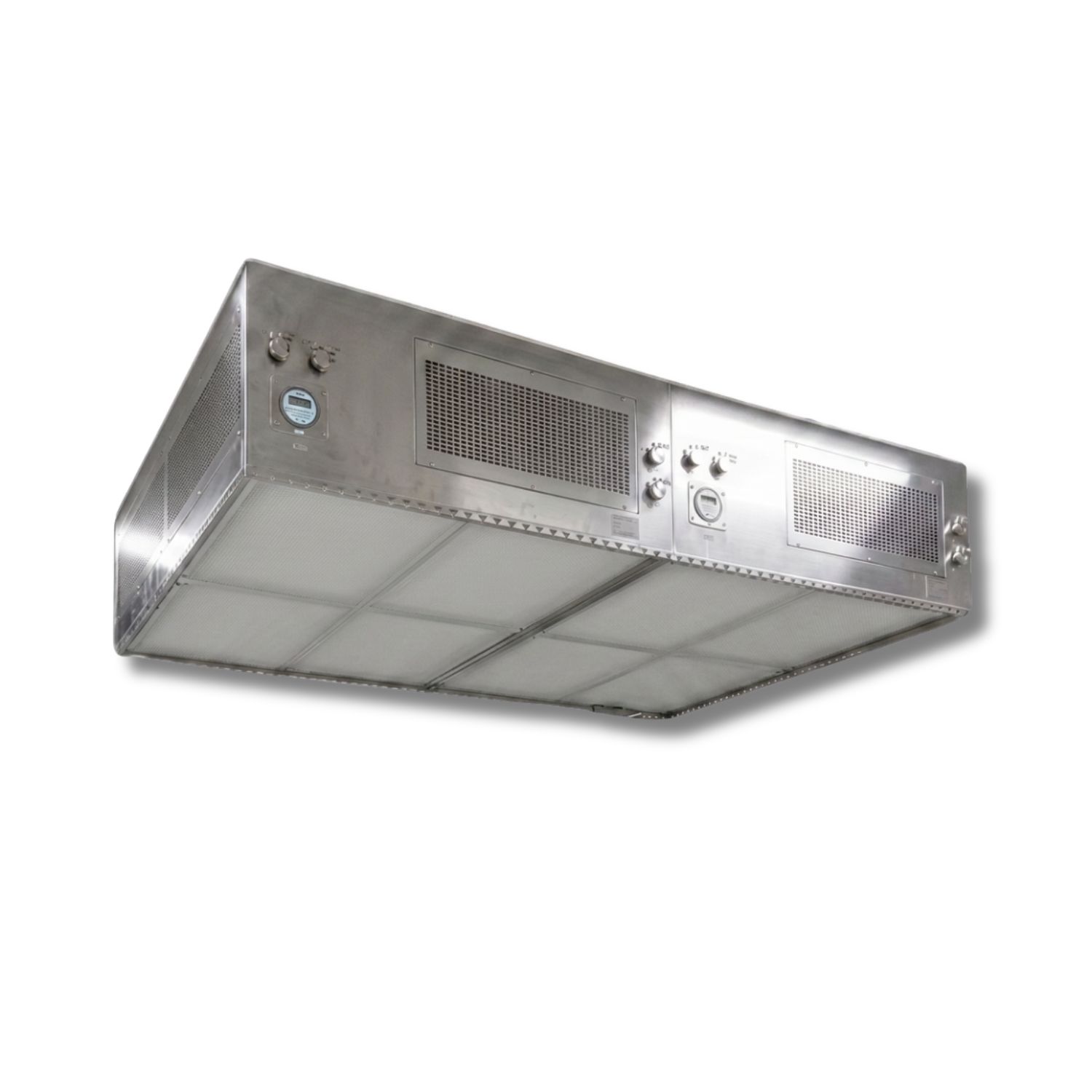

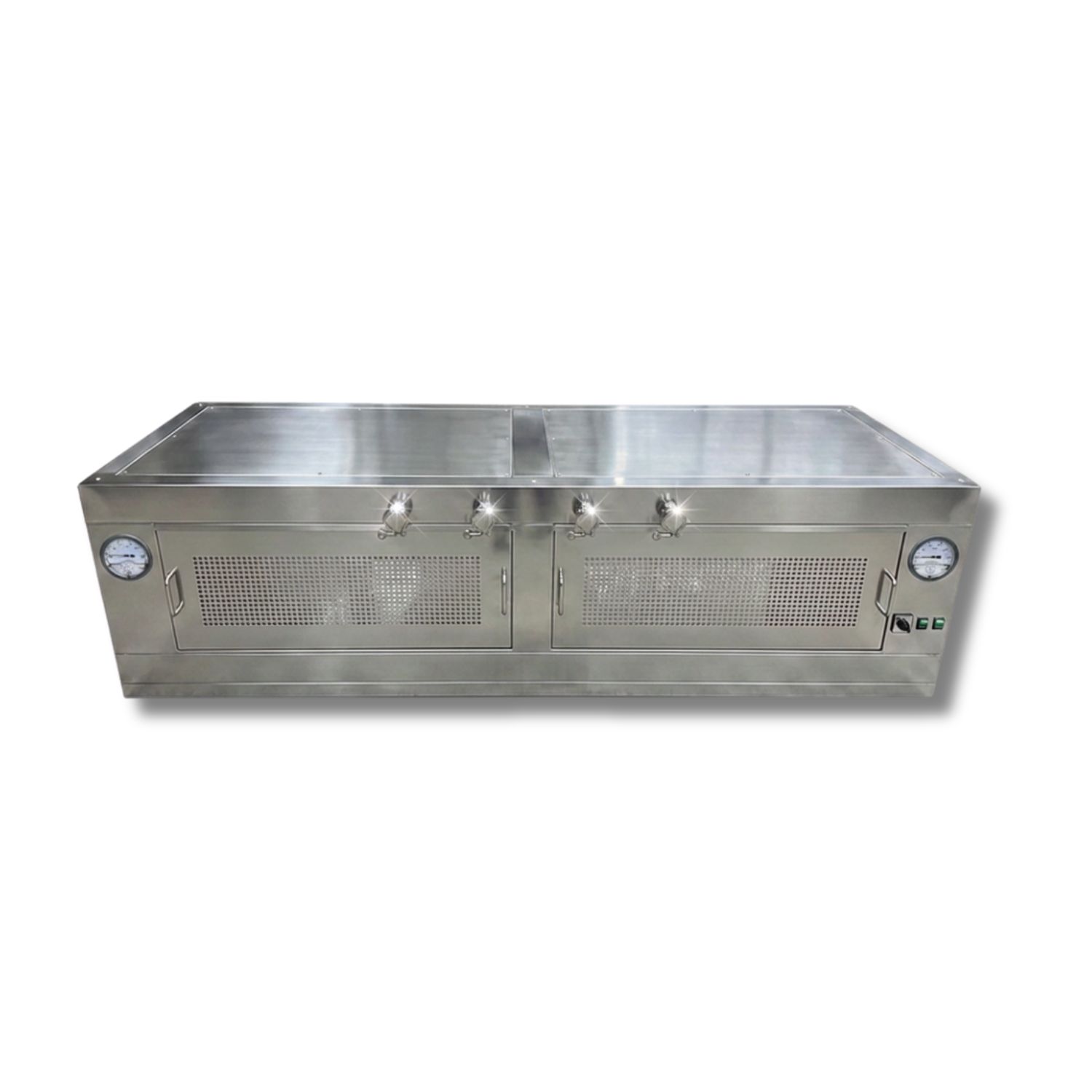

  • module LAF hood
  • module LAF hood

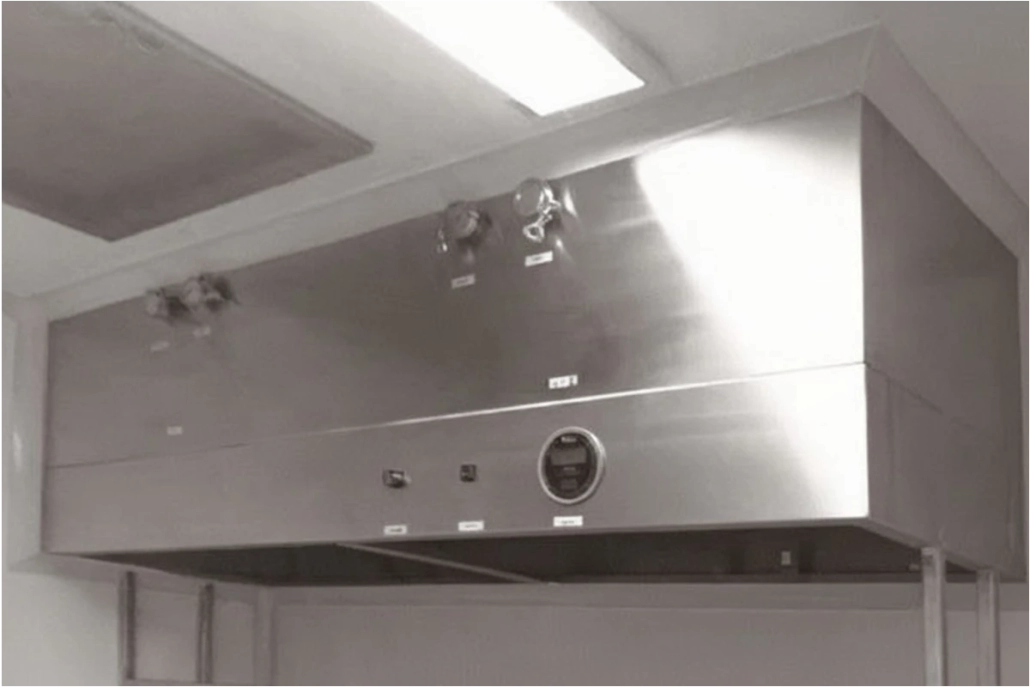

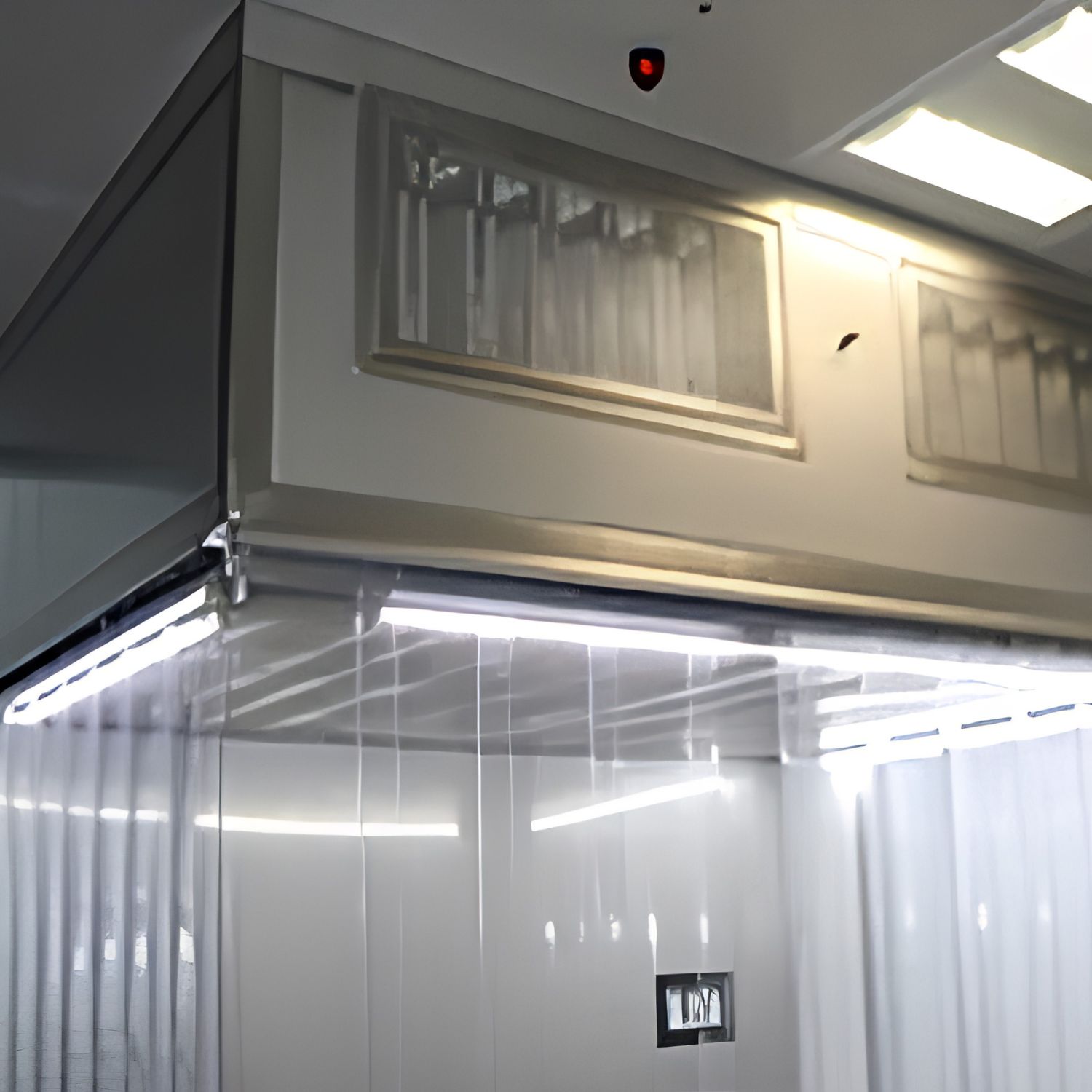

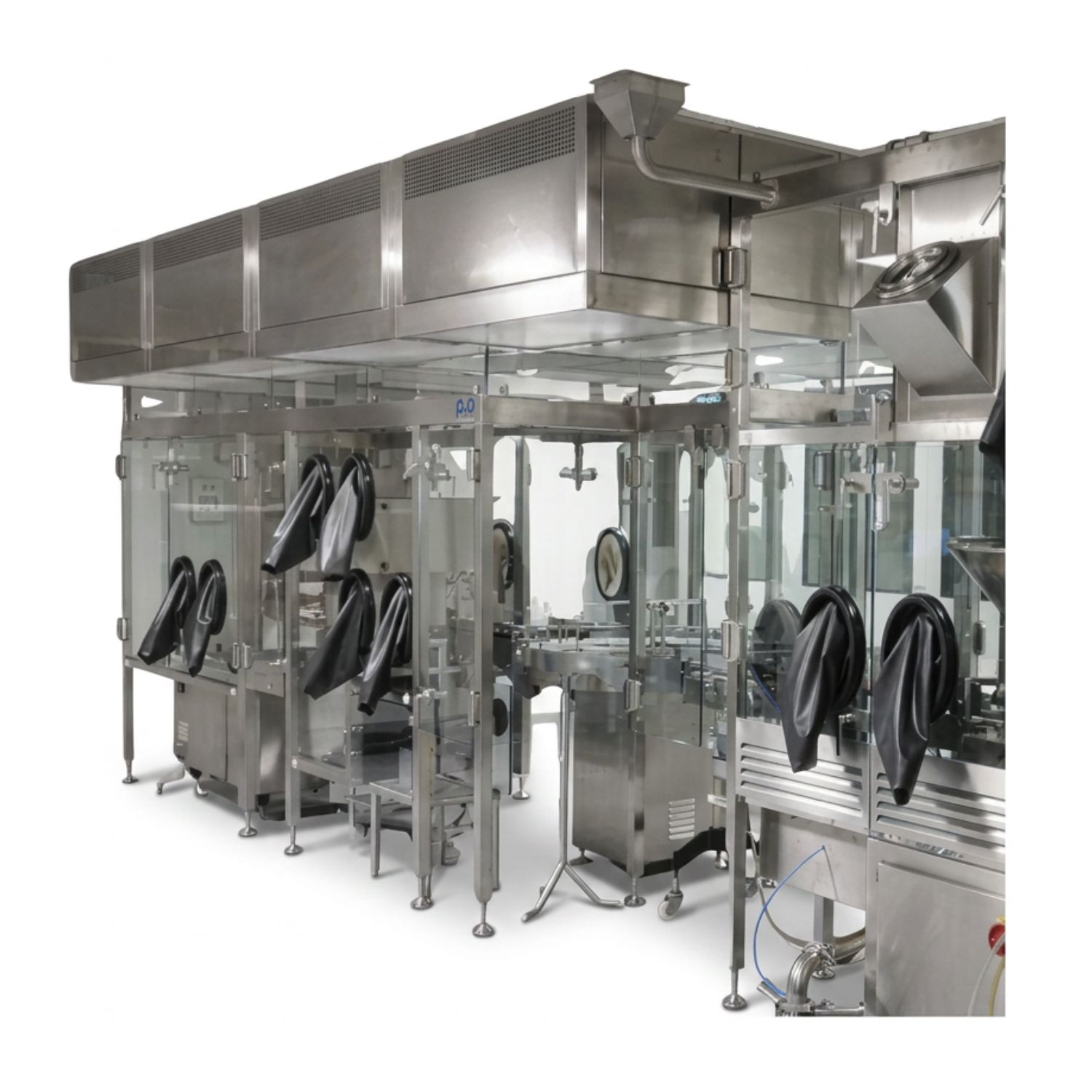

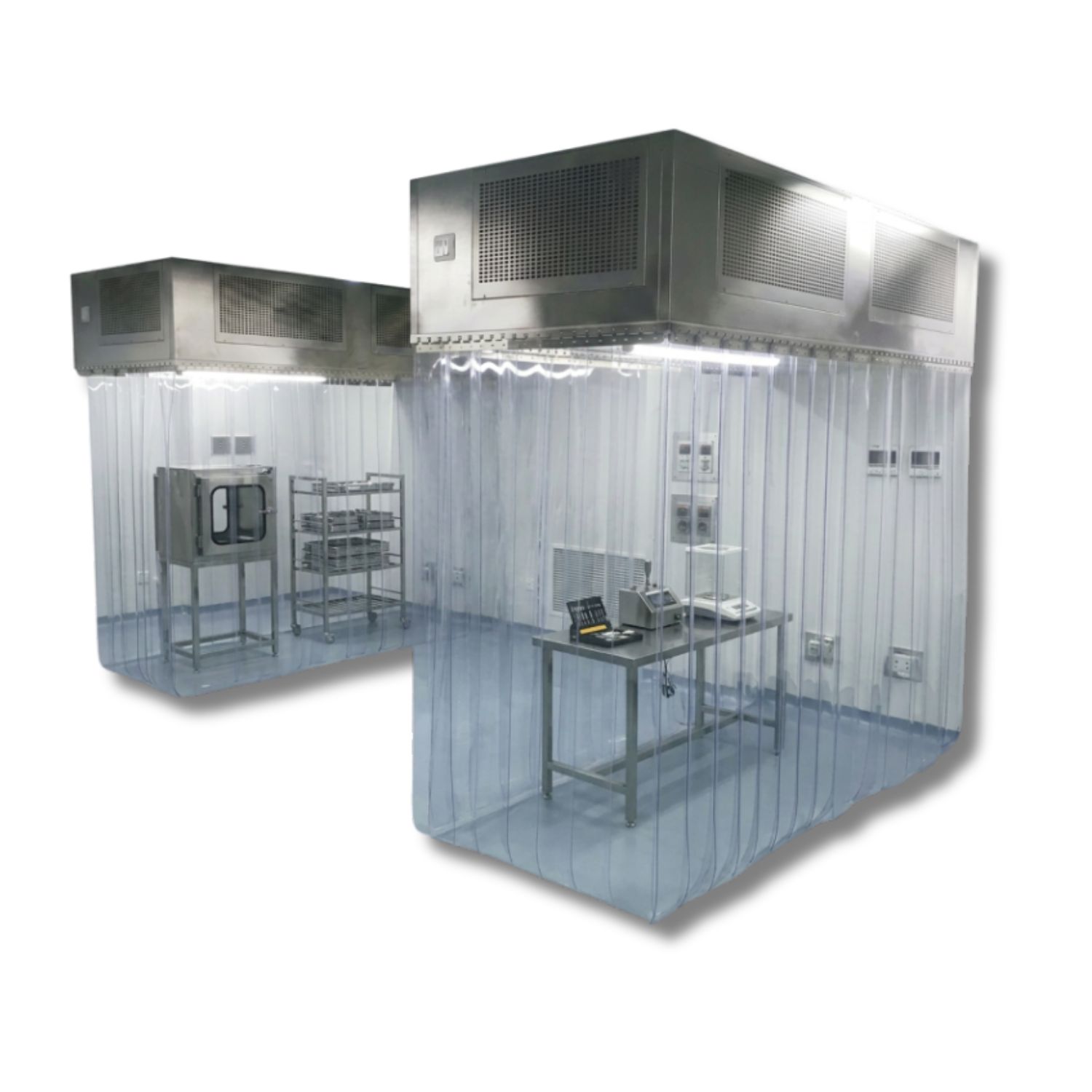

  • Ceiling laminar flow hood
  • Ceiling laminar flow hood
  • Ceiling laminar flow hood

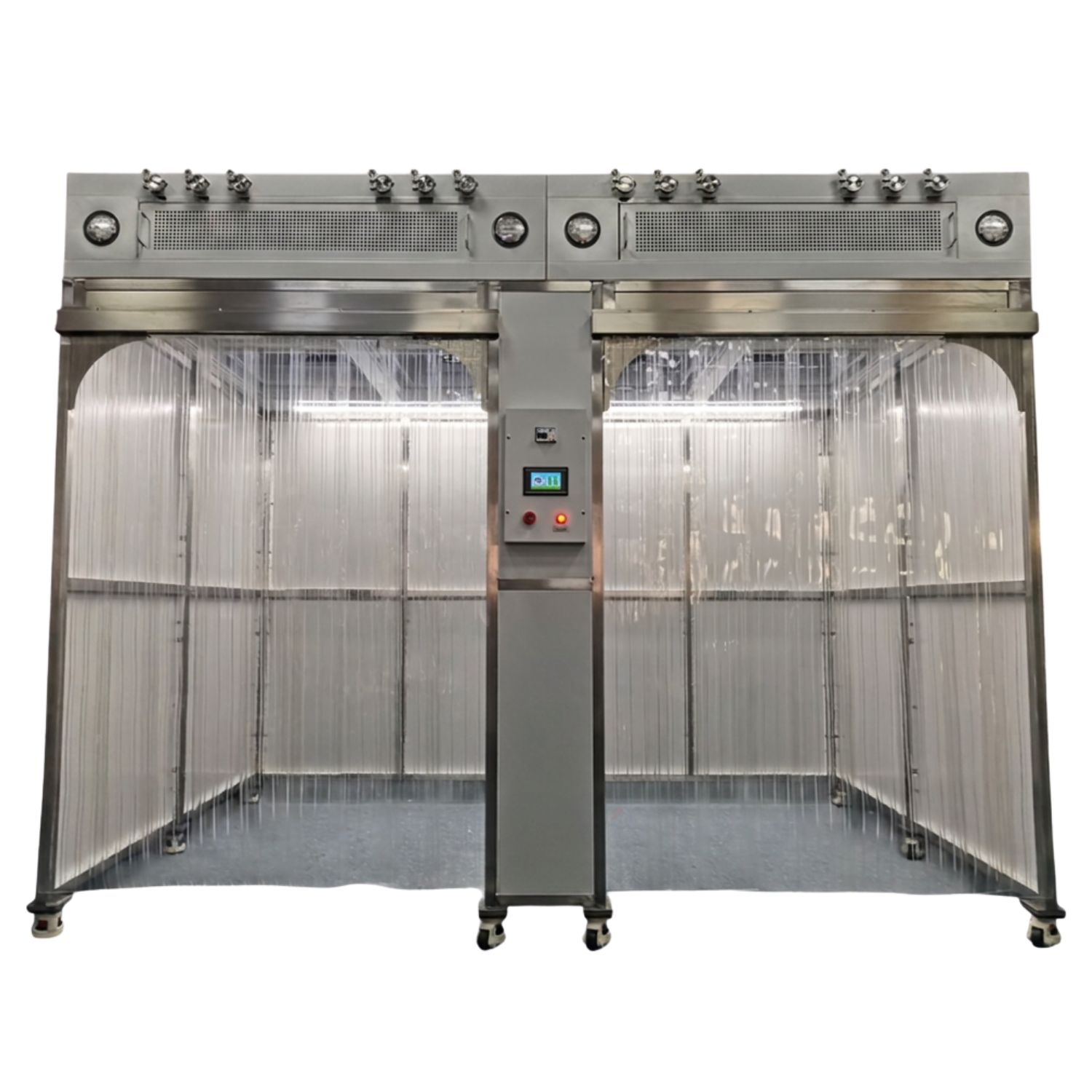

  • mobile LAF hood
  • Ceiling laminar flow hood
  • Ceiling laminar flow hood
  • Ceiling laminar flow hood
123456789

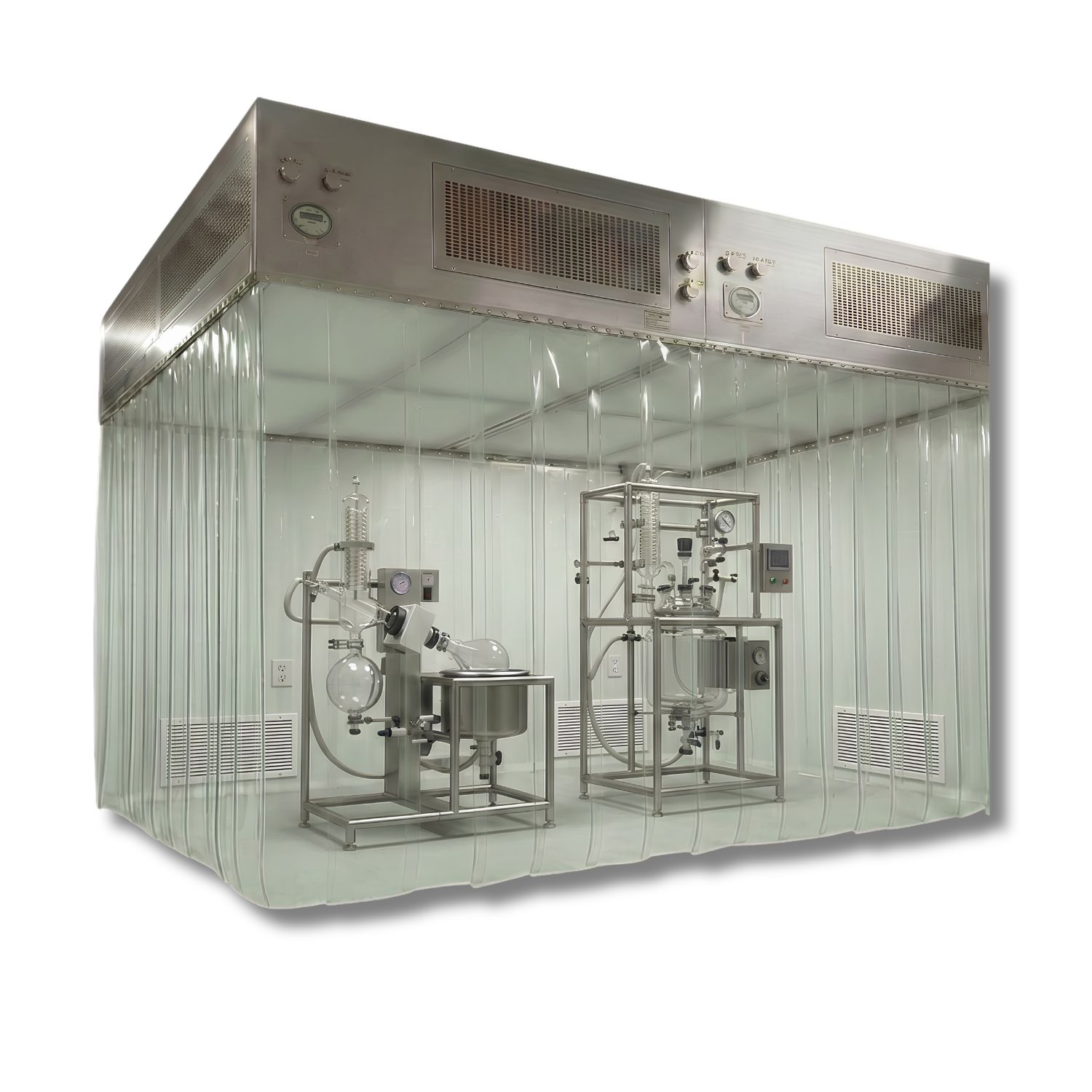

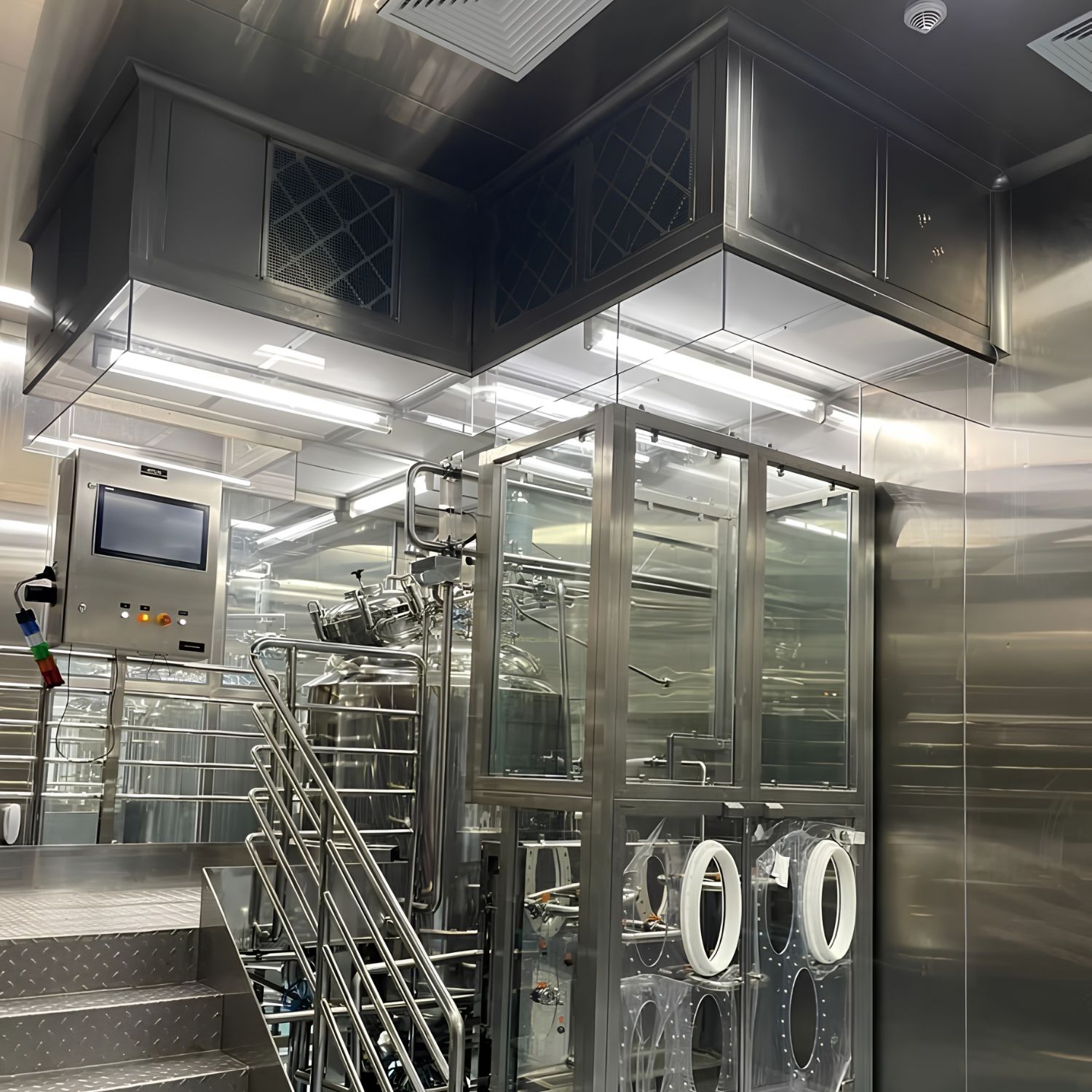

ISO5/class100 Ceiling laminar flow hood

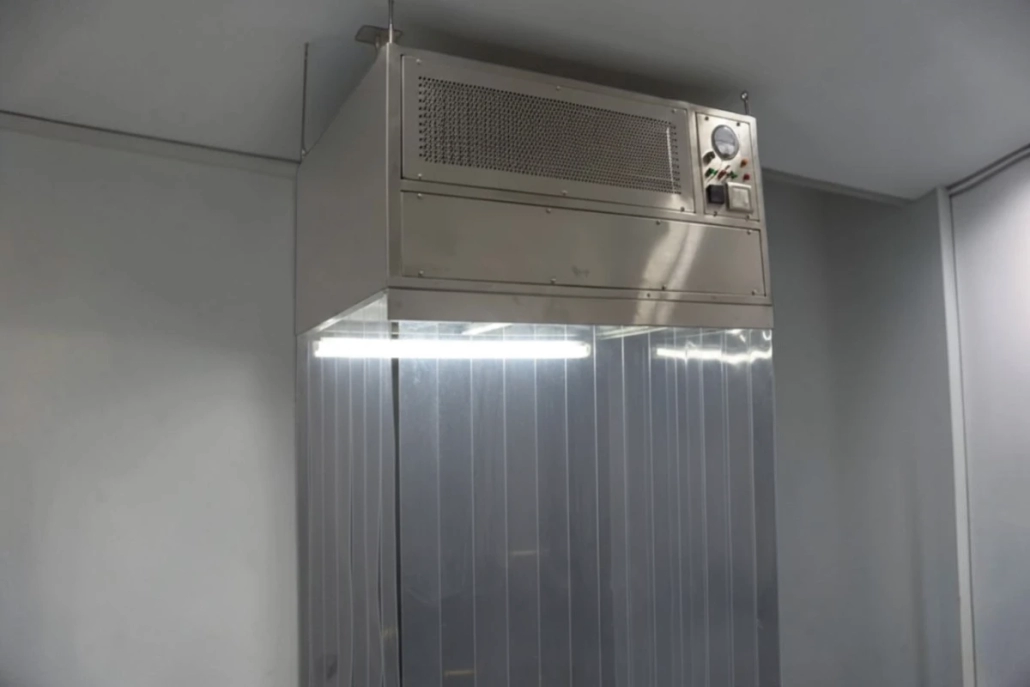

Flair’s Ceiling Suspended Laminar Airflow Unit (CLAF) or Stand Mounted Laminar Airflow Unit (LAF) are a containment equipment module utilizing a zoned unidirectional (laminar) downflow supply of air to positively pressurize and purge the working environment from potential contaminants; thereby providing enhanced aseptic work zones for maintaining process integrity and/or product protection.

It provides sterile CLASS 100 clean air in an isolated area where various kinds of critical and highly sensitive process activities are carried out.

GET A QUOTE

Why Global Engineers Trust Flair’s CLAF

Flair LAF hood is designed as per CLASS 5 OF ISO 14644-1 standards. The cabinet will be mounted from the ceiling using SS rope/Thread road or SUS stands. Access for servicing the HEPA filters will be provided from the bottom side of the unit,

  • Tailored design ,Easy to install

    Flair offers modular design,Plug-and-Play Modular Integration.

  • High-quality raw materials

    Medical-Grade SUS304/316L  Polished Finish

  • Low cost&Energy-efficient

    Optimized Total Cost reduced 30%

  • Easy to maintenance

    Inspection & replace HEPA filters are both  from within the clean area.

Flair ceiling laminar flow hood’s advantages

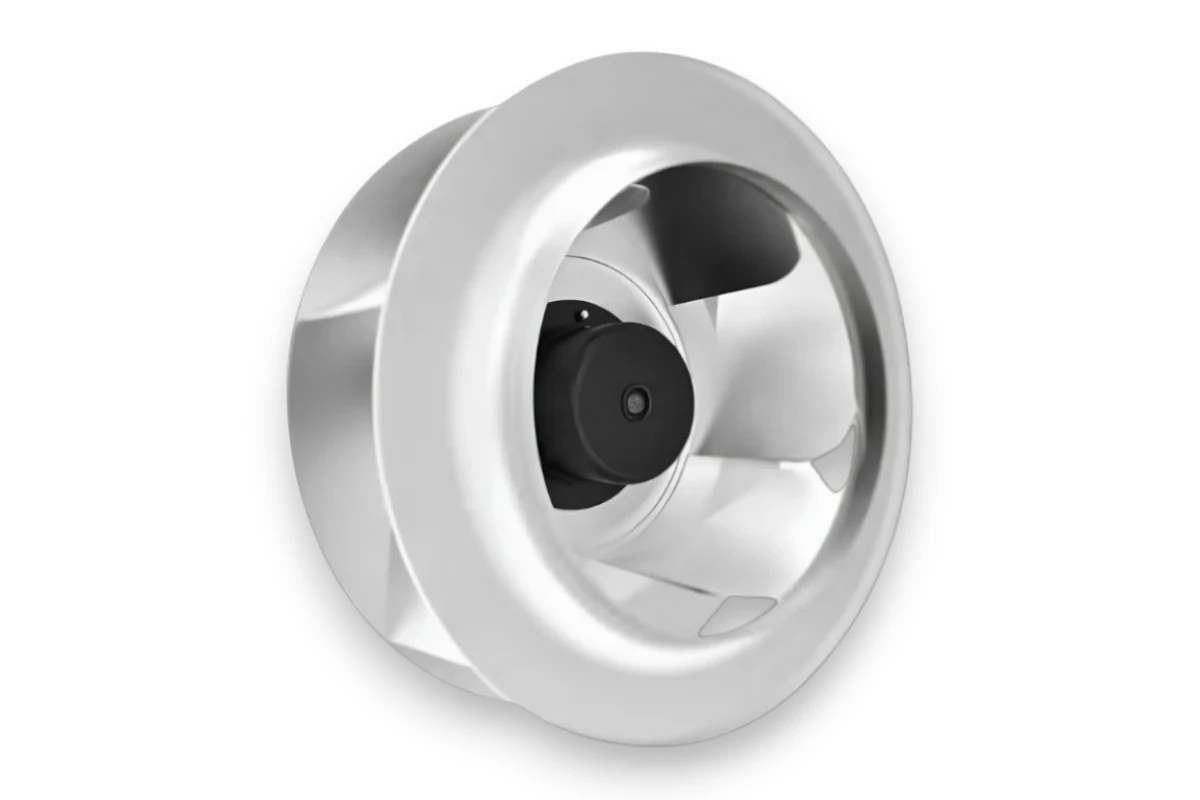

Large capacity EC blower

Blower

 High-performance EBM EC fan,low noise<62dB, energy-saving 30%.

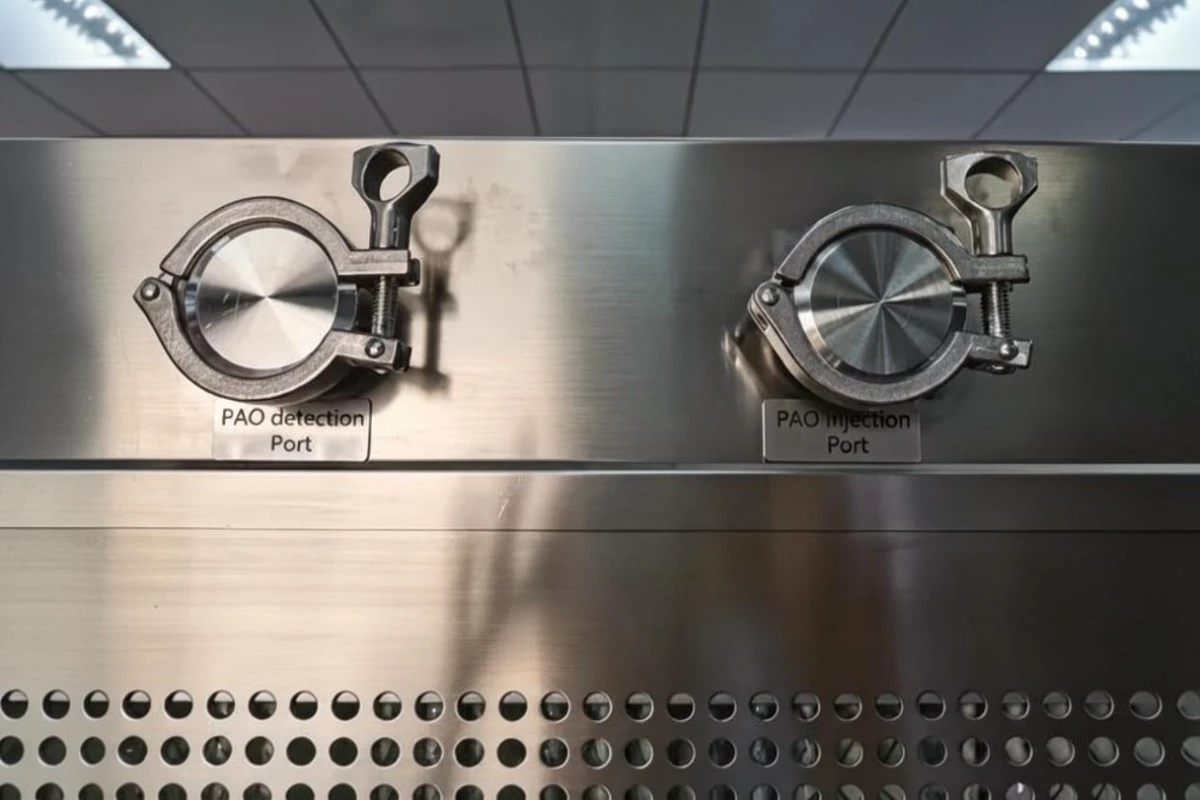

pharmaceutical CLAF DOP test/detection ports

DOP/PAO

Integrated PAO/DOP Test Ports for Integrity Verification

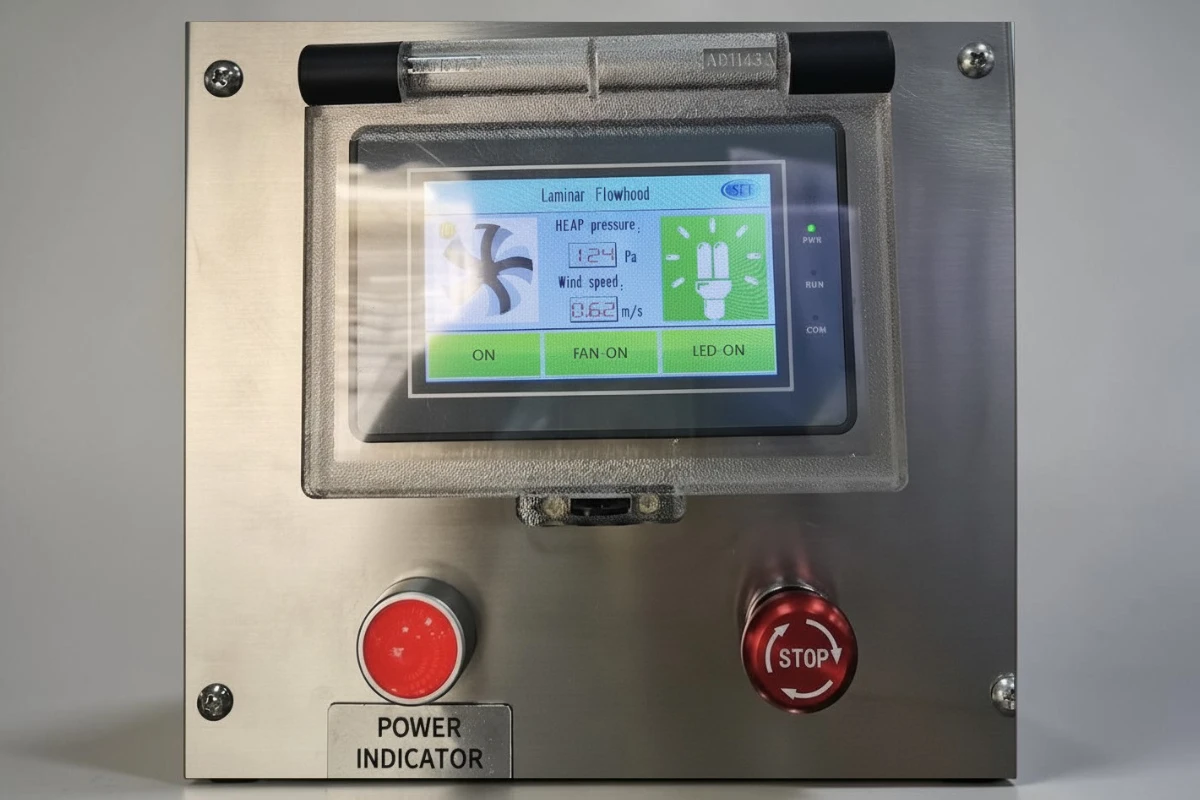

LAF controller

PLC Controller+touch screen display

PID Constant Air Volume (CAV) Control

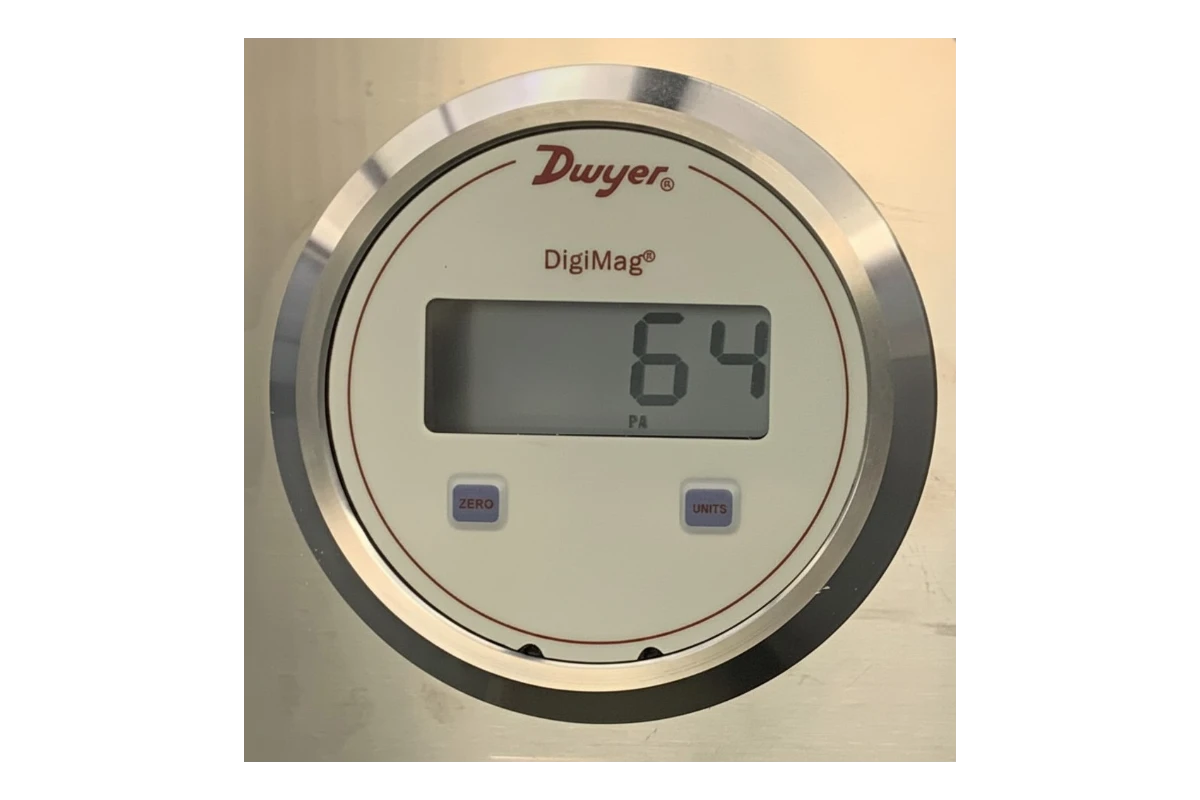

Dwyer gauge pharmaceutical CLAF

Differential pressure gauge (Dwyer)

Zoned magnehelic gauges for differential pressure across filters

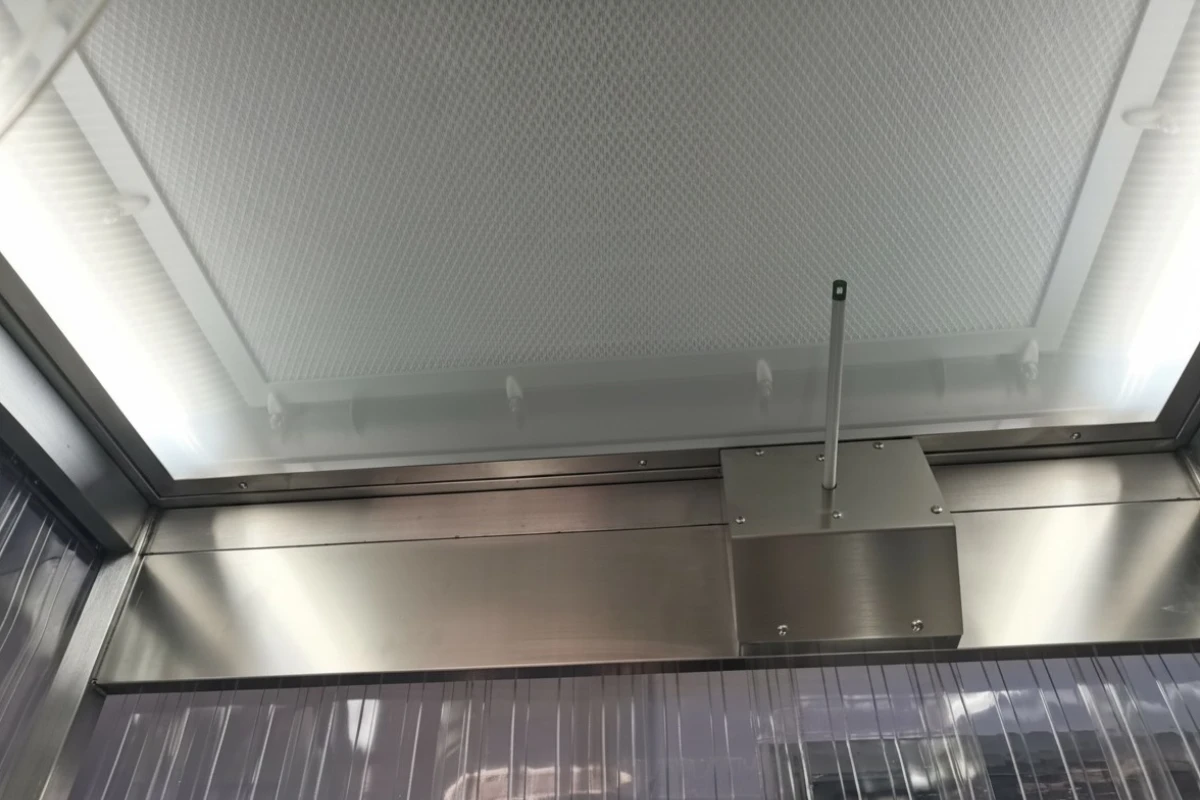

White membrane

White membrane

Uniform unidirectional downflow ,velocity is 0.45 m/s ± 20% (90 FPM)

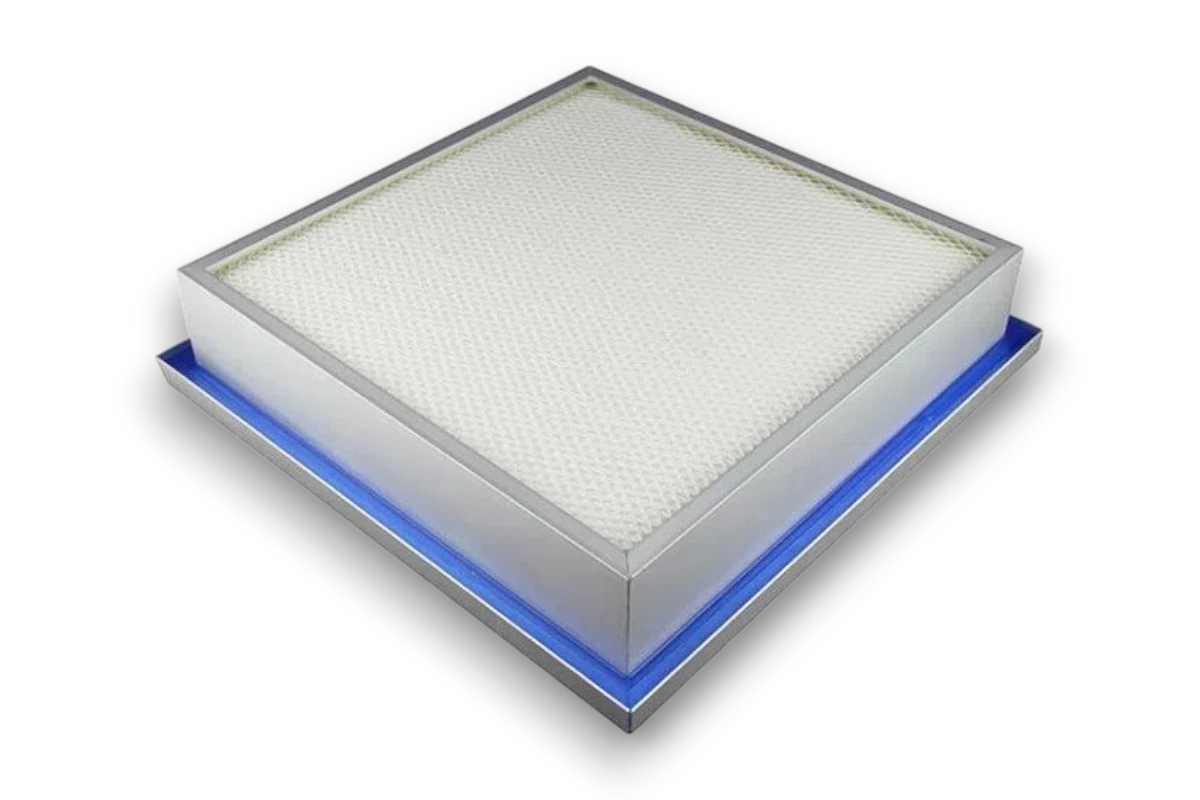

Gealed-HEPA filter for CLAF booth

GEL HEPA Filter

H14/U15 Better Sealing than the conventional gasket sealed design

Anti-static PVC Curtains

ESD PVC Curtains

Anti-static PVC curtain walls or Tempered glass/PC /Acrylic for sides

Leackage test

100% factory tested before shipment according to ISO 14644&cGMP

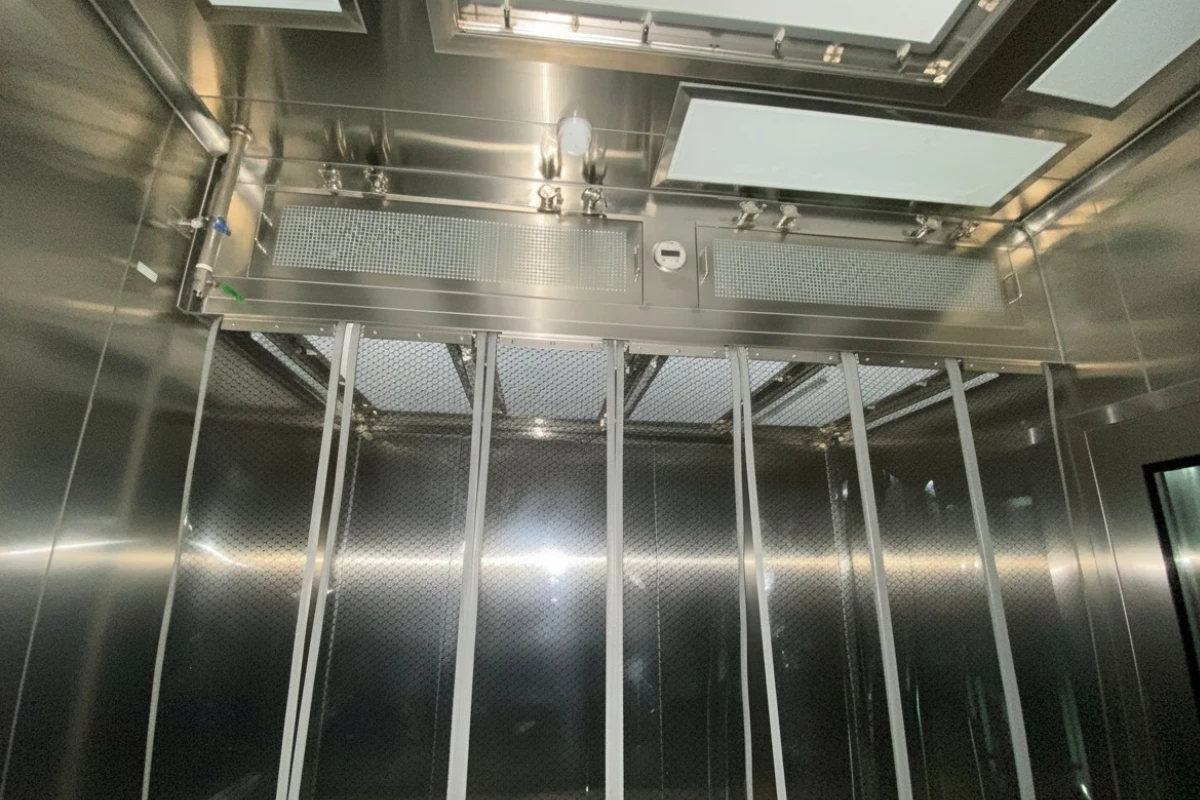

Custom LAF hood

Welcome custom functions requirements on laminar flow hood .

SEND INQUIRY

Excellent cleanroom equipment

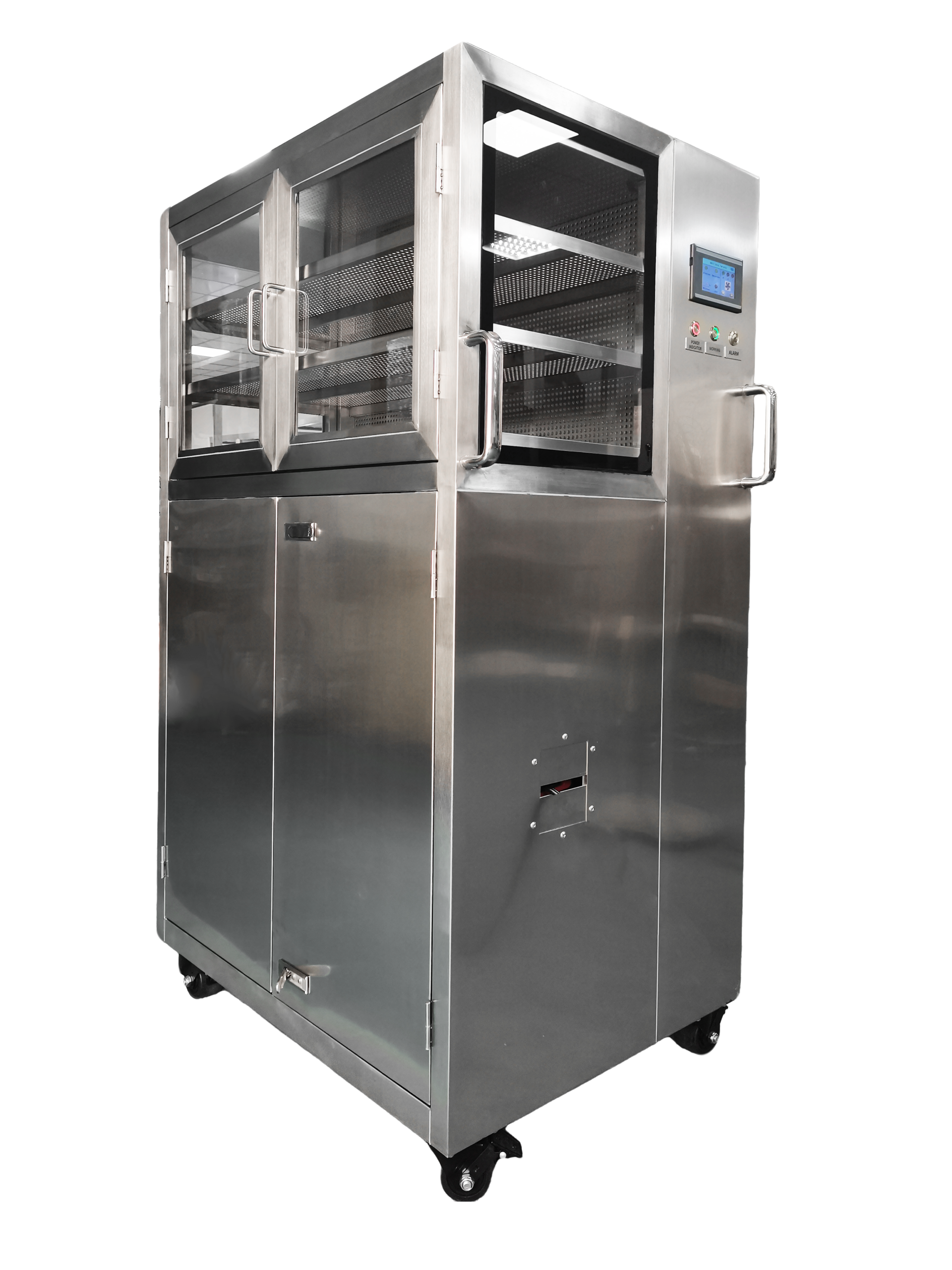

custom class100 Laminar flow hood trolley/cart

LFH mobile trolley/cart

Laminar air flow hood features

  • ISO5 LAF hood

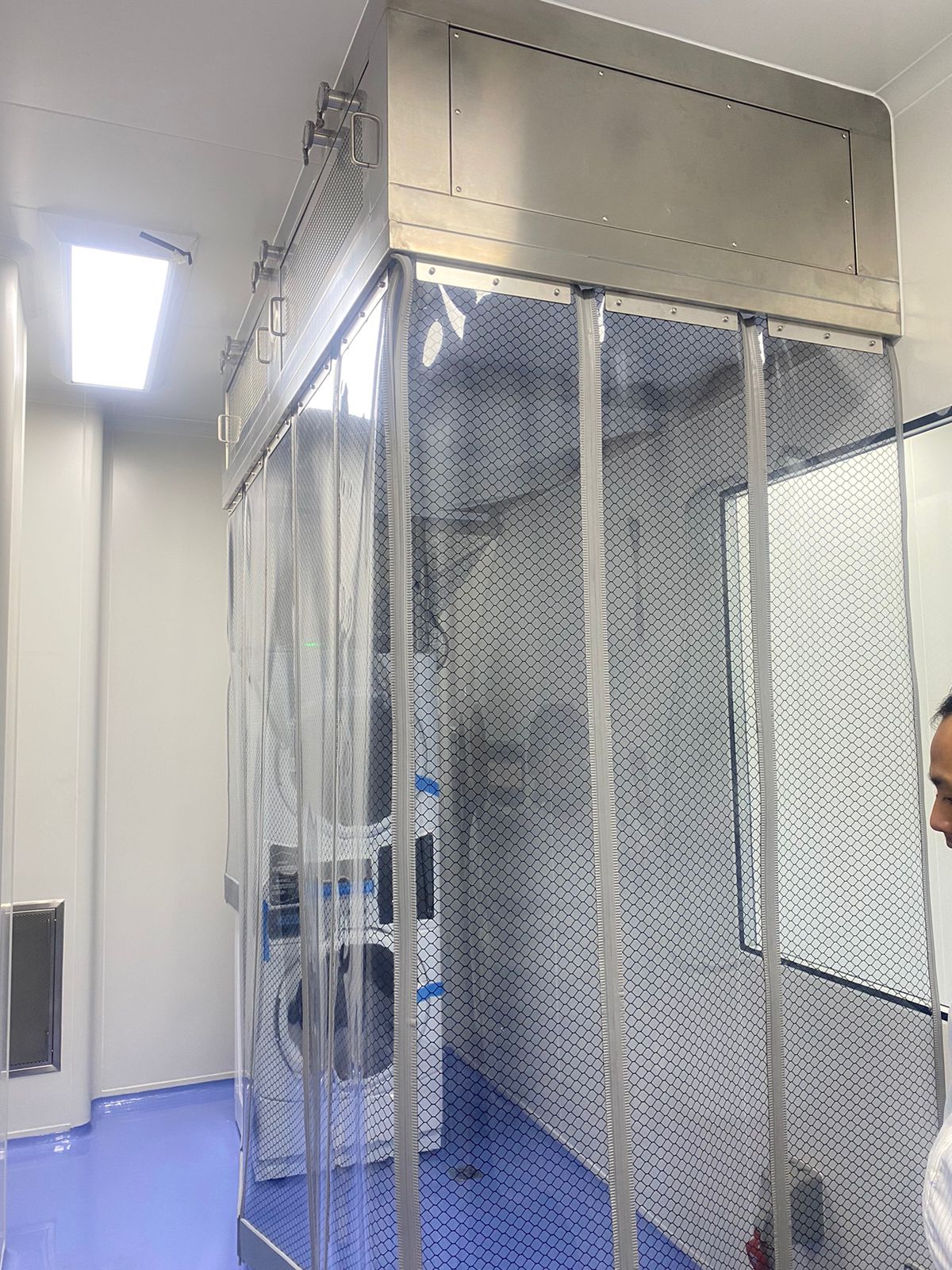

    custom ISO5/GMP LAF hood booth manufacturer
  • ceiling laminar flow hood
12
  • All material Stainless steel 304/316 material
  • White memenbrane under the downstream
  • Two grades filtering systems: H14 Gel HEPA/U15 ULPA filter+G4 pre filter
  • LED lights,Energy efficient lighting
  • DOP/PAO inject /detect ports
  • Dwyer Pressure gauge ,Filter pressure monitoring gauge
  • Touch screen display control or control box
  • Visual or audible alerts for Low and High pressure
  • Anti-static PVC curtain strips or mobile Tempered doors for sides
  • Supply/return air from duct collars, low wall returns or pre-filters
  • Equipped with Emergency stop /emergency alarming
  • Customized sizes and function are welcome
SEND INQUIRY

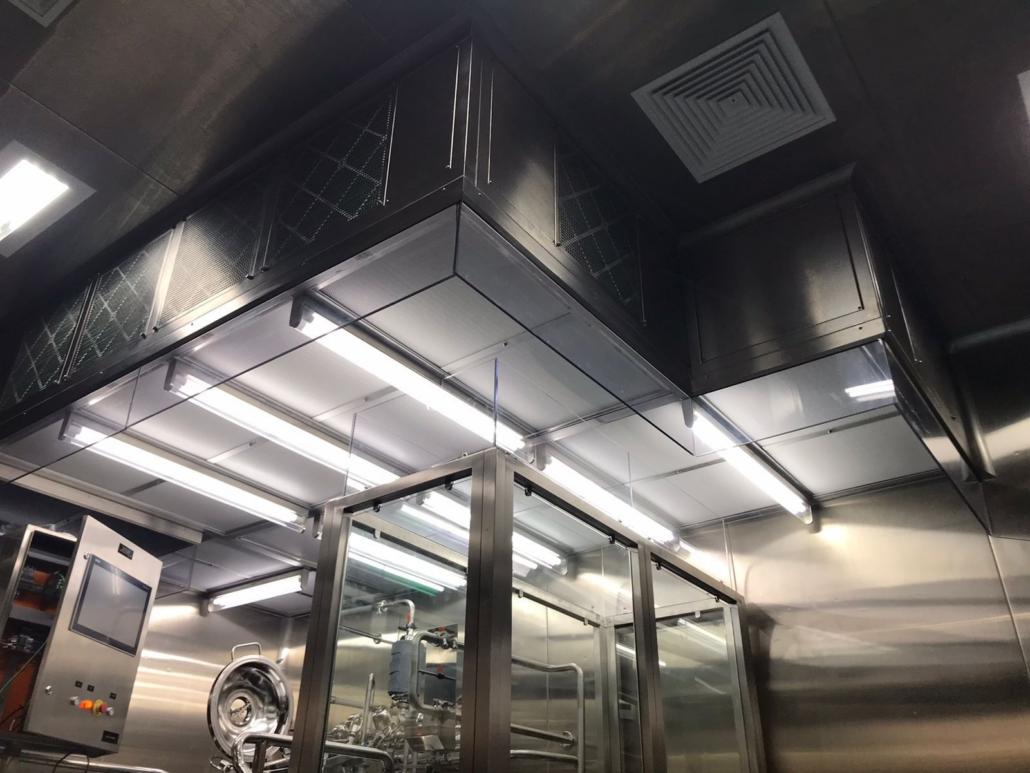

Custom ISO5 Ceiling laminar airflow hood(LAF)

Your Reliable Cleanroom equipment manufacturer

Custom ceiling laminar flow hoods are welcome,Please send your inquiry to us.

We have more than 18 years of experience in manufacturing high-quality cleanroom system products, and over 30 engineers are specialized in this field, winning a good reputation in the market.

SEND INQUIRY

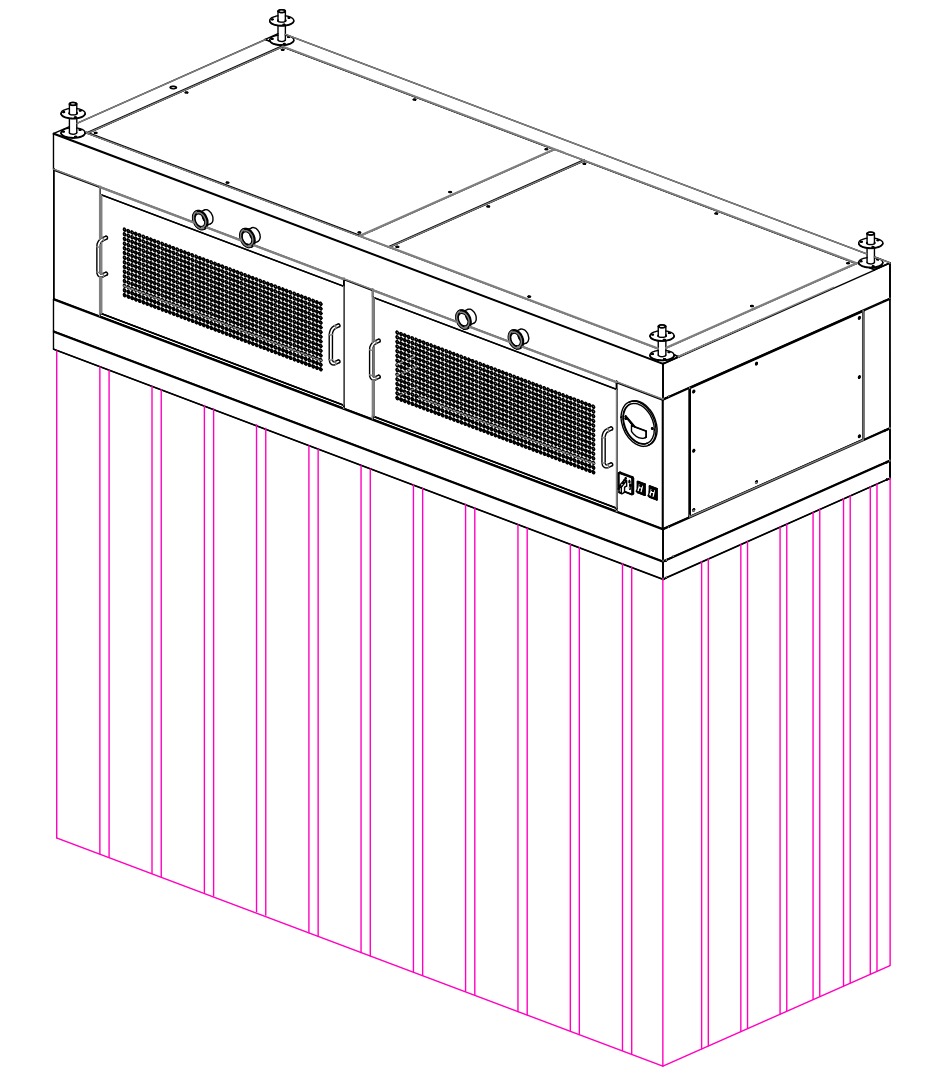

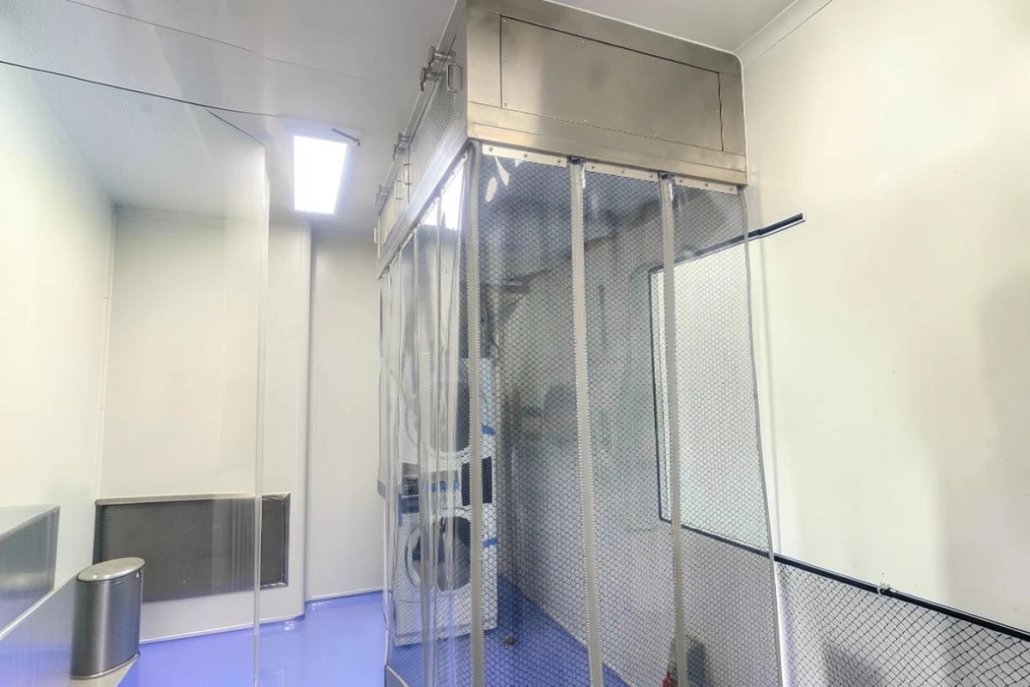

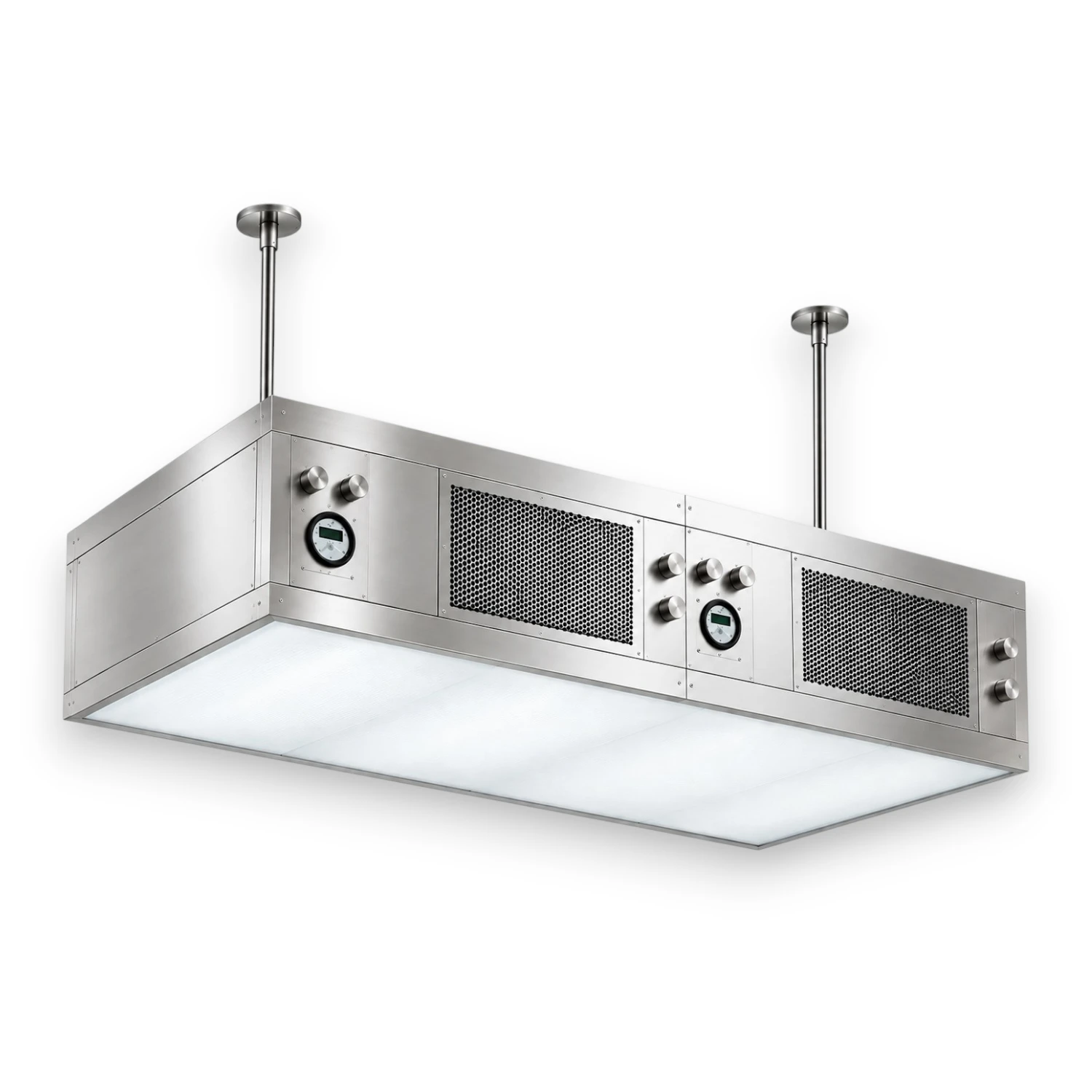

ISO5 Suspended ceiling lamianr flow hood booth
DrawingSpecification

Technical Drawing

Flair-Ceiling-LAF-Technical-Datasheet

Technical Parameters

Model No. 1200X800X600 1300X1200X600 2200X1200X600
Power Supply 220V 50/60HZ/1P/0.25KW 220V 50/60HZ/1P/0.5KW 220V 50/60HZ/1P/0.75KW
Material All material are polished SUS304#/316# plate
Air velocity 0.3~0.7m/s
Controller Stepless/3-step /Variable frequency/Automatic constant air speed PID
Differential pressure mechanical pressure difference meter /Electronic pressure difference transmitter
Control Panel Button/Touch screen
Cleanliness ISO5(Class100）
Illumination >300Lux
Noise <65db

CLAF ’s Applications

Ceiling Laminar Airflow are used for various applications such as, over a packing and filling lines in the pharmaceutical industry, food processing industry, in the assembly line of precious engineering components, pre-operative and post-operative care of critically ill patients and widely being used inside the OPERATION THEATRE during critical surgery etc.

GMP /ISO5 ceiling lamianr flow hood(LAF)

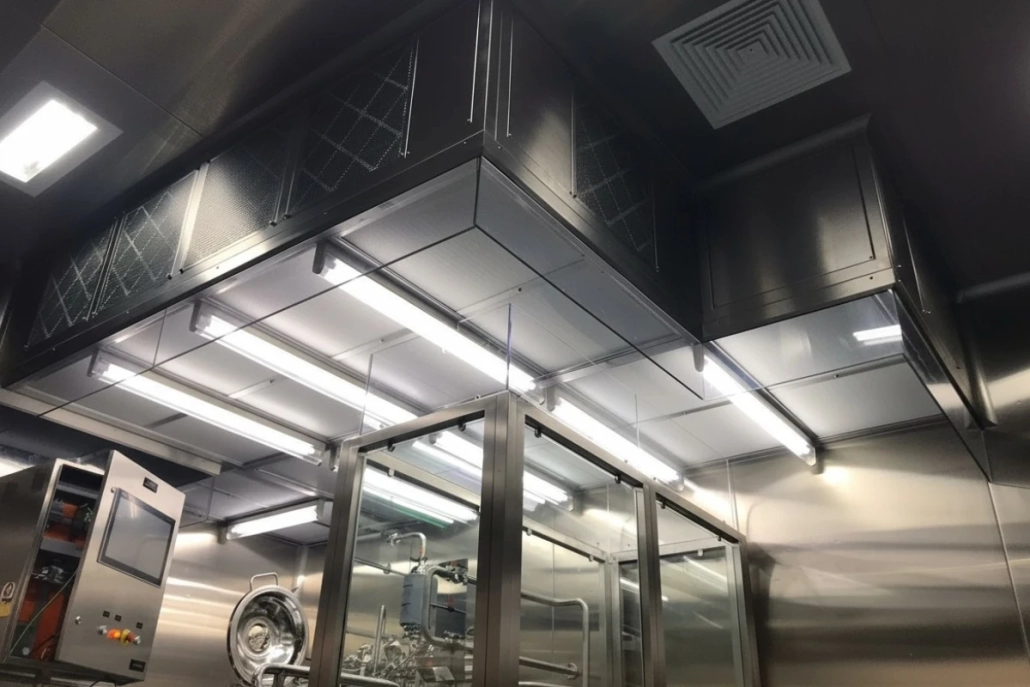

Ceiling Laminar Flow Hood (CLAF) for Class 100 Cleanroom

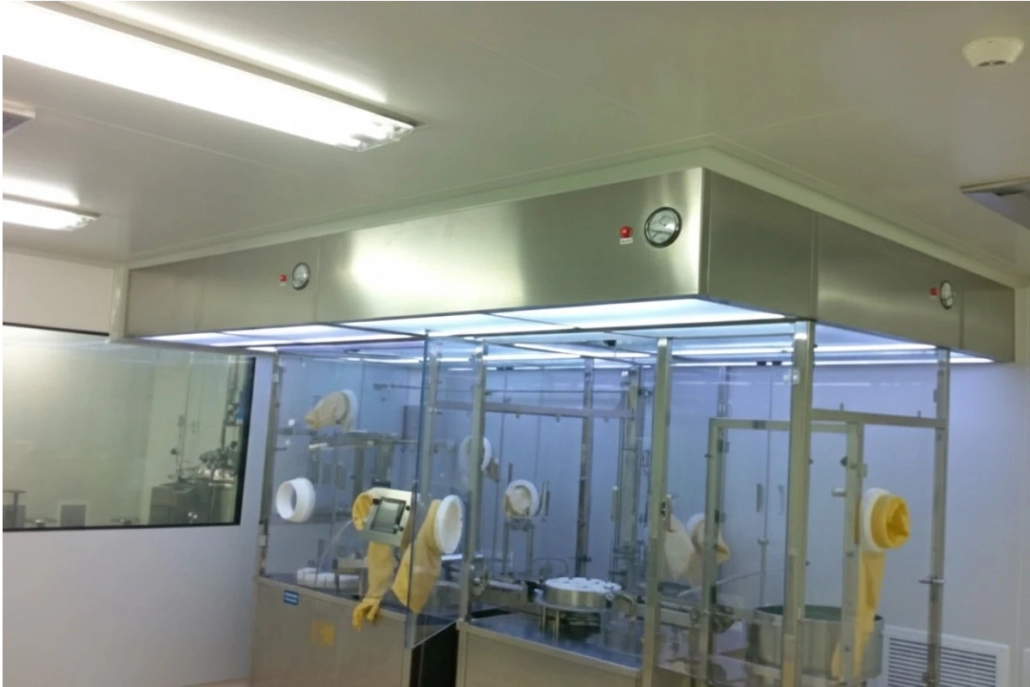

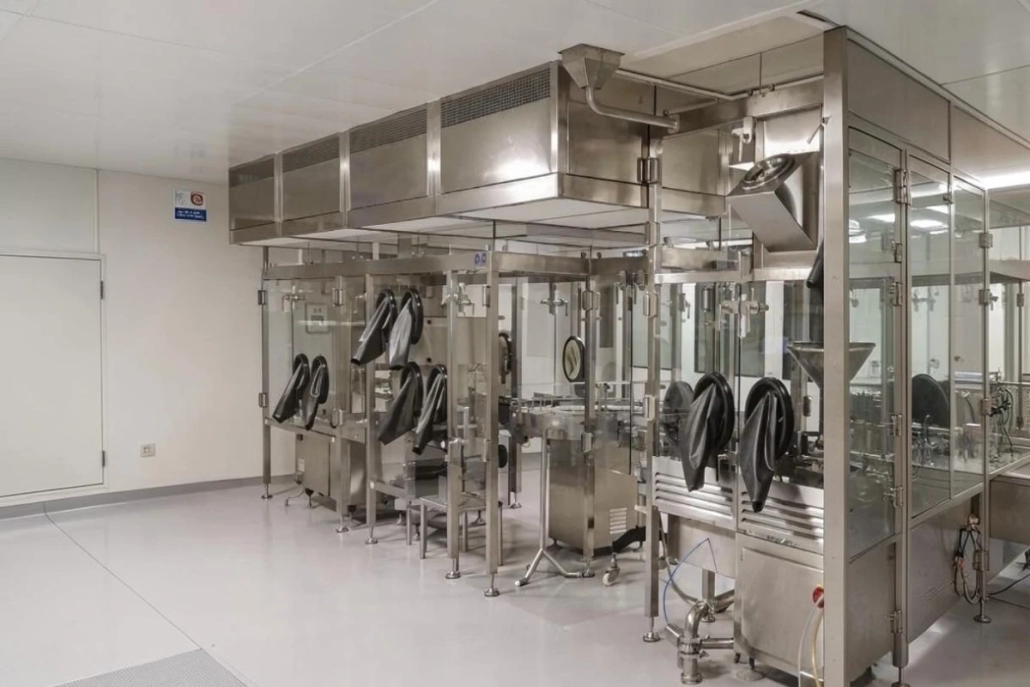

Ceiling Laminar Flow Hood (CLAF) for pharmaceutical & biomedical industry

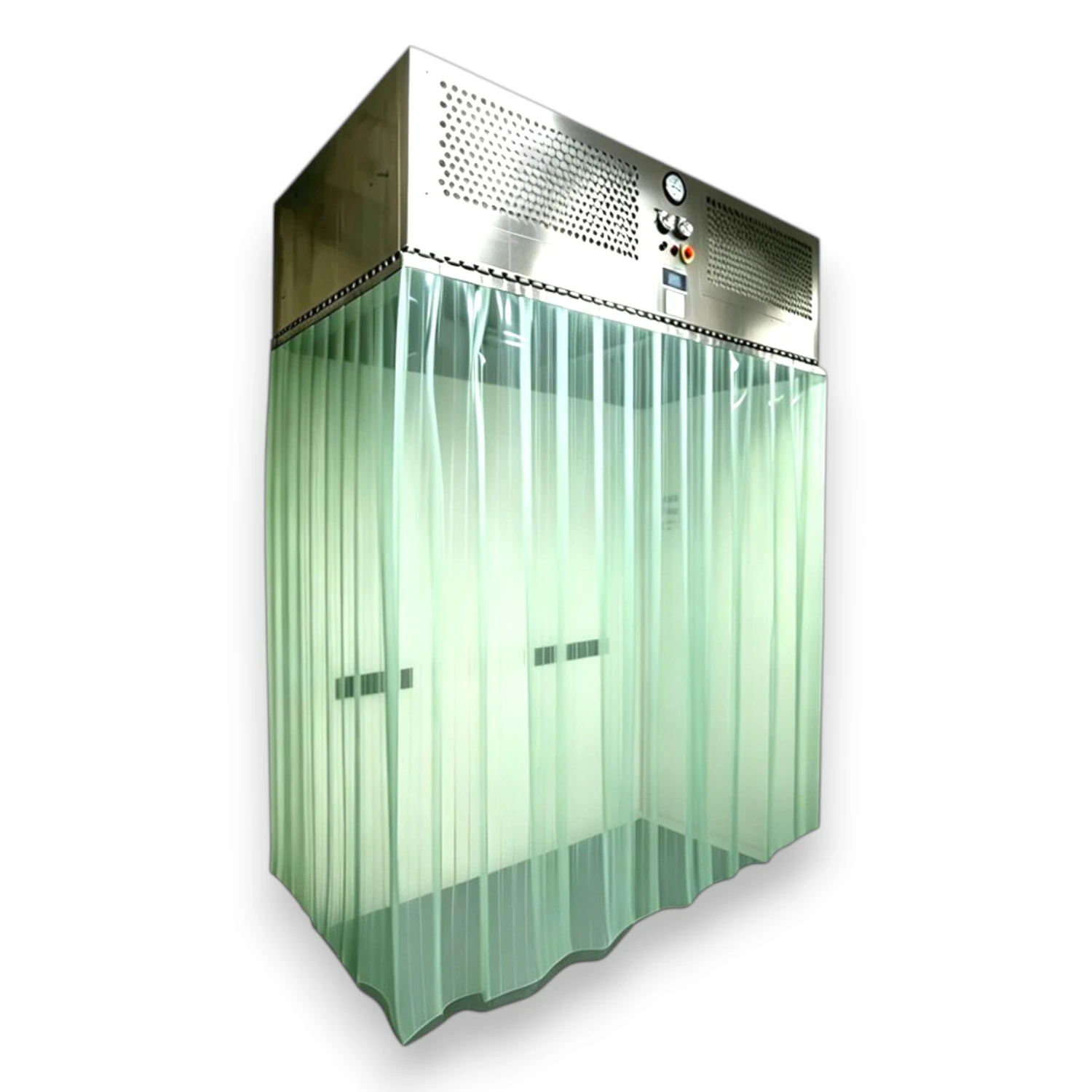

ISO5/GMP LAFbooth
GET A QUOTE

FAQs

Find answers to frequently asked questions about our products. See the most common topics and more. Any other questions just feel free to contact us.

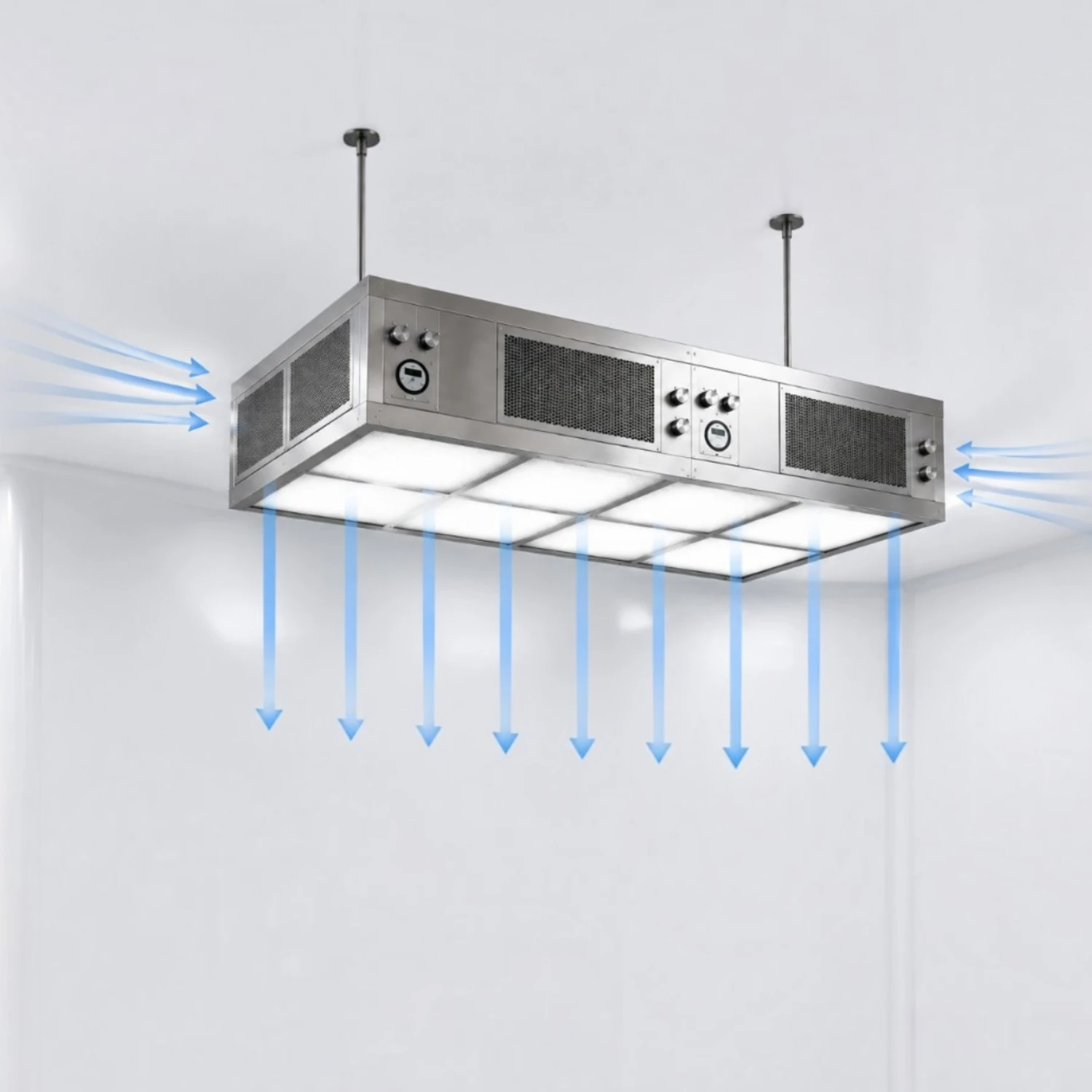

Air is drawn through a HEPA filter and blown in a unidirectional flow across the white membrane ,into the work space, preventing airborne contaminants from entering.

LAF hood insrallation steps

LAF hood insrallation steps

What’s the difference between a laminar flow hood and a biosafety cabinet?
A laminar flow hood protects the sample only, while a biosafety cabinet protects both the sample and the user from harmful biological agents.

DOP testing involves releasing a fine aerosol (formerly using Dioctyl Phthalate, now replaced by PAO – Polyalphaolefin) and using a photometer to detect particle penetration through the HEPA filter. It confirms the filter is intact and performing at ≥99.97% efficiency.

DOP testing ensures the HEPA /ULPA filter integrity required for maintaining ISO 5 cleanliness. It verifies that no contaminated air bypasses the filter.

Laminar (unidirectional) flow prevents turbulence and cross-contamination. Typically, ISO5/class100 hoods maintain 90–110 feet per minute (fpm) airflow.

Yes, but only when the LAF hood is not in use. UV sterilization adds another layer of decontamination but doesn’t replace airflow or filtration.

A:

  • Daily surface cleaning with isopropyl alcohol

  • Scheduled filter checks

  • Annual DOP/PAO certification

  • Monitoring airflow consistency
