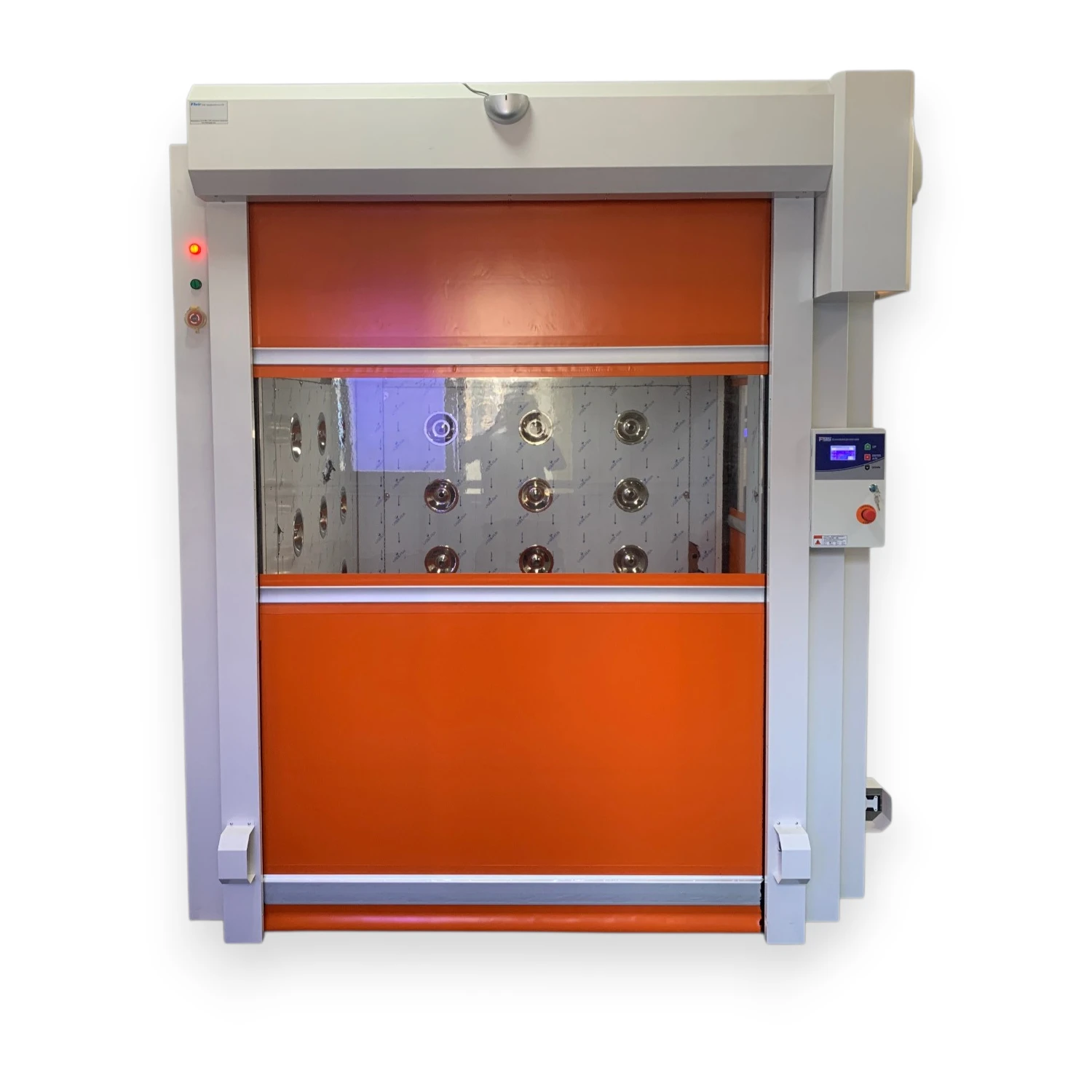

Fast rolling shutter air shower

Flair’s fast roller shutter curtain air shower tunnel.

● PVC curtain material:high-density polyester fiber surface coating processing, thickness 0.8mm-1.5mm, the color can be selected(Blue,yellow,red etc).

● Anti-clip&Emergency stop equipped for both inside and outside.

The PVC curtain door speed is adjustable.

● Photoelectric sensor control, automatic blowing and showering (the blowing time can be adjusted from 0-99s)

● Advanced intelligent computer control module, Manual & Automatical two models

● Control box ‘s installation can be customized

SEND INQUIRY

Technical Parameters

Model No.	AAS/R – 2D – 2000	*ED(WDHmm)*	*2900W2000D2370H*
*ID((WDHmm)*	*2000W2000D2000H*	*ID of door(WHmm)**	*2000W2000H**
No.of SUS Nozzel	24pcs	Air jet of nozzle	Outlet diamet er:%%C30mm,air velcoity>25m/s
LED light/Number	18W/2pcs	Blower/Number	0.75KW/4sets
Material	Option1 ，All material cold rolled plate coated power ;2,Outside housing shell is cold rolled plate coated power,Inwall SUS201# or 304# ；3,All material are SUS201# or 304#
Door /mat erial	Fast- rolling curtain，SUS framework， industrial cloth	Filter parameters	*61061069mm,H13,0.3um,99.97%,4pcs*
Blowing type	Both side blowing	Filter parameters	*61061069mm,H13,0.3um,99.97%,4pcs*
Power Supply	220V/1P(50/60Hz) 、380V/3P/50Hz	power	4.0KW
Control panel	1,micro- comprter control system \| 2，Touch screen +PLC controller
Be suitable for persons/goods psaaing through;Customized dimensions or requirements are welcome
Operation refer to – 06- 07

*Customers’ size and specification are welcome.

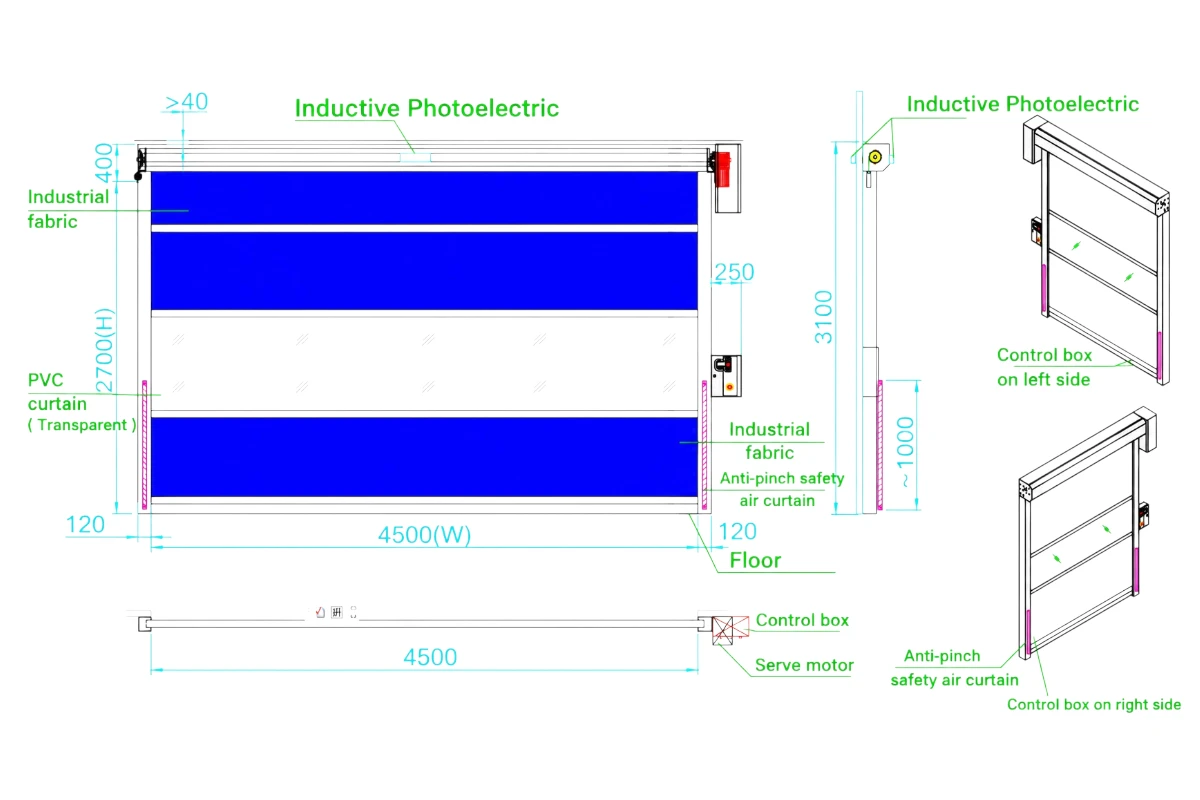

Technical Drawing

Key Features of Flair Fast Rolling shutter Air Showers

Traditional swing doors can be slow and cumbersome for forklift or pallet jack operations. Flair fast-rolling shutter air shower offers:

Modular Construction: Designed for easy on-site assembly and future expansion or relocation.

Optimized Logistics: Door Opening Speed is adjustable (up to 1.5 m/s) according to logistics flows.

Safety & Compliance Features

1.Infrared Safety Curtain: Automatically reverses the door if an obstruction is detected in the doorway, preventing accidents(Anti-pinch function).

2.Emergency Stop Buttons: Equipped both inside and outside the chamber for immediate system shutdown and door release.

3. UPS battery:in case of Fail-Safe Emergency Exit,nsuring that staff and forklifts are never trapped inside Up to 30 minutes of operation (load dependent),Fail-Safe Emergency Exit

Smart Sensing Technology:Equipped with Microwave Radar or Induction Loop sensors for hands-free, automatic operation—ideal for forklifts and AGVs.

Feature: Large Opening,Full Trolley & Forklift Compatibility

PLC & Sensors: Both automatic &manual models avaialble ,Reliable, touchless, and automated PLC controller

PVC Curtain: The high-density PVC curtain (0.8mm–1.2mm) features wind-resistant ribs and side-track brushes to maintain cleanroom pressure.Available in Blue, Yellow, White, or Fully Transparent (Anti-static options available),

Applications

The fast rolling shutter air showers are ideal for docks and transfer zones where forklifts move large volumes of raw materials into controlled packaging or production areas.Maintains the strict GMP standards required for moving large equipment or palletized ingredients between different clean zones.
