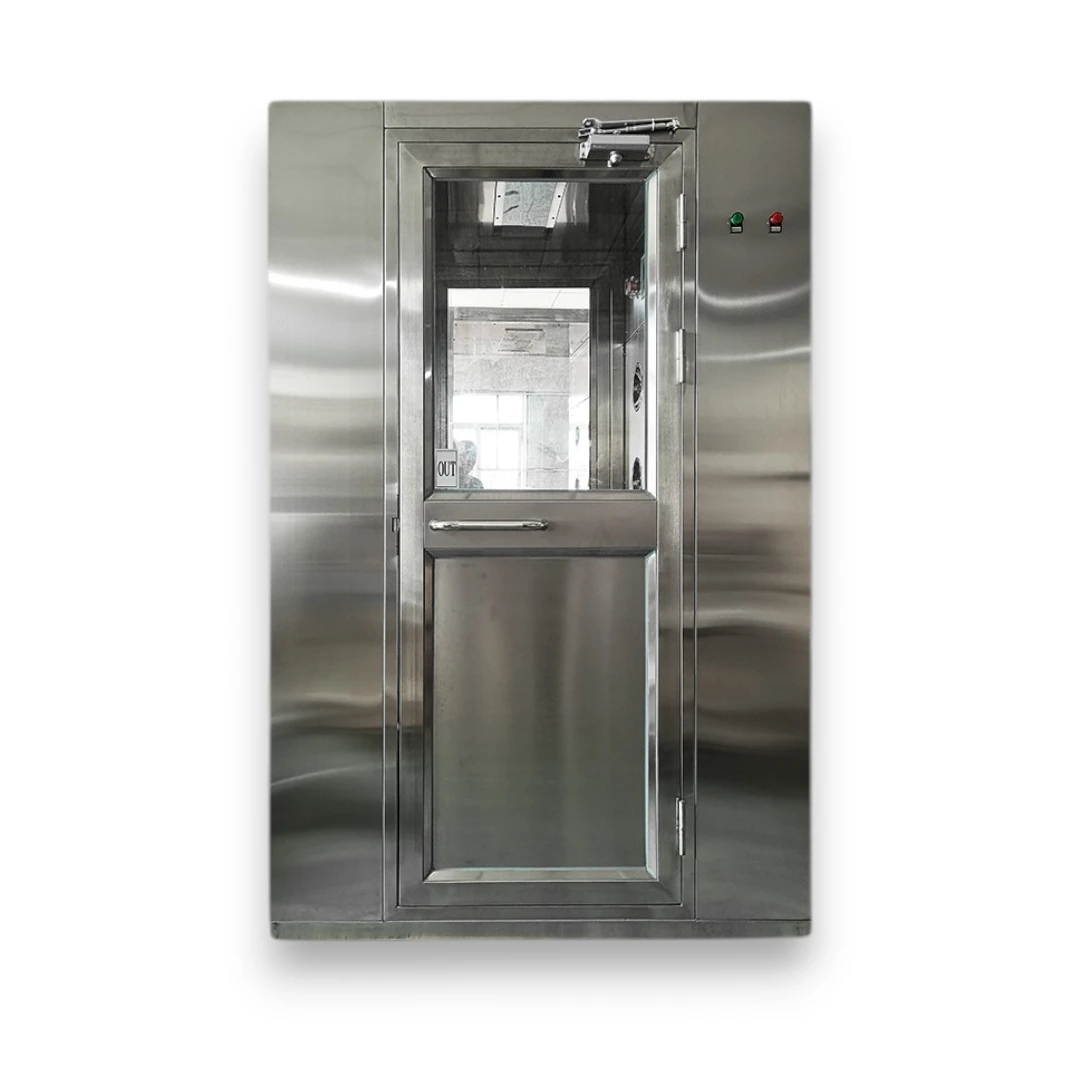

Stainless steel air shower is a necessary passage for person or goods entering into the clean room in order to minimize the amount of particulate contaminants.
| Model No. | AAS-1S-1290 | AAS-1D-1400 | AAS-1D-1590 | AAS-1T-1400 |
| ED
(L*D*H mm) |
1290*1000*2100 | 1400*1000*2100 | 1590*1000*2100 | 1400*1000*2180 |
| ID
(L*D*H mm) |
790*866*1935 | 790*866*1935 | 790*866*1935 | 790*866*1885 |
| Air velocity | 23-30m/s | |||
| No.of nozzle | 6 | 12 | 12 | 16 |
| No.of fan | 1 | 1 | 2 | 2 |
| Housing shell | Cold rolled steel with spraying plastic white color (optional),SS304;SS201;SS316 | |||
| Door | Polish skin steel single open | |||
| Controller | Electro inter-locking of shower and blower | |||
| Power supply | 380v AC.50Hz,3 Phase | |||
| Power consumption | 0.75KW | 1.5KW | 1.5KW | 1.5KW |
| Capacity of persons | 1 | 1-2 | 1-2 | 1-2 |
| Weight(Kg)
Approximate |
300 | 330 | 350 | 380 |
Be widely used in all types of cleanroom environments – semiconductor and microelectronics, medical & biological GMP manufacturing facilities, local clean zone, clean booths/as well as pharmaceutical and medical labs. The product is designed for use in Class 10 through Class 100,000 cleanroom
