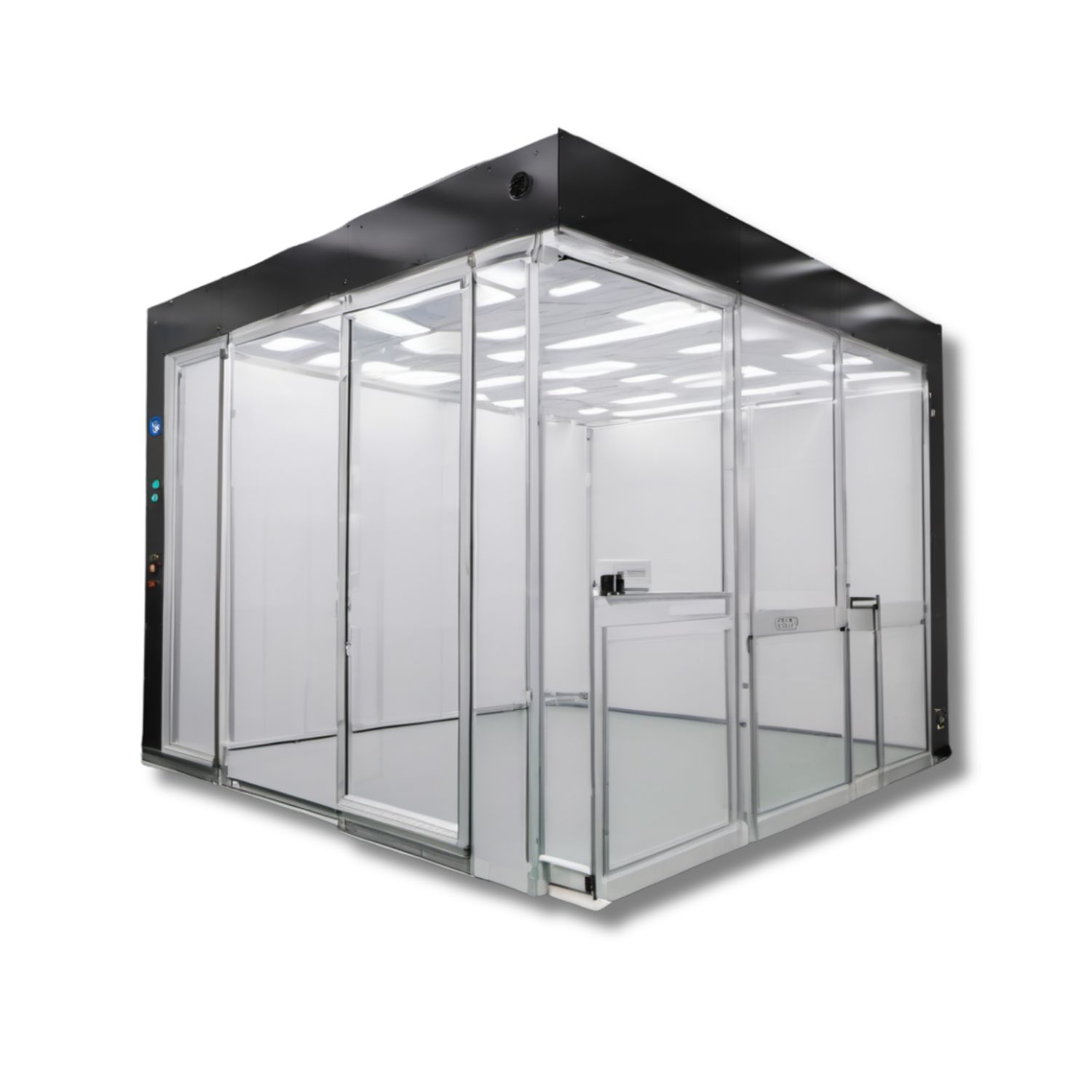

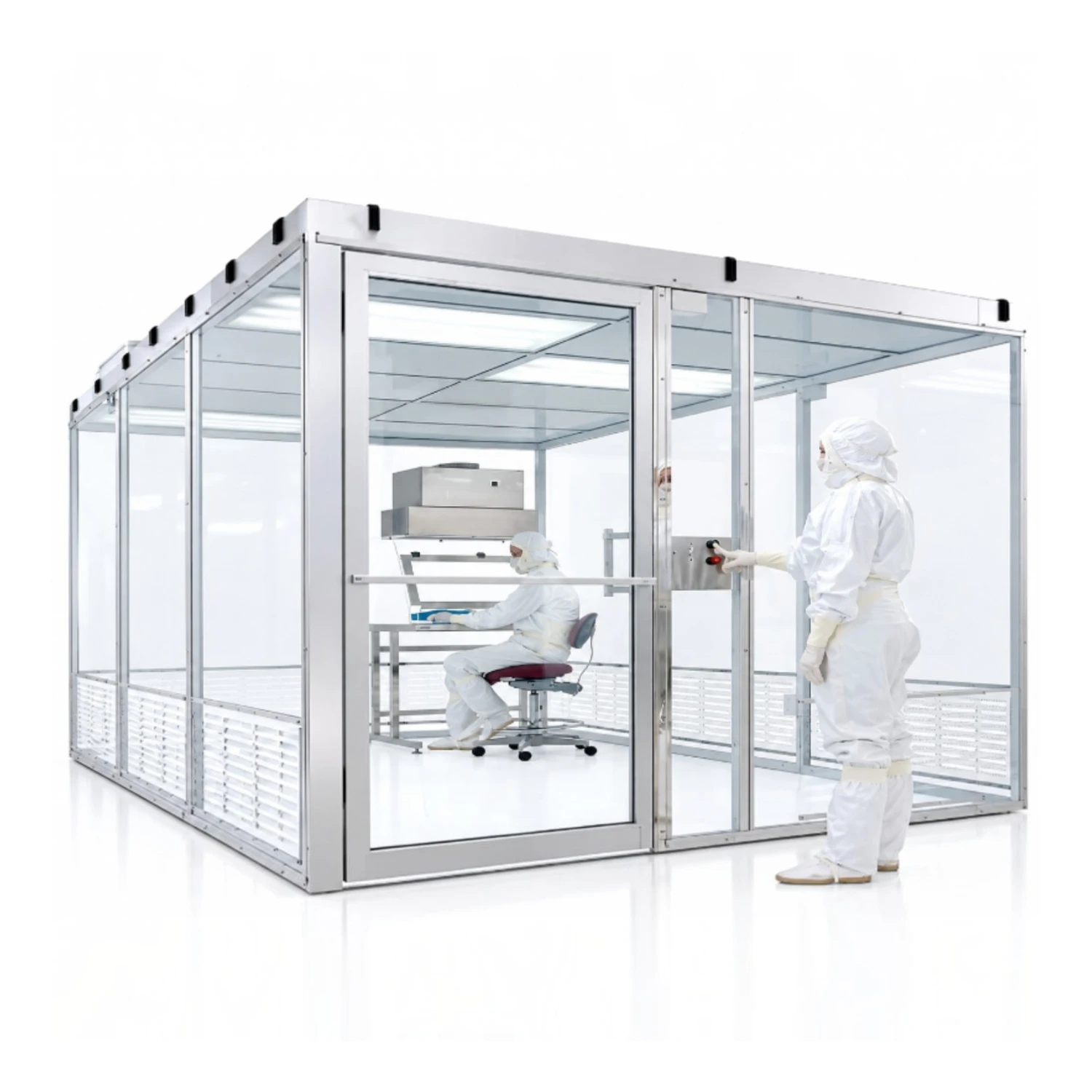

Hard Wall Clean Booth

Flair Hard Wall Clean Booth is a modular enclosed cleanroom system designed to create a controlled clean environment within an existing facility. Rigid wall panels, ceiling-mounted fan filter units (FFUs) and HEPA filtration work together to maintain the required cleanliness level and stable airflow inside the enclosed area.

The modular design enables fast installation, flexible sizing and future expansion, making it suitable for pharmaceutical, electronics, laboratory and precision manufacturing applications.

Key Benefits：

Modular & Expandable Design
HEPA-Filtered Clean Air
Fast On-Site Installation
Custom Sizes & Configurations

REQUEST A CUSTOM SOLUTION

ISO Class 5–8*

Cleanliness Level

HEPA / ULPA

Filtration

Modular Design

Construction

Custom Sizes

Dimensions

FFU System

Air Supply

Cleanliness level depends on FFU coverage, filtration configuration, airflow design and project requirements.

Why Choose a Hard Wall Clean Booth?

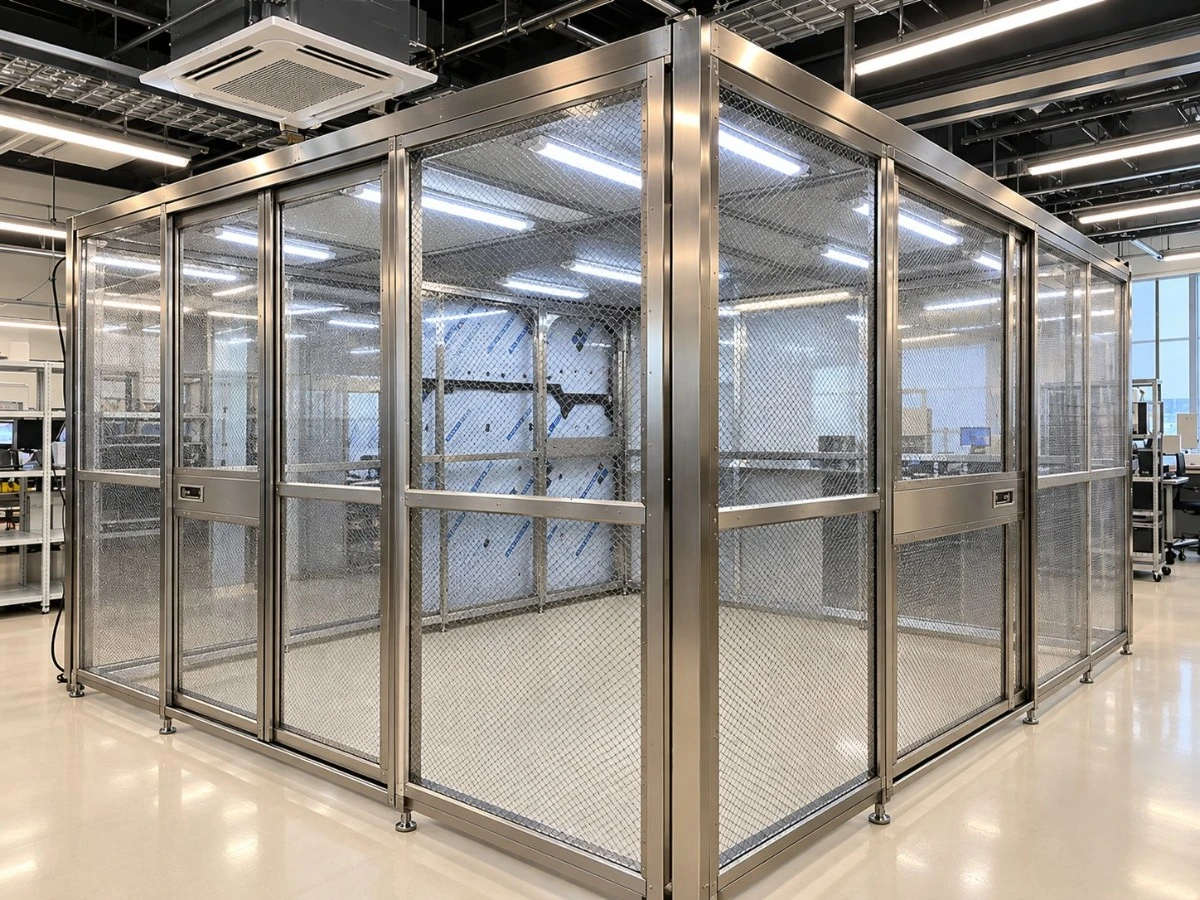

Modular Construction

Prefabricated frames and rigid wall panels enable flexible cleanroom layouts and efficient on-site assembly.

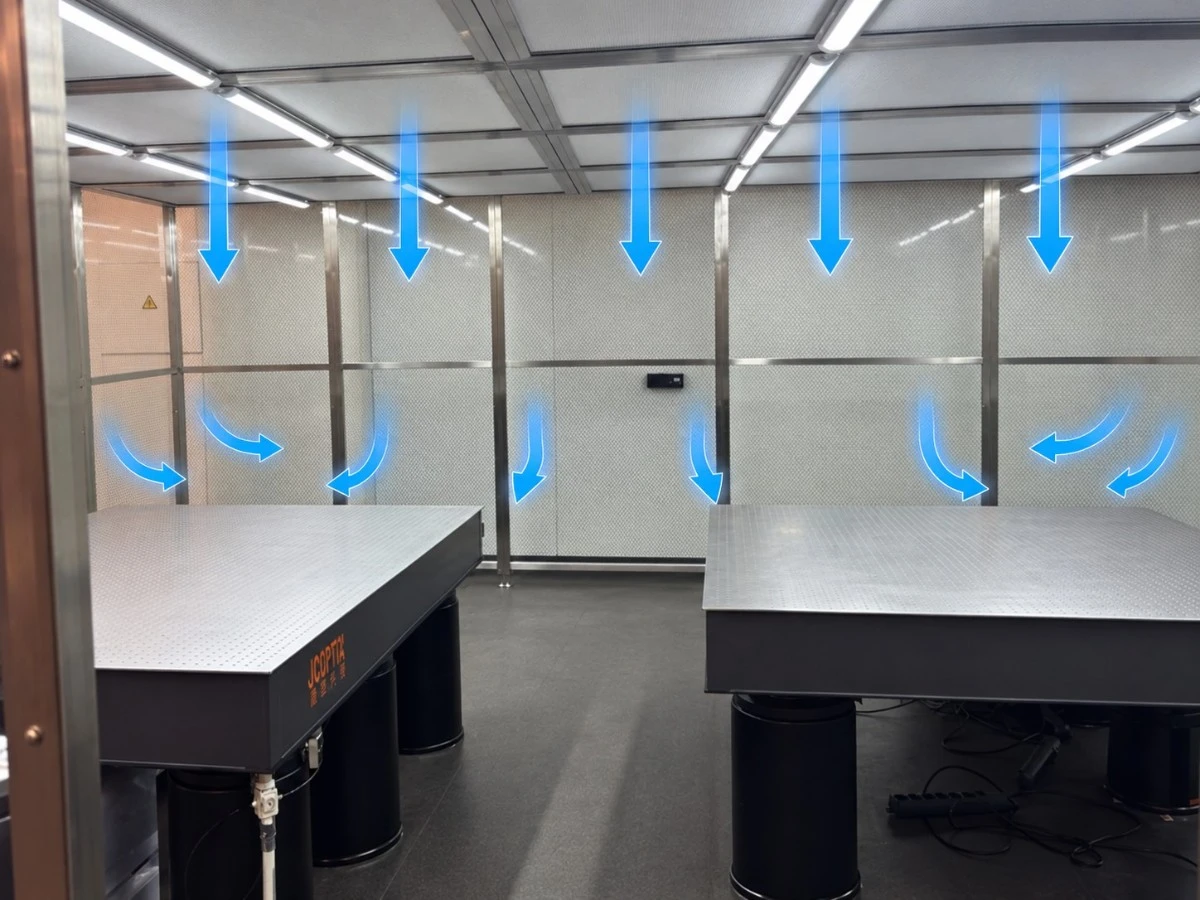

Stable Clean Environment

Rigid enclosures and controlled HEPA-filtered airflow help maintain a stable clean environment inside the booth.

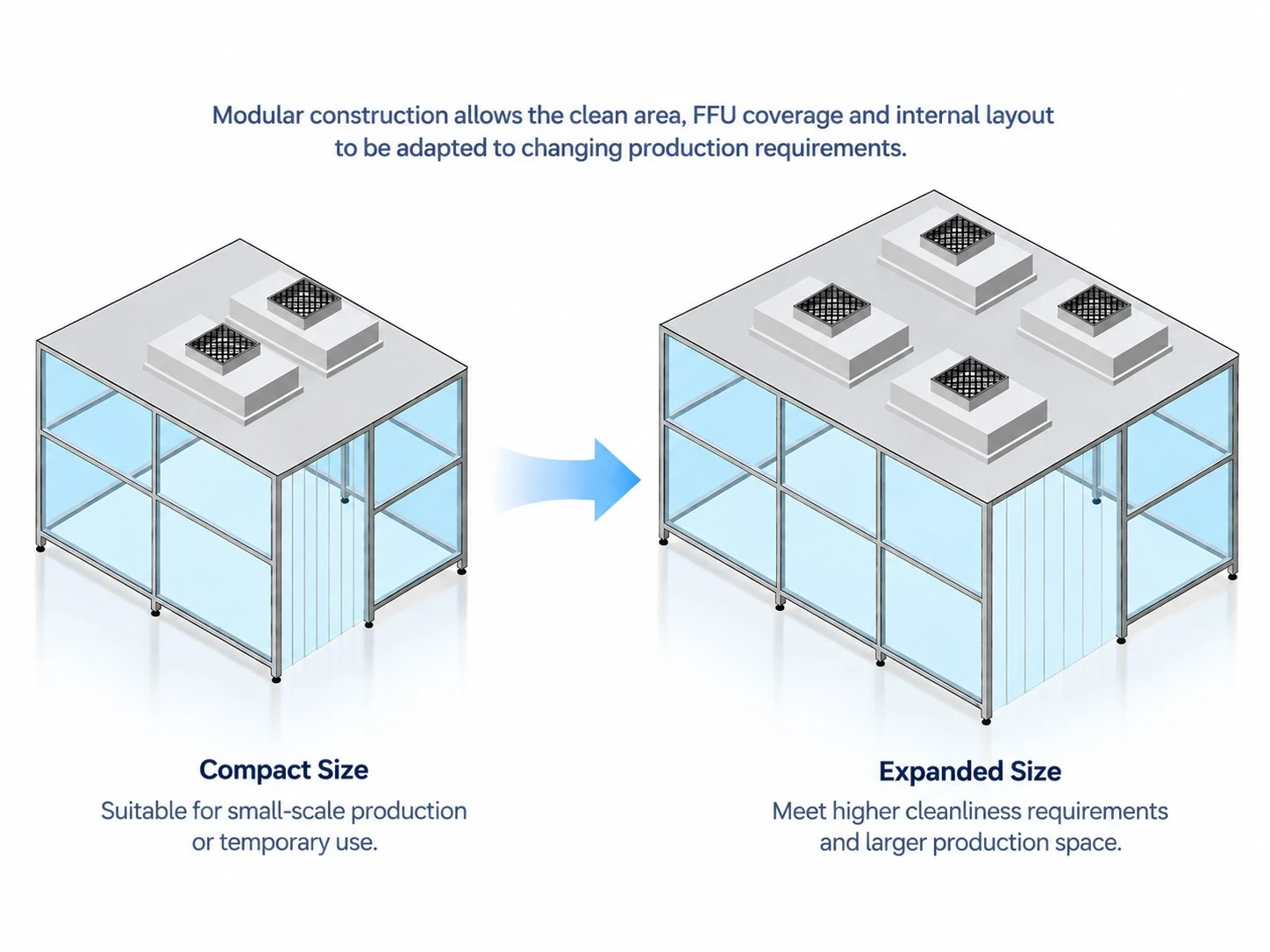

Flexible Expansion

Modular sections can be extended or reconfigured as production layouts and clean area requirements change.

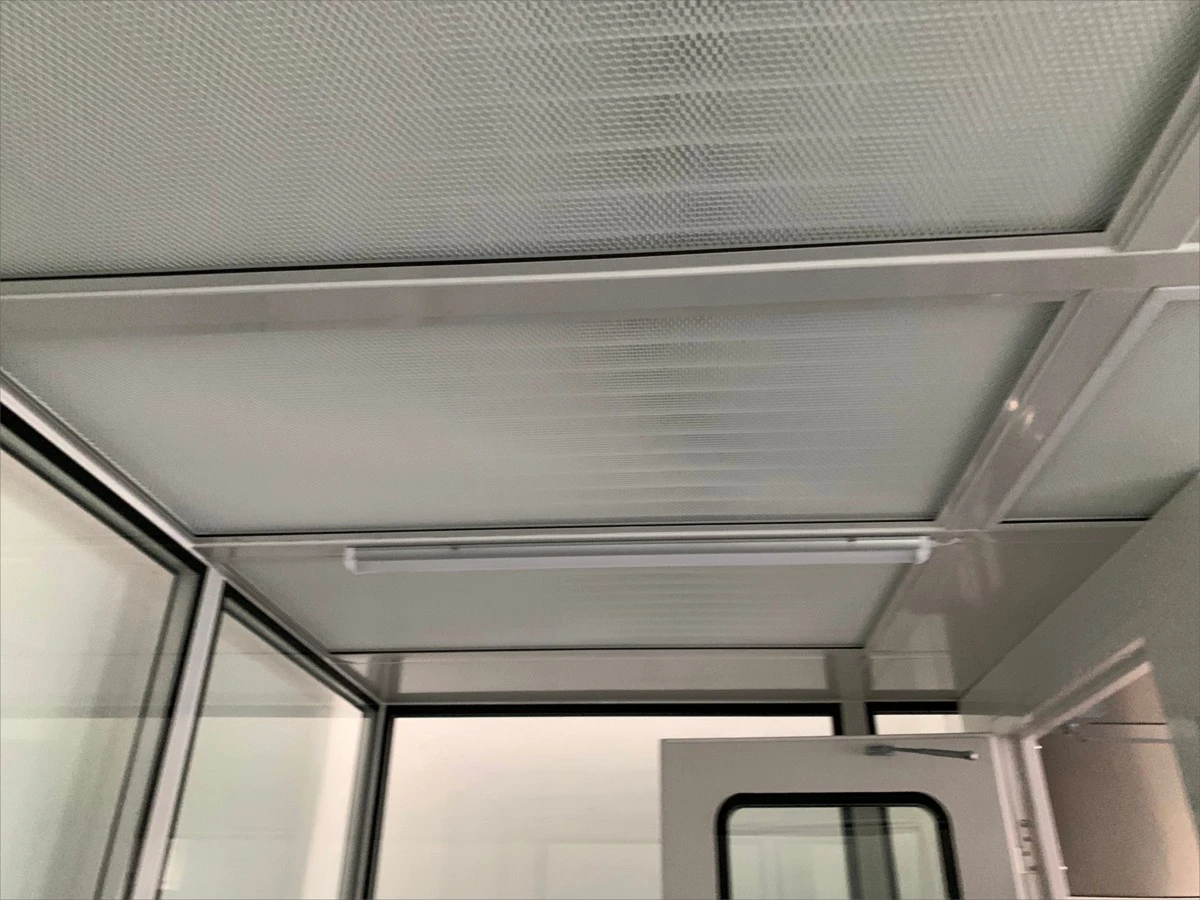

HEPA-Filtered FFU System

Ceiling-mounted FFUs continuously supply filtered air to maintain the required cleanliness level.

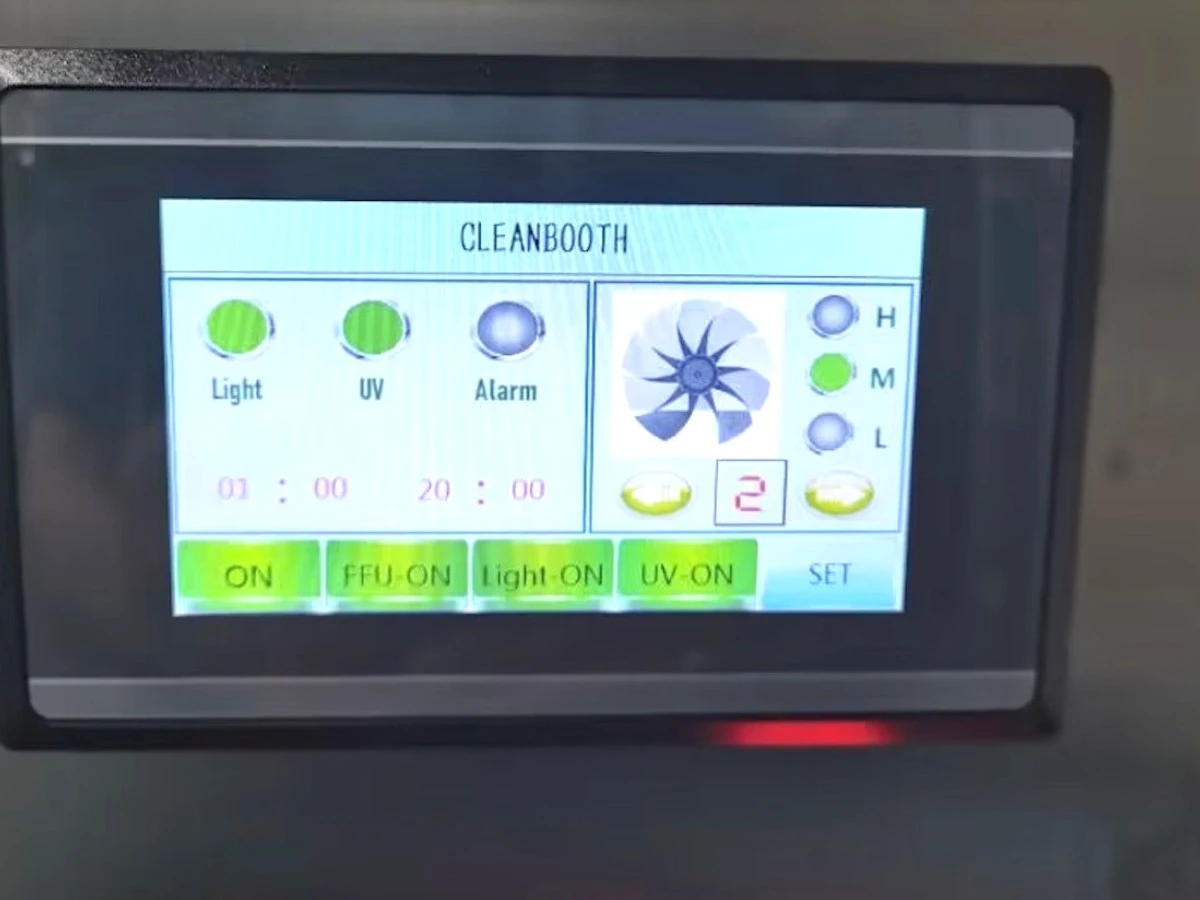

Clean booth touch screen intellgigent control Panel

Integrated Control System

Centralized controls simplify operation of FFUs, lighting and optional monitoring functions.

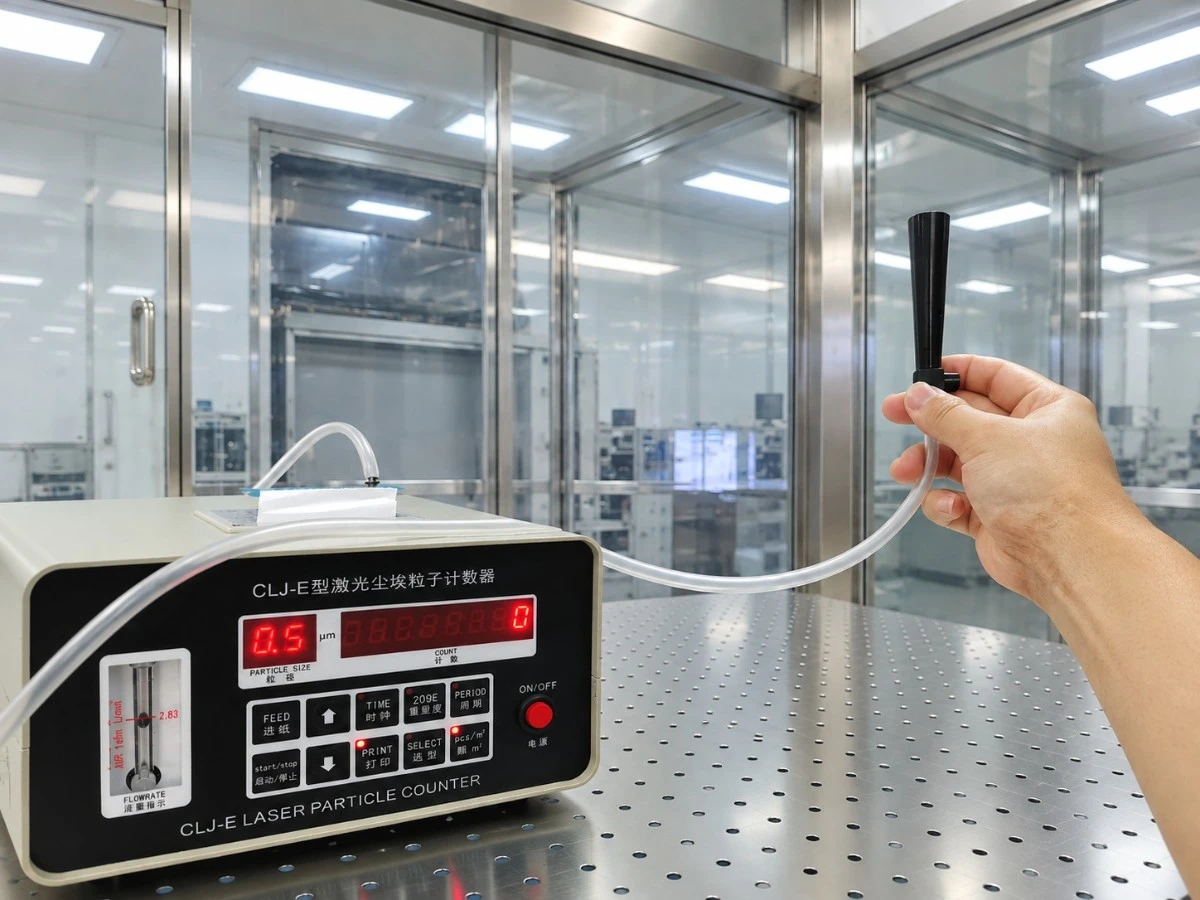

clean booth pre operation and test before delivery

Factory Pre-Assembly & Testing

Key modules are pre-assembled, checked and function-tested before delivery to verify structural fit, FFU operation, airflow and control functions before on-site installation.

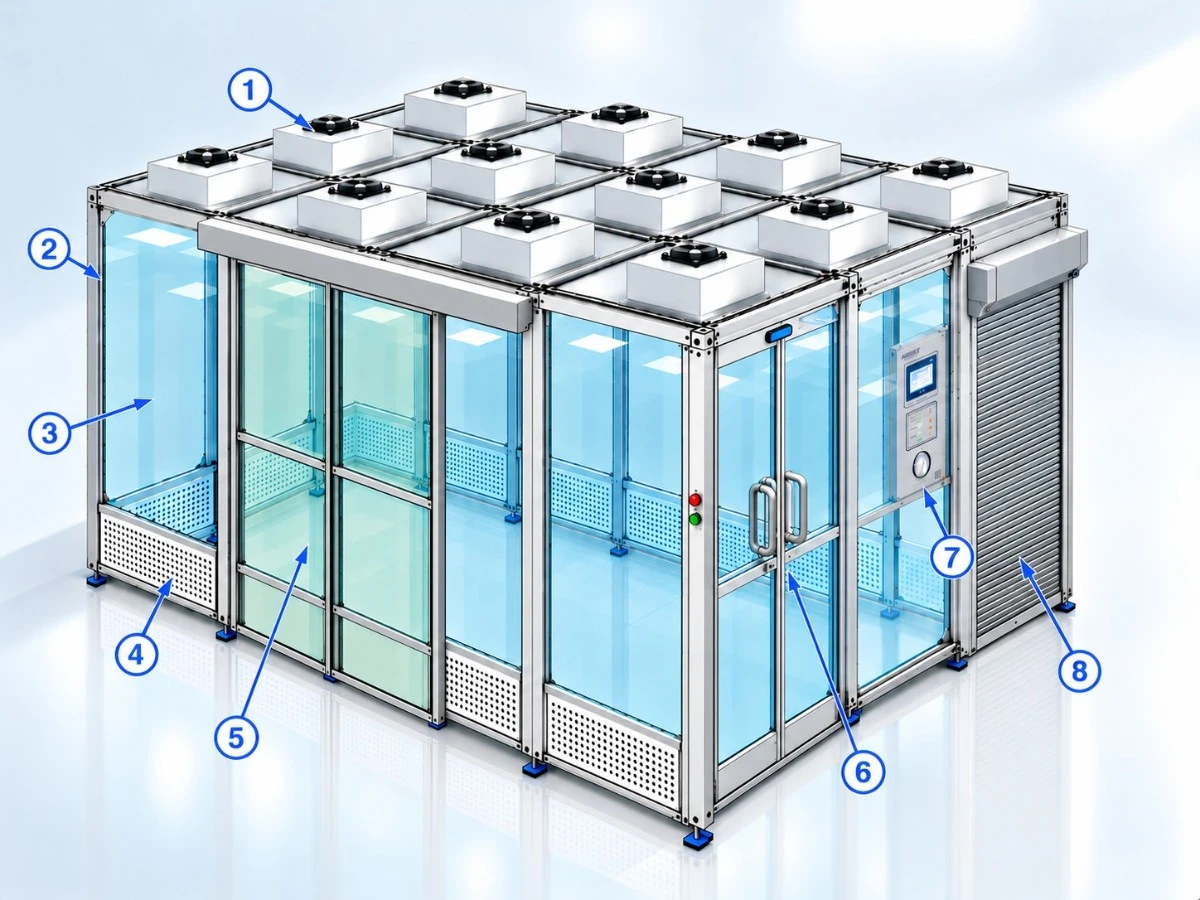

Modular Hard Wall Clean Booth Construction

① FFU Ceiling System
HEPA-filtered clean air supply from ceiling-mounted FFUs.

② Rigid Wall Enclosure
Solid wall panels isolate the clean zone from surrounding areas.

③ Air Exhaust Panel
Provides a controlled outlet for return/exhaust air.

④ Modular Aluminum Frame
Rigid modular structure for fast assembly and future expansion.

⑤⑥⑧ Doors & Access
Sliding, swing and fast roll-up doors for personnel and material access.

⑦ Control & Monitoring
Centralized control of FFUs, lighting and optional monitoring.

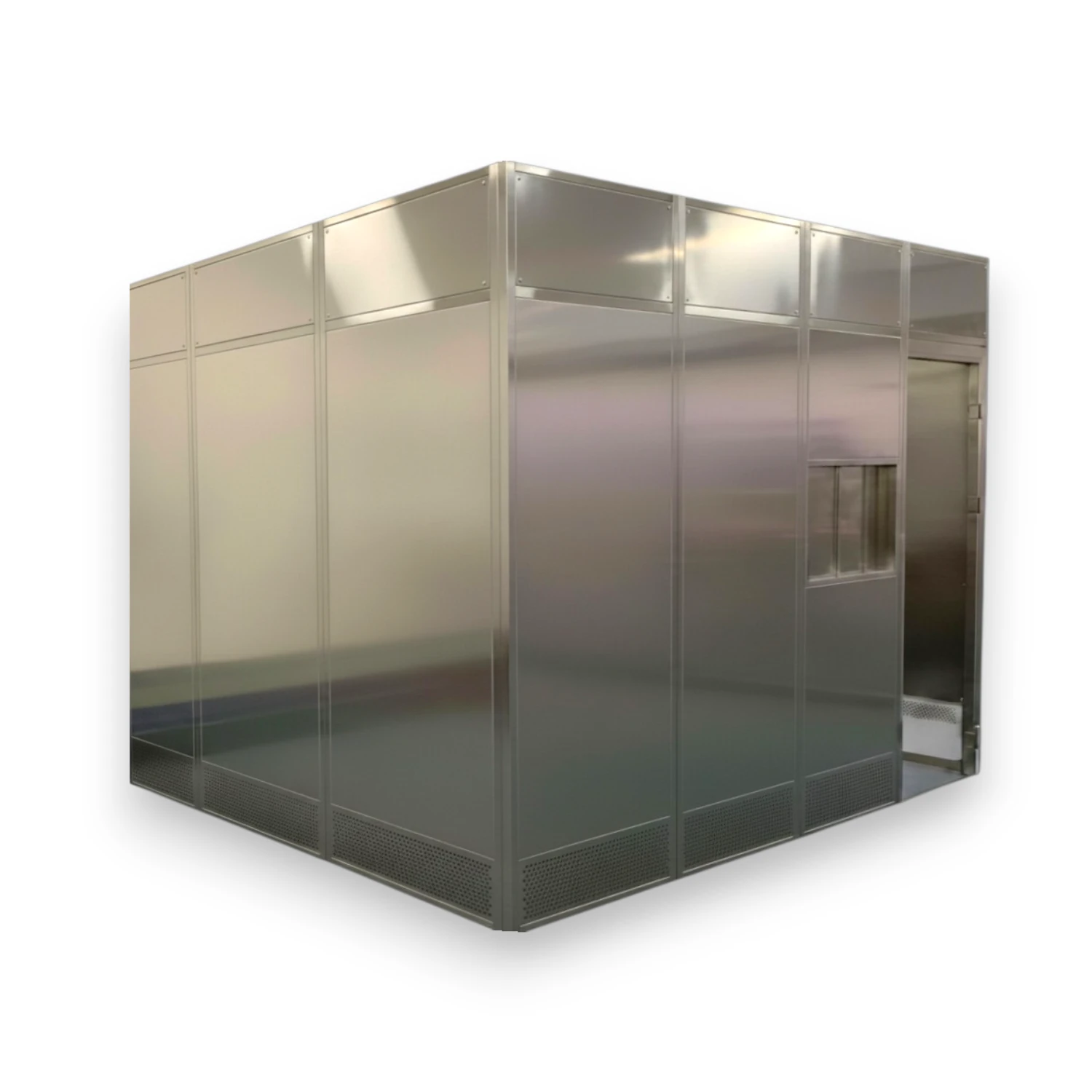

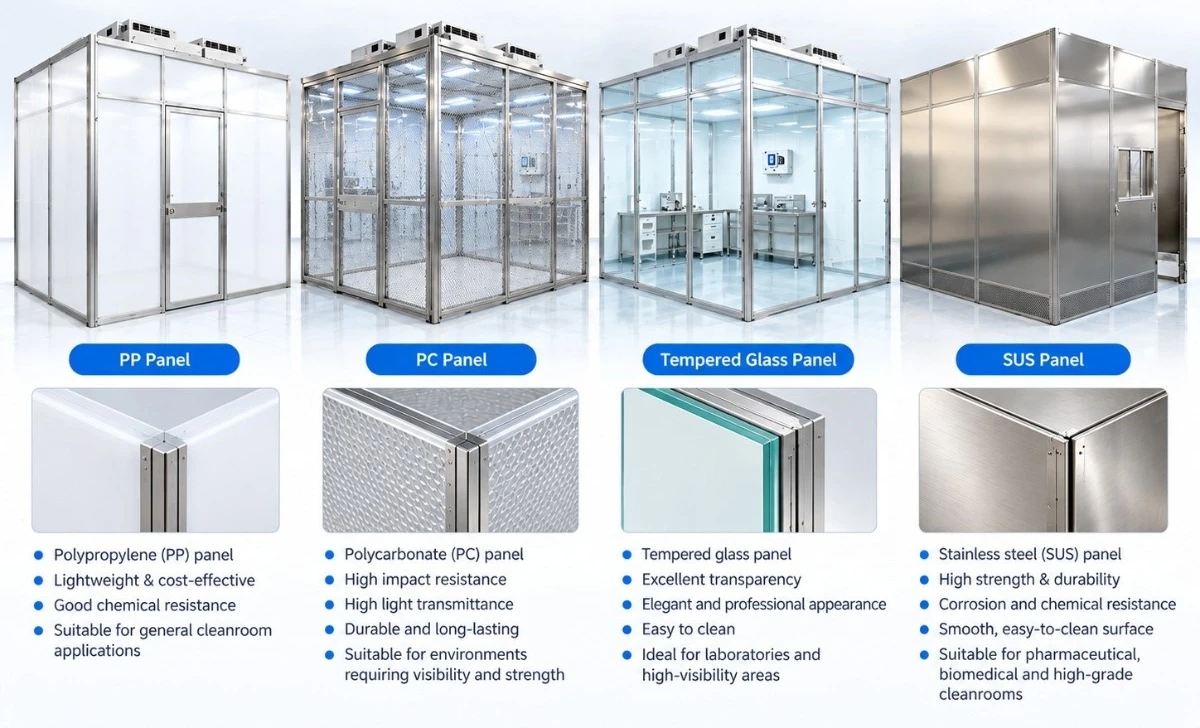

Hard Wall Panel Options

Choose wall materials based on visibility, durability, cleanability and project requirements.

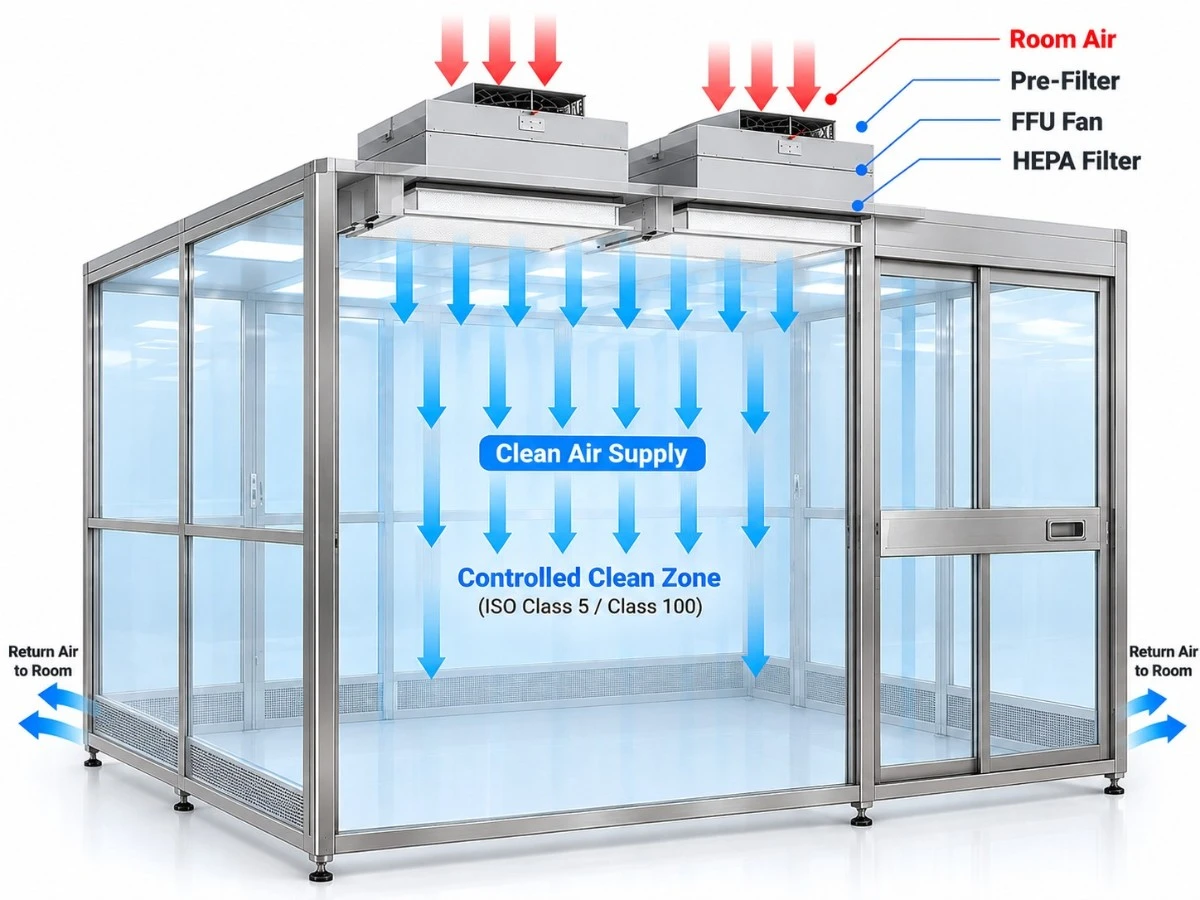

How Does a Hard Wall Clean Booth Work?

① Room Air Intake
Room air is drawn into the ceiling-mounted FFUs through the pre-filter.

② HEPA Filtration
Air passes through the HEPA filter to remove airborne particles.

③ Clean Air Supply
Filtered air flows downward into the enclosed clean zone.

④ Air Return / Exhaust
Air leaves through the lower exhaust panels, continuously removing airborne contamination.

Continuous airflow helps maintain the required cleanliness level inside the controlled zone.

Typical FFU-based airflow configuration. Actual airflow design depends on project requirements.

Technical Specification

Specification	Available Configuration
Cleanliness Class	ISO Class 5–8, configuration dependent
Booth Dimensions	Unidirectional / Non-unidirectional, project dependent
Wall Material	Tempered Glass / Acrylic / Sandwich Panel / Other Options
Frame Material	Aluminum Profile / Stainless Steel
Air Supply	Ceiling-Mounted FFU System
Final Filter	HEPA H13/H14 / ULPA optional
Airflow Pattern	Unidirectional / Non-unidirectional, project dependent
Lighting	LED
Access Door	Swing / Sliding
Power Supply	Customized by project
Control System	Centralized FFU / Lighting Control
Installation	Modular / On-Site Assembly

Custom Hard Wall Clean Booth Configuration

Each hard wall clean booth is configured according to site conditions, cleanliness requirements and process layout.

→Booth Dimensions

Custom width, depth and height according to available space and process requirements.

→Cleanliness Level

Configured according to the required ISO class and process conditions.

→FFU Quantity & Layout

FFU coverage is selected based on booth size, cleanliness level and airflow requirements.

→Door Configuration

Swing, sliding or customized access arrangements for personnel and material flow.

→Utilities & Monitoring

Optional lighting, sockets, differential pressure monitoring and control functions.

→Installation Conditions

Designed according to ceiling height, floor conditions, site access and the existing facility layout.

REQUEST A CUSTOM CONFIGURATION

Applications

Hard wall clean booths provide enclosed clean environments for contamination-sensitive manufacturing, research and controlled processing applications.

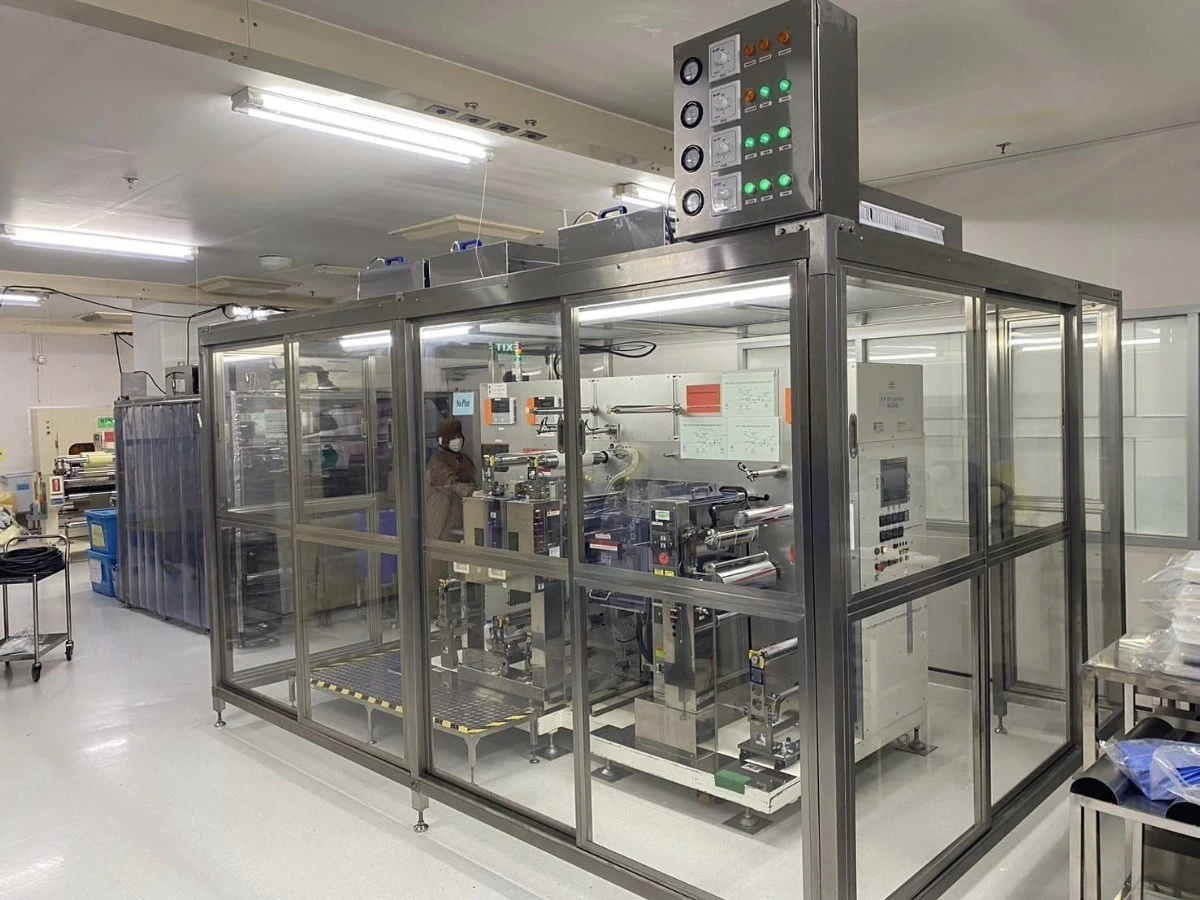

Optics & Precision Manufacturing

Clean environments for optical components, precision instruments and other particle-sensitive processes.

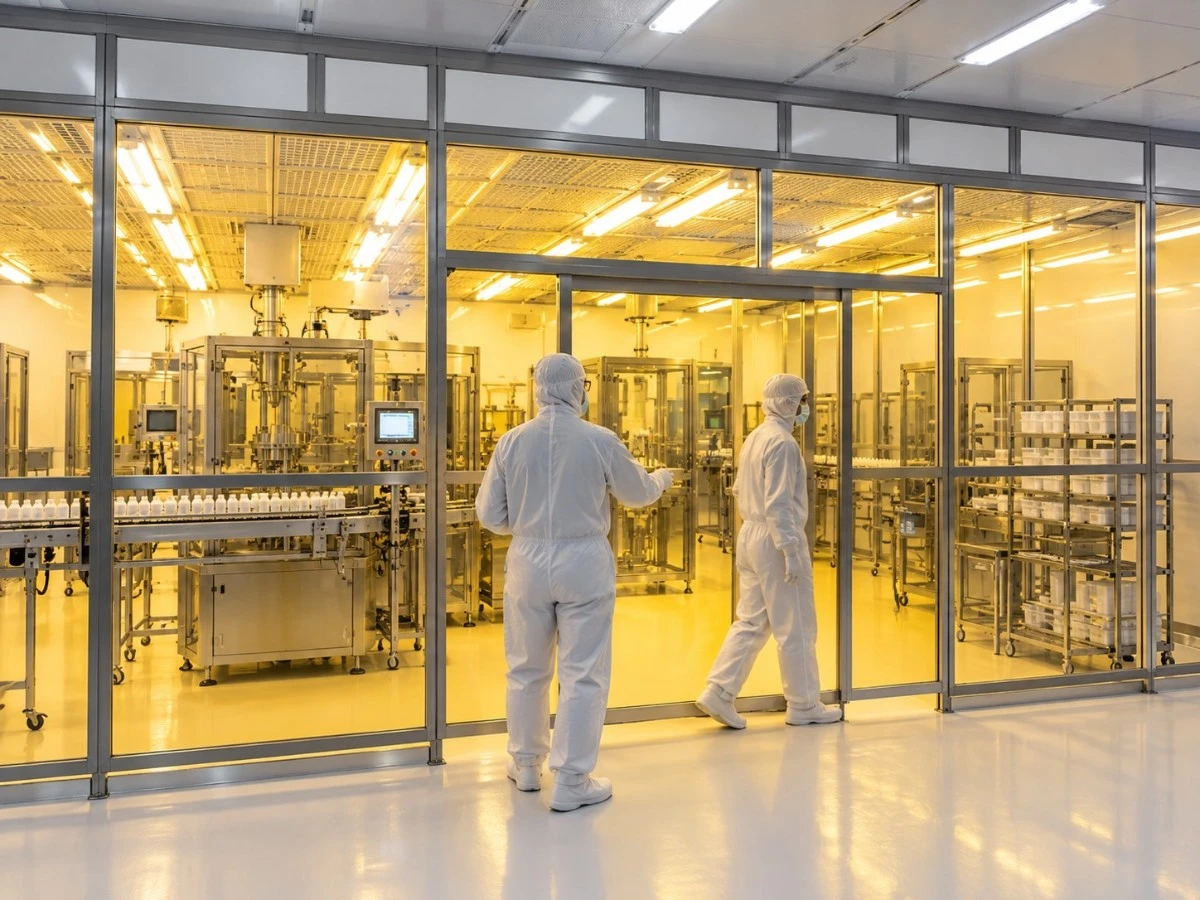

Pharmaceutical & Medical Device

Modular clean environments for non-hazardous production, packaging and controlled processing operations.

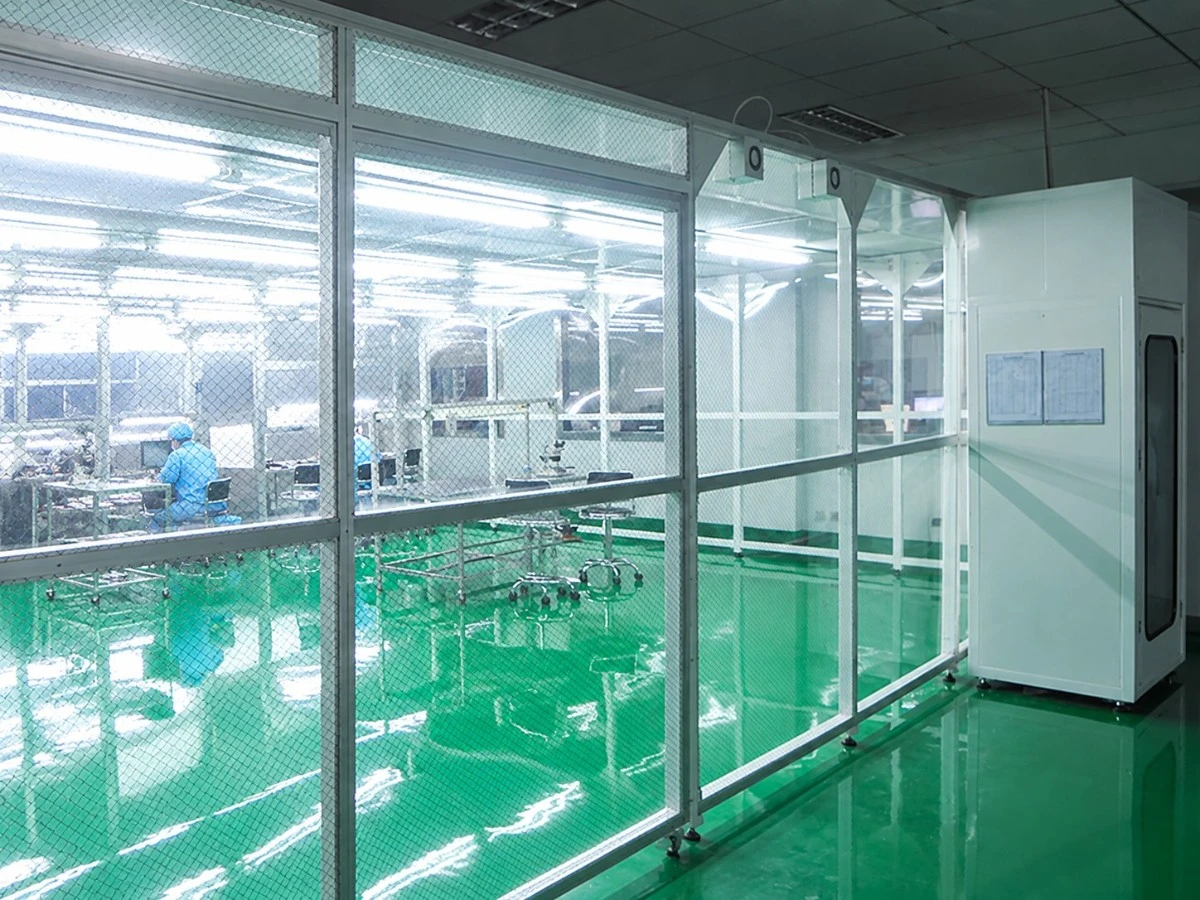

Laboratory & Research

Flexible enclosed clean zones for research, testing and contamination-sensitive laboratory processes.

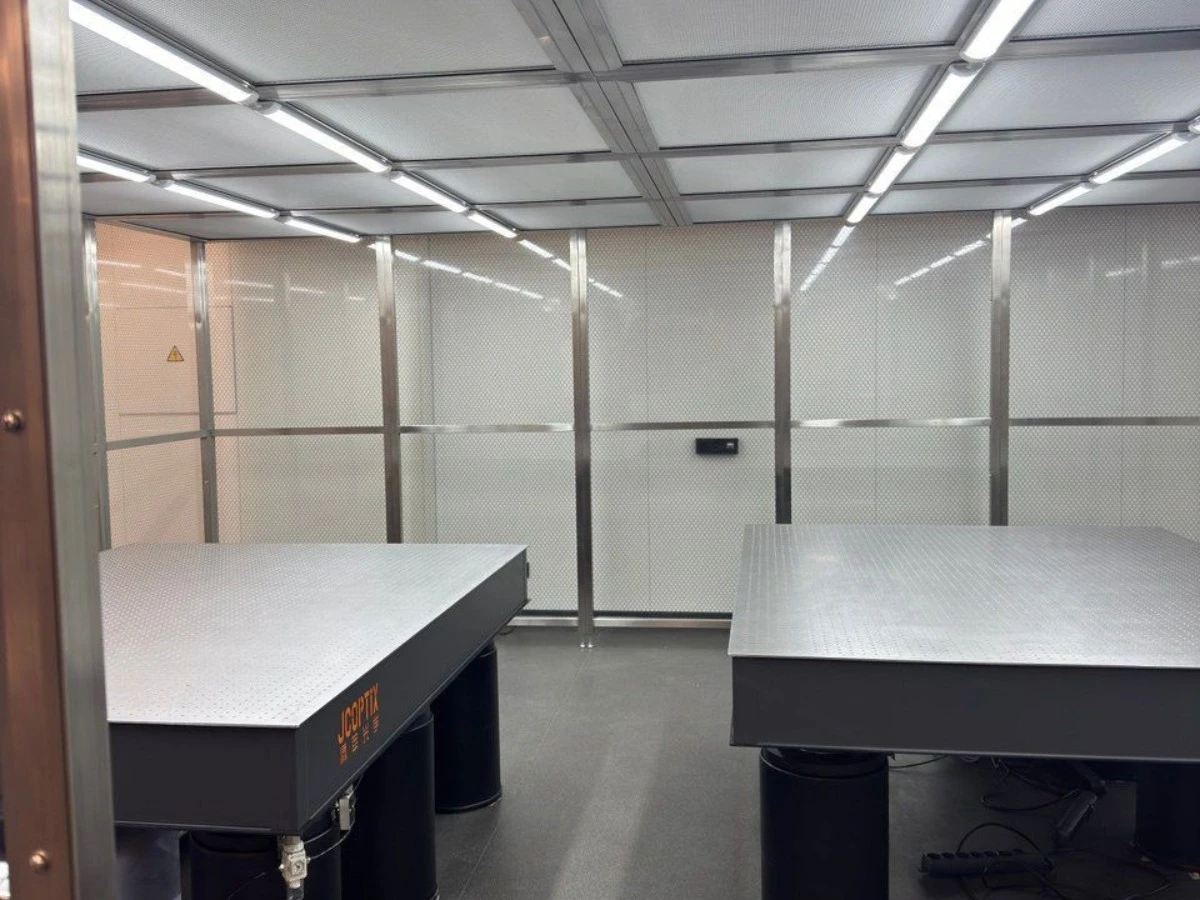

Electronics & Semiconductor

Controlled clean areas for electronics assembly, inspection and particle-sensitive manufacturing processes.

FAQs

Send us your booth dimensions, cleanliness class and project requirements for a customized solution.

1. What is a hard wall clean booth?

A hard wall clean booth is a modular enclosed clean area designed to provide a controlled environment for contamination-sensitive processes. It typically combines rigid wall panels, an aluminum frame, ceiling-mounted FFUs with HEPA or ULPA filtration, lighting, access doors and a control system.

Compared with an open clean zone or soft-wall clean booth, the rigid enclosure provides better physical separation from the surrounding environment and helps maintain more stable airflow and cleanliness conditions. Hard wall clean booths are commonly used in electronics, pharmaceutical, laboratory, medical device and precision manufacturing applications.

2. What is the difference between a hard wall and soft wall clean booth?

The main difference is the enclosure structure. A hard wall clean booth uses rigid panels such as PP, PC, tempered glass or stainless steel, while a soft wall clean booth typically uses flexible PVC curtains.

Hard wall construction provides better environmental separation, a more permanent structure and greater flexibility for integrating doors, monitoring systems and other project-specific features. Soft wall clean booths are generally simpler and more suitable for applications requiring flexible access or a more economical localized clean area.

3. What cleanliness class can a hard wall clean booth achieve?

A hard wall clean booth can typically be configured for ISO Class 5 to ISO Class 8, depending on the application and project requirements.

The achievable cleanliness level depends on factors such as FFU quantity and ceiling coverage, HEPA/ULPA filter efficiency, airflow volume, enclosure sealing, room conditions and personnel or material activity. The final configuration should therefore be selected according to the required cleanliness level, booth dimensions and process conditions.

4. How is the required number of FFUs determined?

The required FFU quantity is determined according to the booth dimensions, target cleanliness class, airflow requirements, ceiling coverage and process conditions.

Larger booths or applications requiring higher cleanliness levels generally require greater filtered airflow and FFU coverage. Flair can configure the FFU quantity and ceiling layout according to the required booth size and cleanliness target rather than using a fixed number of units for every project.

5. Can the size and layout be customized?

Yes. Hard wall clean booths can be customized according to the available installation space, production layout and cleanliness requirements.

Custom options may include booth dimensions, cleanliness class, FFU quantity and layout, wall panel material, sliding or swing doors, fast roll-up doors, lighting, electrical outlets, control systems and environmental monitoring functions.

For project selection, customers can provide the required W × D × H dimensions, cleanliness class, process layout, wall material and access requirements for configuration.

6. Can a hard wall clean booth be expanded or relocated?

Yes. The modular frame and panel construction allows many hard wall clean booth configurations to be expanded, modified or relocated when production requirements change.

Depending on the original design and site conditions, wall panels, ceiling modules, FFUs and access components can be reconfigured or extended. For projects where future expansion or relocation is expected, this requirement should be considered during the initial booth design.
