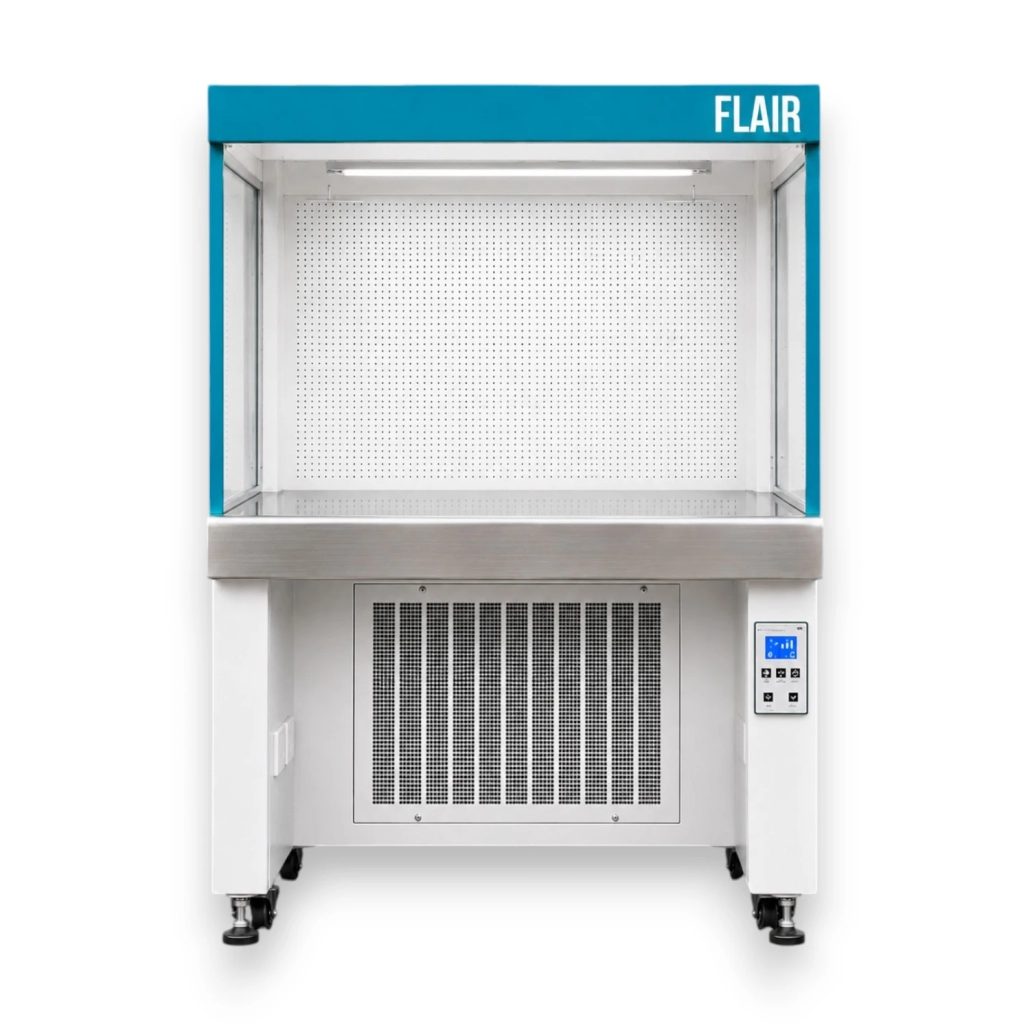

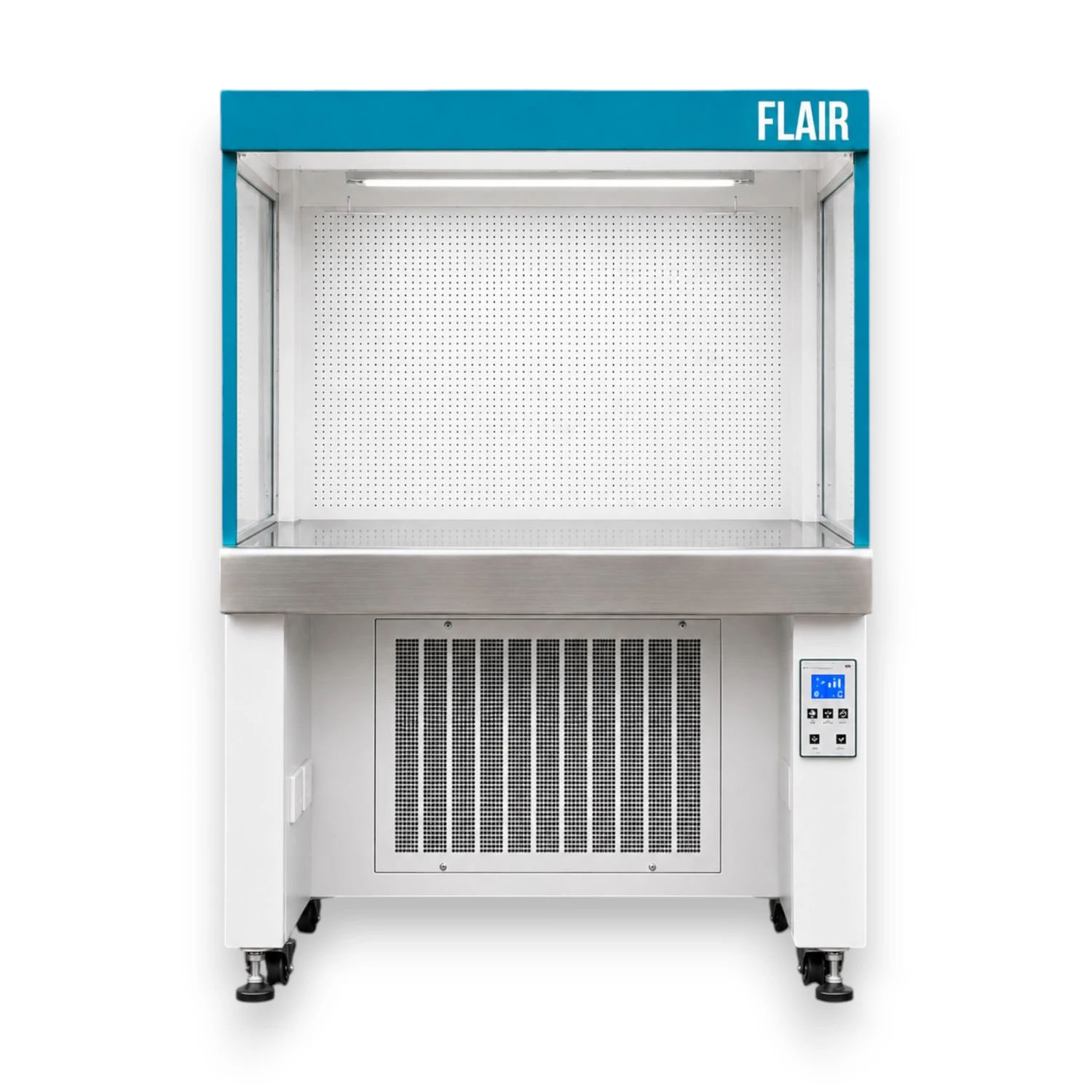

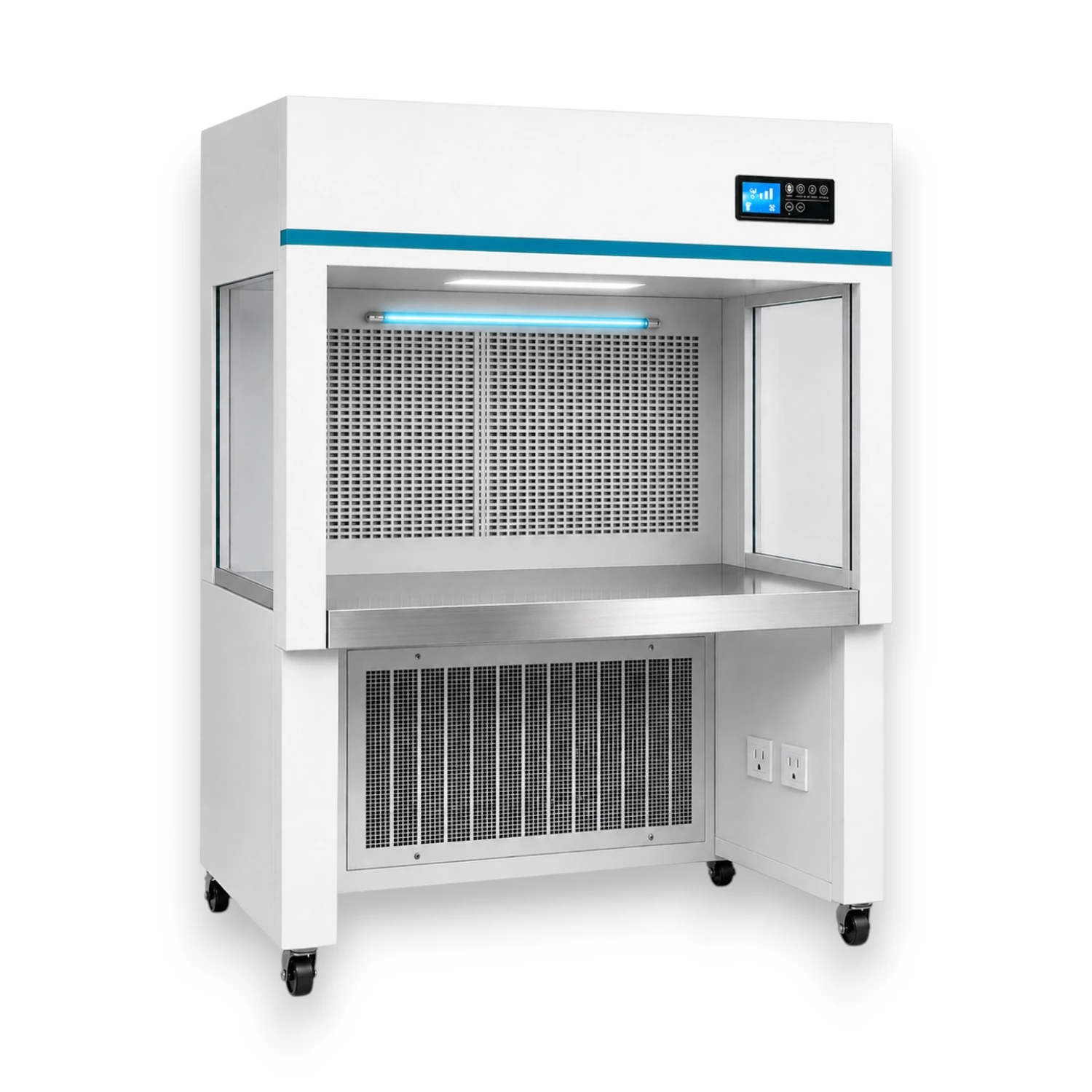

Horizontal Laminar Flow Clean Bench

Flair Horizontal Laminar Flow Clean Bench provides an ISO Class 5 localized clean work zone with HEPA-filtered airflow supplied horizontally across the working area.

The rear-mounted HEPA filtration system delivers uniform unidirectional airflow toward the open front, helping protect non-hazardous samples, components and critical processes from airborne particle contamination.

Key Benefits：

Rear-Mounted H14 HEPA Filtration
Uniform Horizontal Laminar Airflow
Open & Unobstructed Work Zone

REQUEST A QUOTE

ISO Class 5

Clean Work Zone

H14 HEPA

Filtration

0.3-0.5 m/s

Air Velocity

Horizontal Flow

Airflow Pattern

Multiple Sizes

Custom Available

Key Features

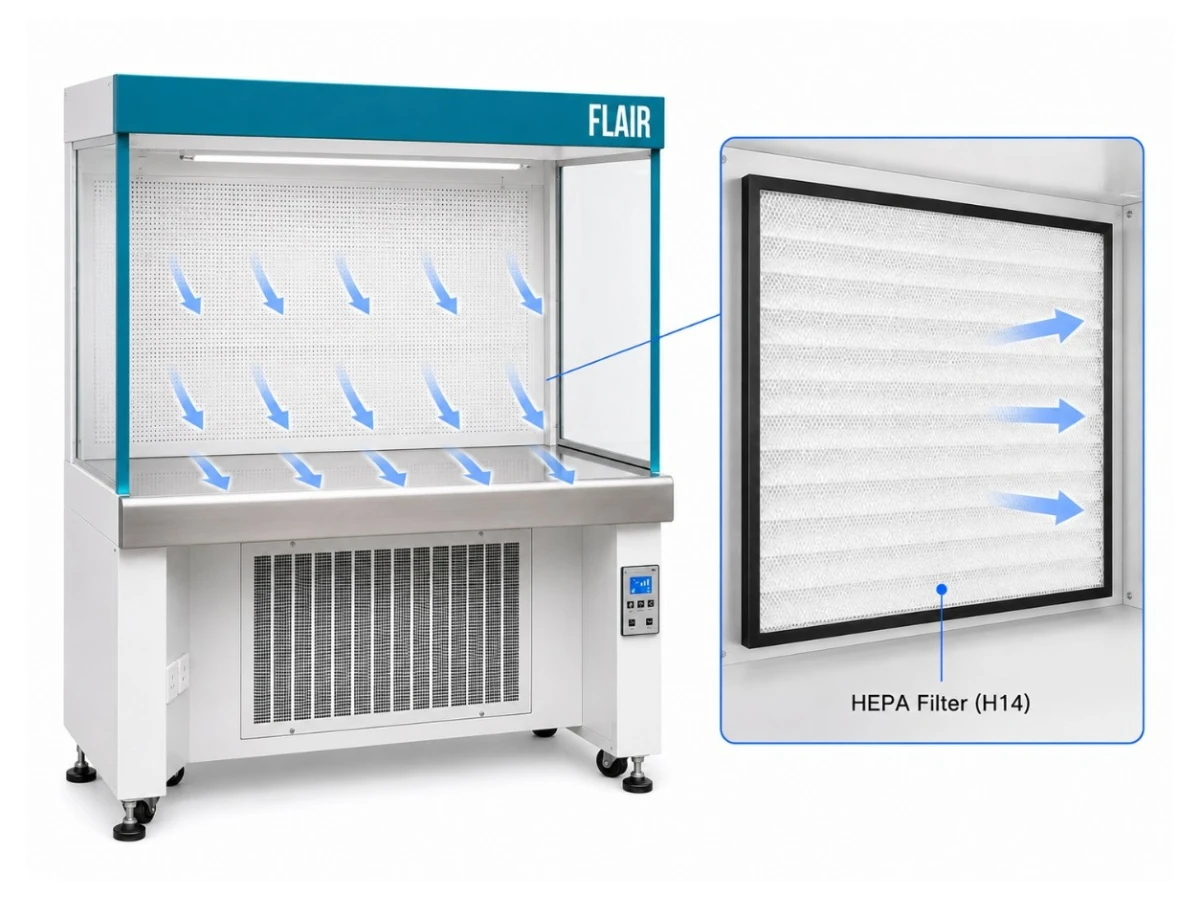

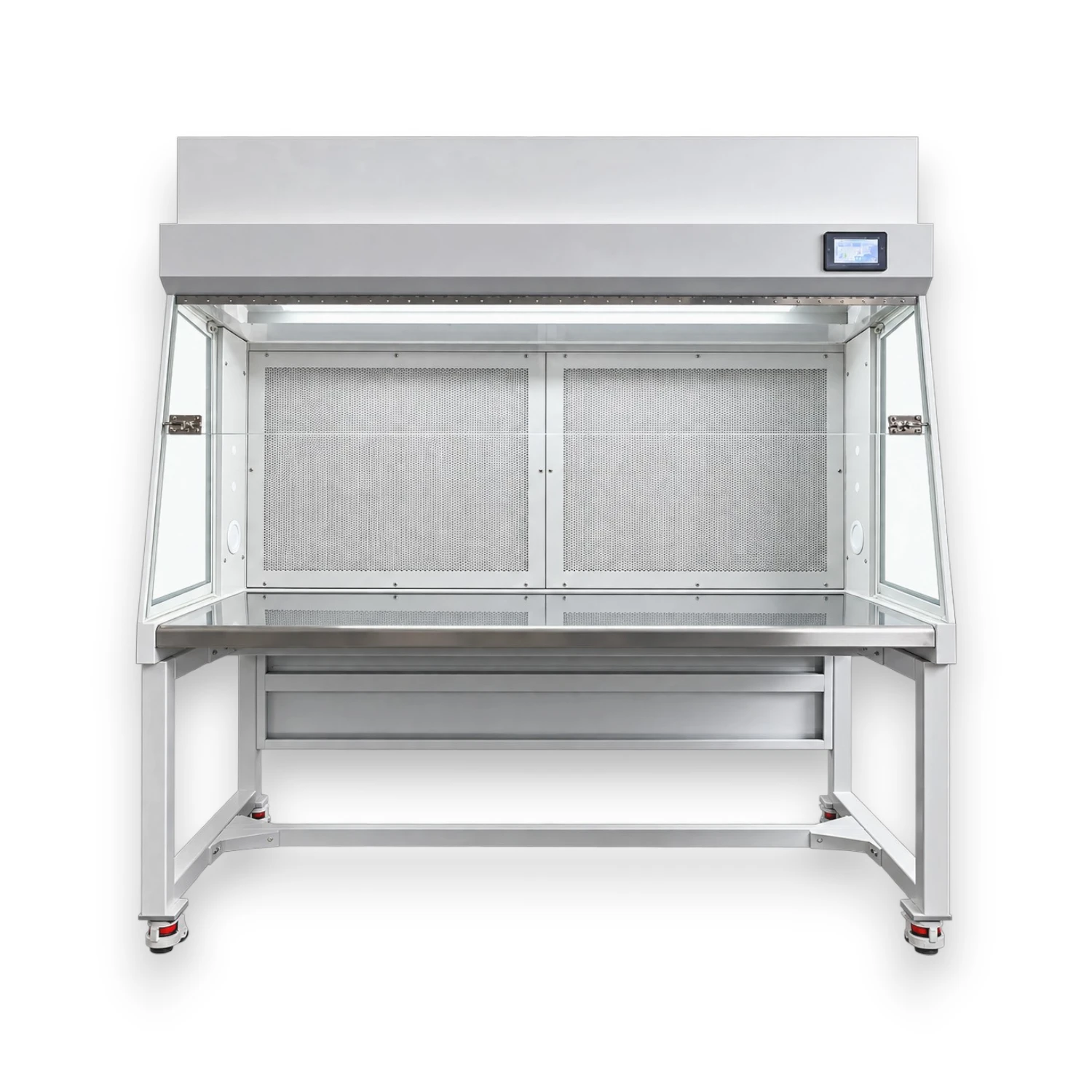

Rear-Mounted H14 HEPA Filter of Horizontal laminar flow clean bench

Rear-Mounted H14 HEPA Filtration

The rear-mounted H14 HEPA filter supplies high-efficiency filtered air directly across the work zone, helping maintain an ISO Class 5 environment for contamination-sensitive processes.

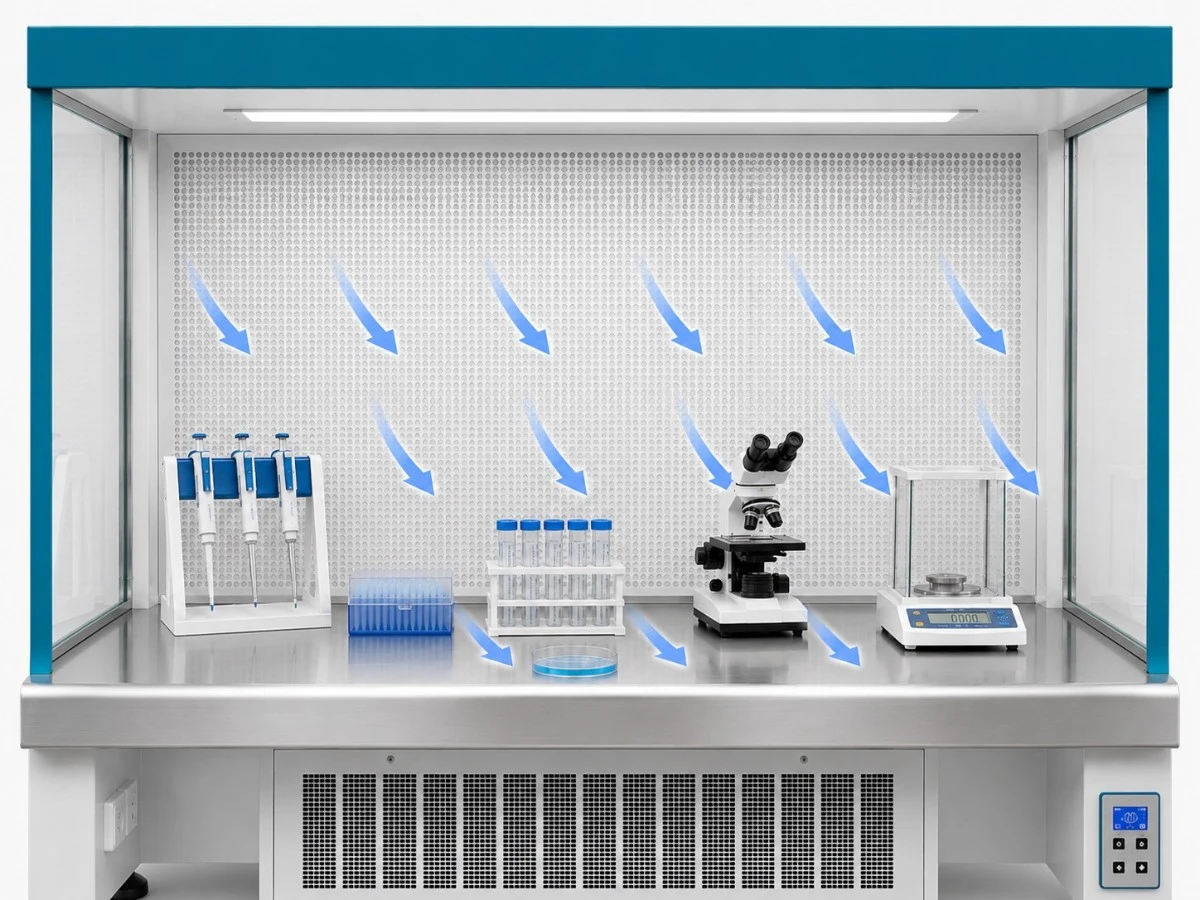

Uniform Horizontal Laminar Airflow

HEPA-filtered air flows uniformly from the rear of the bench toward the open front, continuously sweeping airborne particles away from the critical work area.

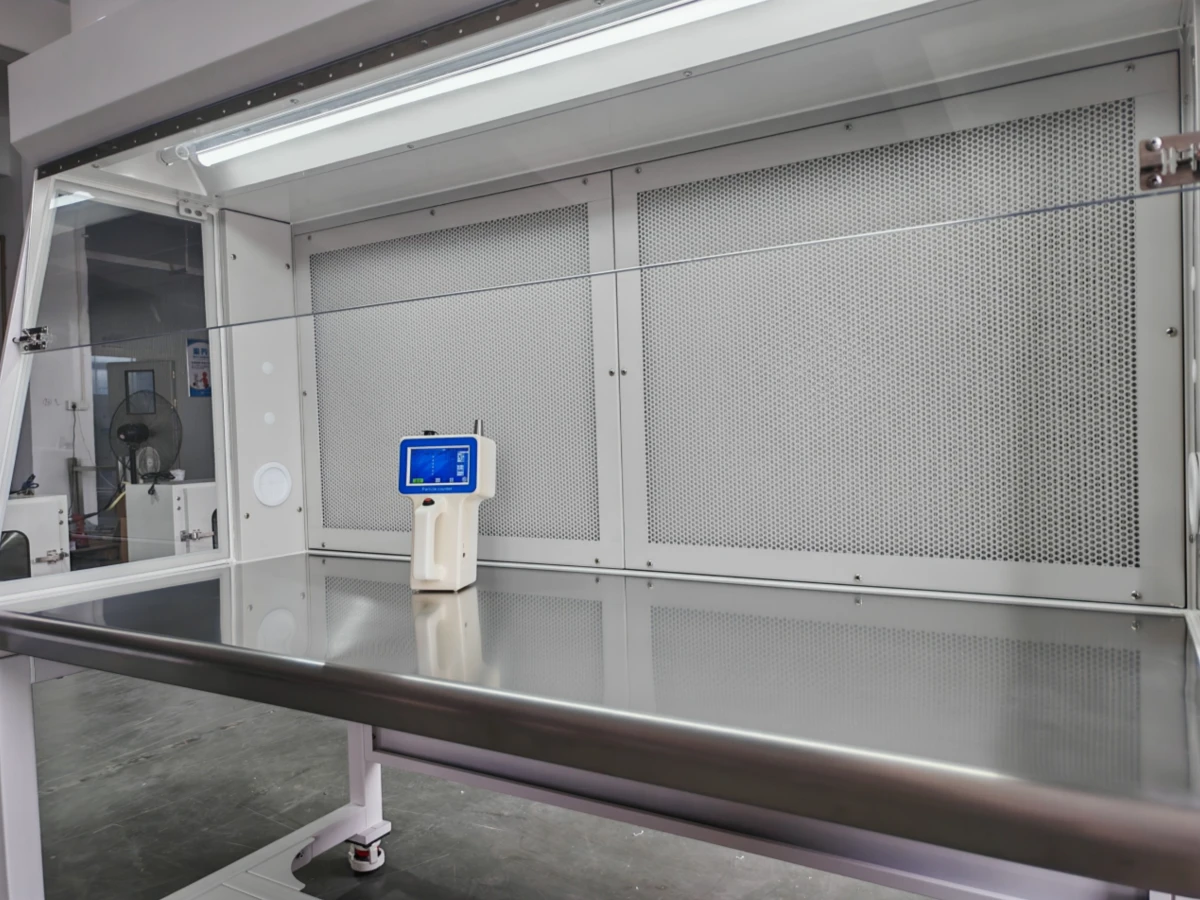

Horizontal laminar flow clean bench clean bench ss worktable

Open & Unobstructed Work Zone

The rear-mounted filtration design provides a spacious work area with clear overhead access for samples, instruments and precision components.

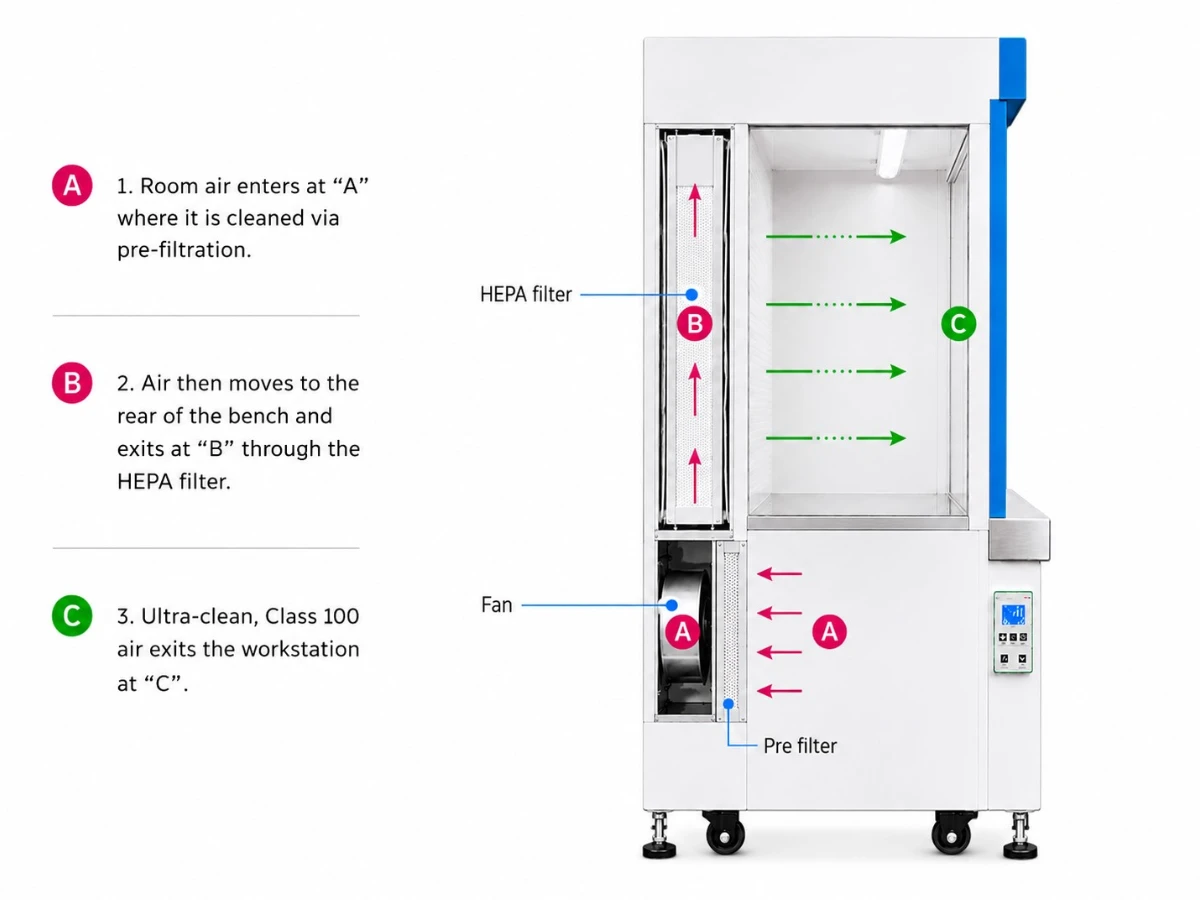

How Does a Horizontal Laminar Flow Clean Bench Work?

Room air is pre-filtered and delivered through the rear-mounted HEPA filter to create uniform horizontal airflow across the clean working area.

Horizontal laminar flow clean bench Working principle

① Room Air Intake

Ambient room air enters the unit through the air intake.

② Pre-Filtration

The pre-filter captures larger airborne particles.

③ Fan & Air Supply

The fan supplies stable airflow through the rear plenum.

④ Rear HEPA Filtration

Air passes through the rear-mounted H14 HEPA filter.

⑤ Horizontal Laminar Airflow

Filtered air flows uniformly toward the open front across the work zone.

The horizontal clean bench is designed primarily for product protection and should not be used for hazardous materials requiring personnel or environmental protection.

Horizontal Clean Bench Specifications

Items	HC-S-995	HC-S-1040	HC-S-1340	HC-S-1640	HC-S-1950
*Dimension (LWH mm)*	9957201440	104010001480	134010001480	164010001480	195010001480
Working Area *(LWH mm)*	915480610	760700570	1260700570	1560700570	1870700570
Inspection Standard	209E
Air Flow (m³/h)	700	950	1300	1650	2000
Air Velocity (m/s)	0.45±20%
Cleanliness Level	Class 100
Filter Efficiency	99.95%@MPPS
Body Material	High quality cold-rolled steel plate/Surface anti-static spraying plastic/Matt white
Bench Material	Surface: Stainless steel Back: Fireproof board
Noise	<58db	<58db	<58db	<60db	<62db
Power Supply	220V, 50HZ
Rated Power (KW)	0.3	0.155	0.175	0.29	0.31
Persons	1	1	1~2	2~3	3~4
Weight(KG)	150	250	300	500	800

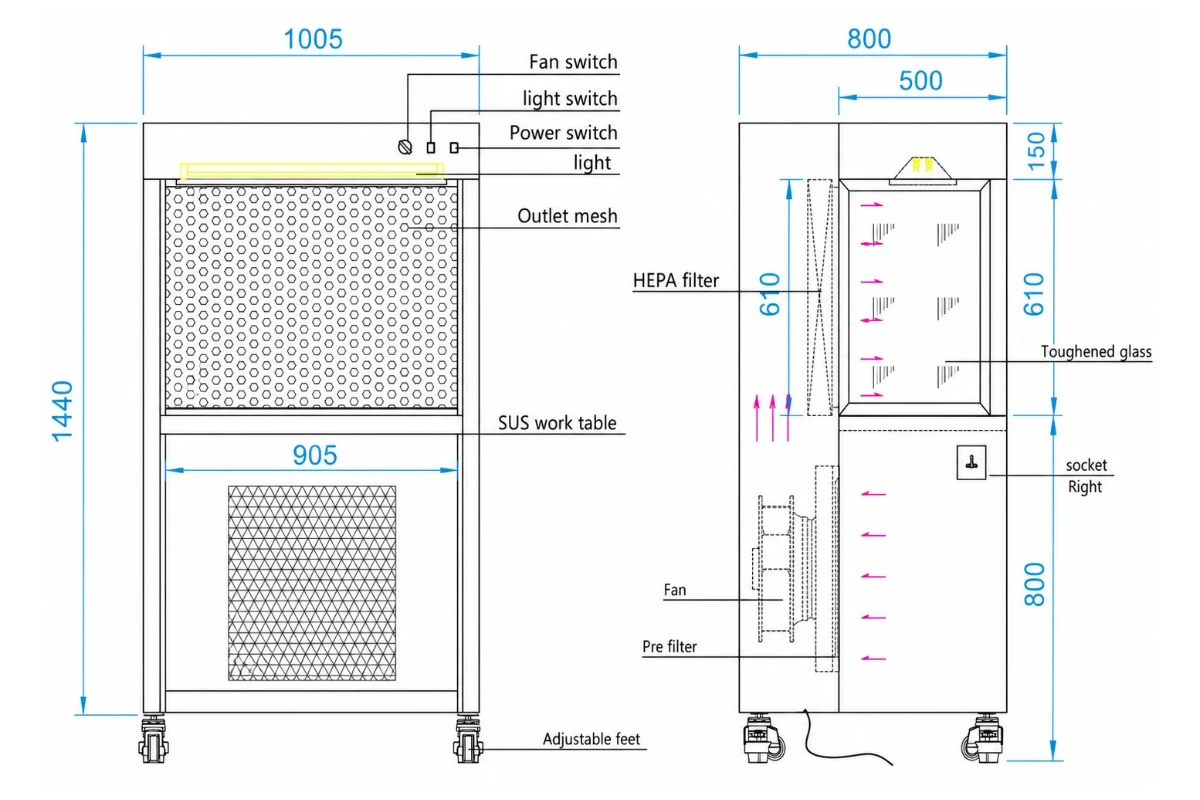

Technical Drawing and Horizontal Airflow Design

Rear HEPA Configuration

Full-height rear HEPA filtration provides uniform clean airflow across the working area.

Horizontal Airflow Path

Filtered air travels horizontally from the rear filter toward the open front of the clean bench.

Open Work Area

The rear-mounted filtration system keeps the upper working space unobstructed for process operations.

REQUEST A CUSTOM SOLUTION

Work Area and Control Features

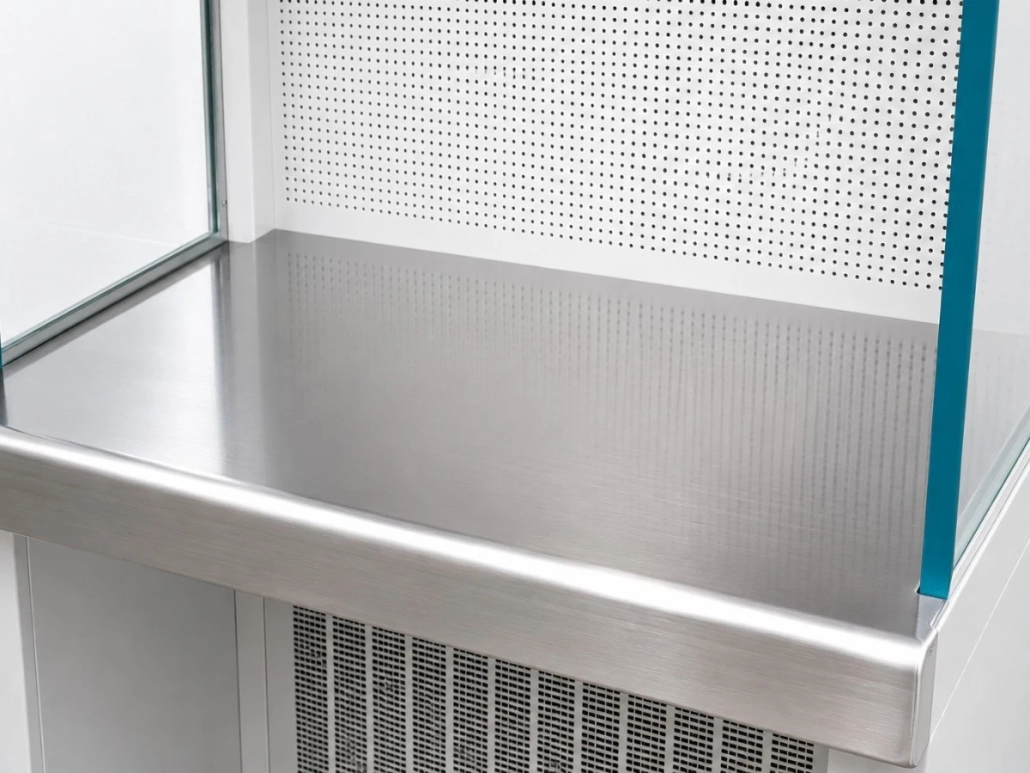

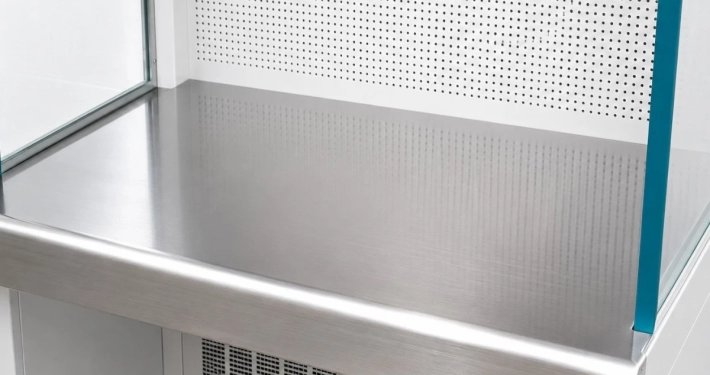

SUS304 Work Surface

Smooth, durable and easy-to-clean working surface.

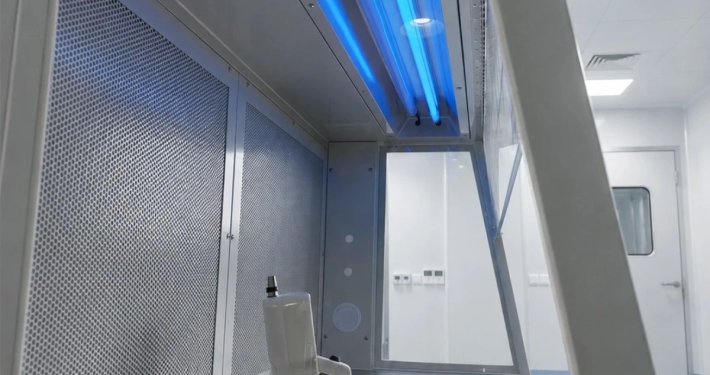

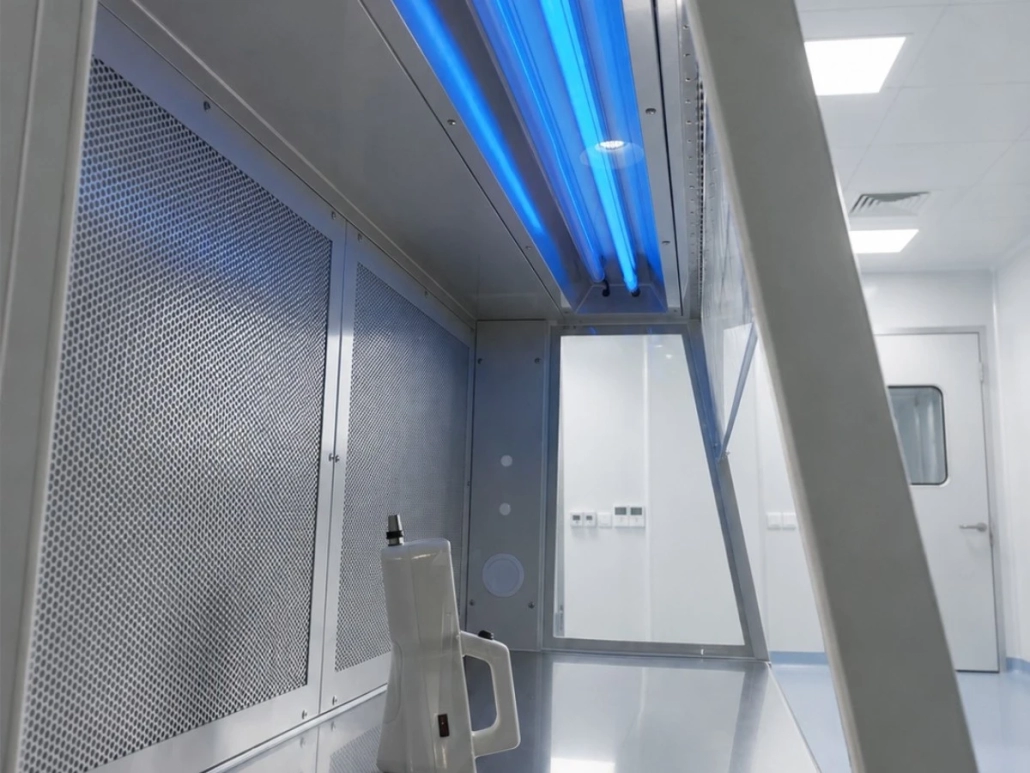

UV Lamp

Optional UV lamp for work-zone treatment when required by the process.

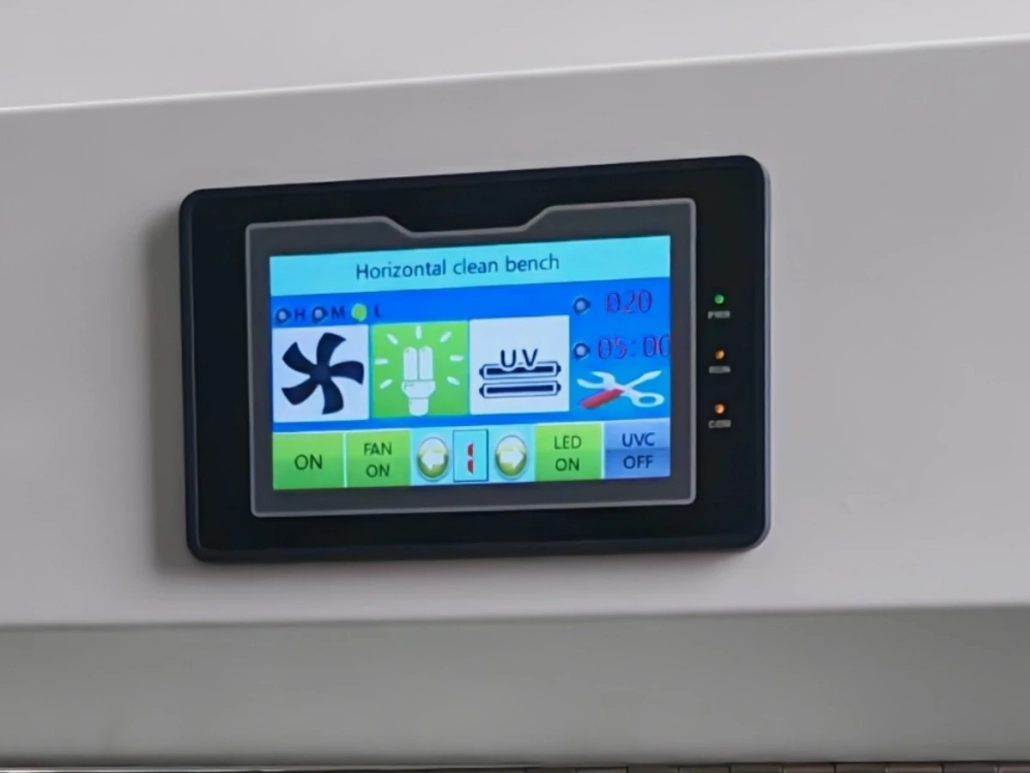

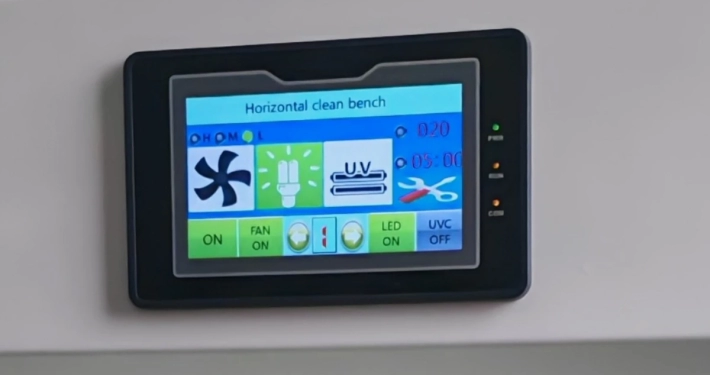

Touchscreen Control System

Convenient control and monitoring of fan, lighting and operating status.

Applications

Horizontal clean benches provide localized clean-air protection for contamination-sensitive, non-hazardous processes across precision manufacturing, laboratories and medical device production.

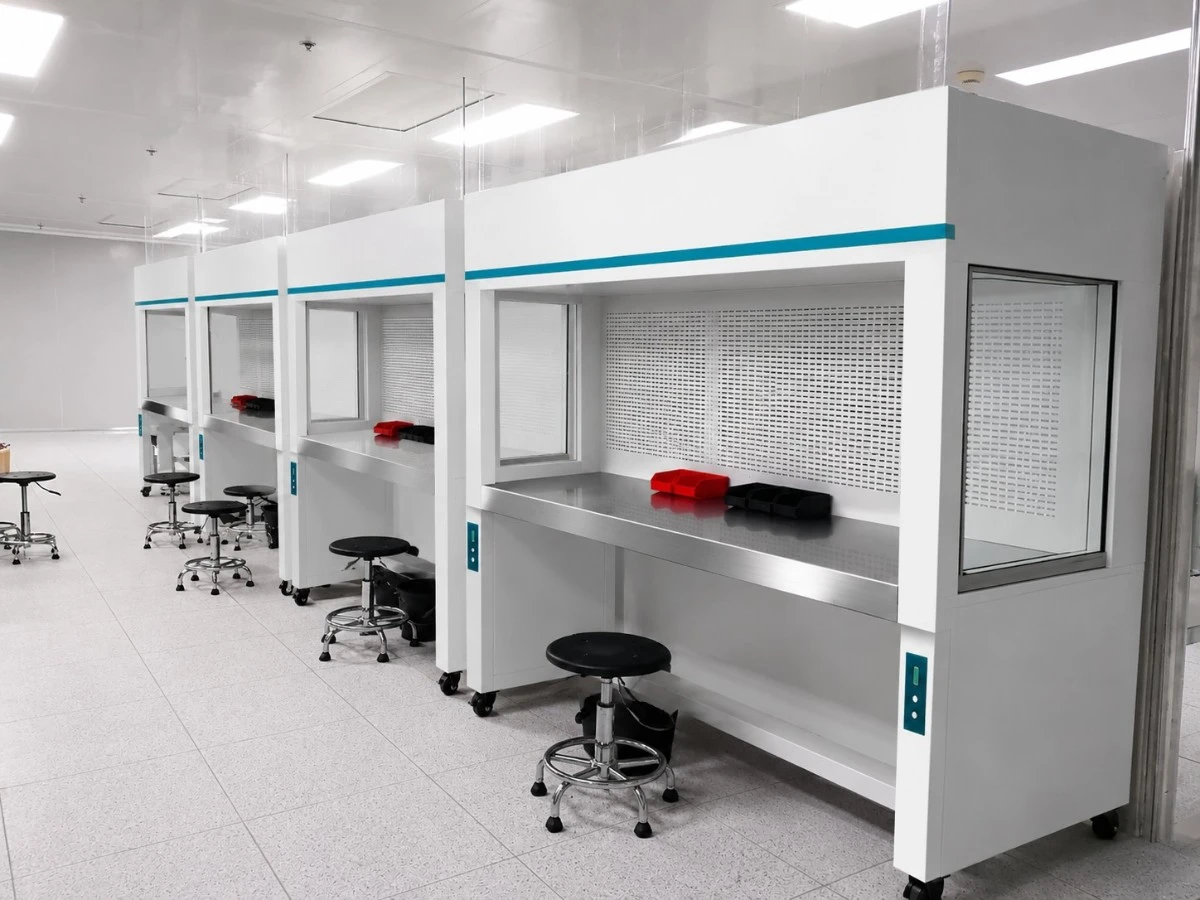

Electronics & Precision Assembly

The rear-mounted H14 HEPA filter supplies high-efficiency filtered air directly across the work zone, helping maintain an ISO Class 5 clean environment for contamination-sensitive processes.

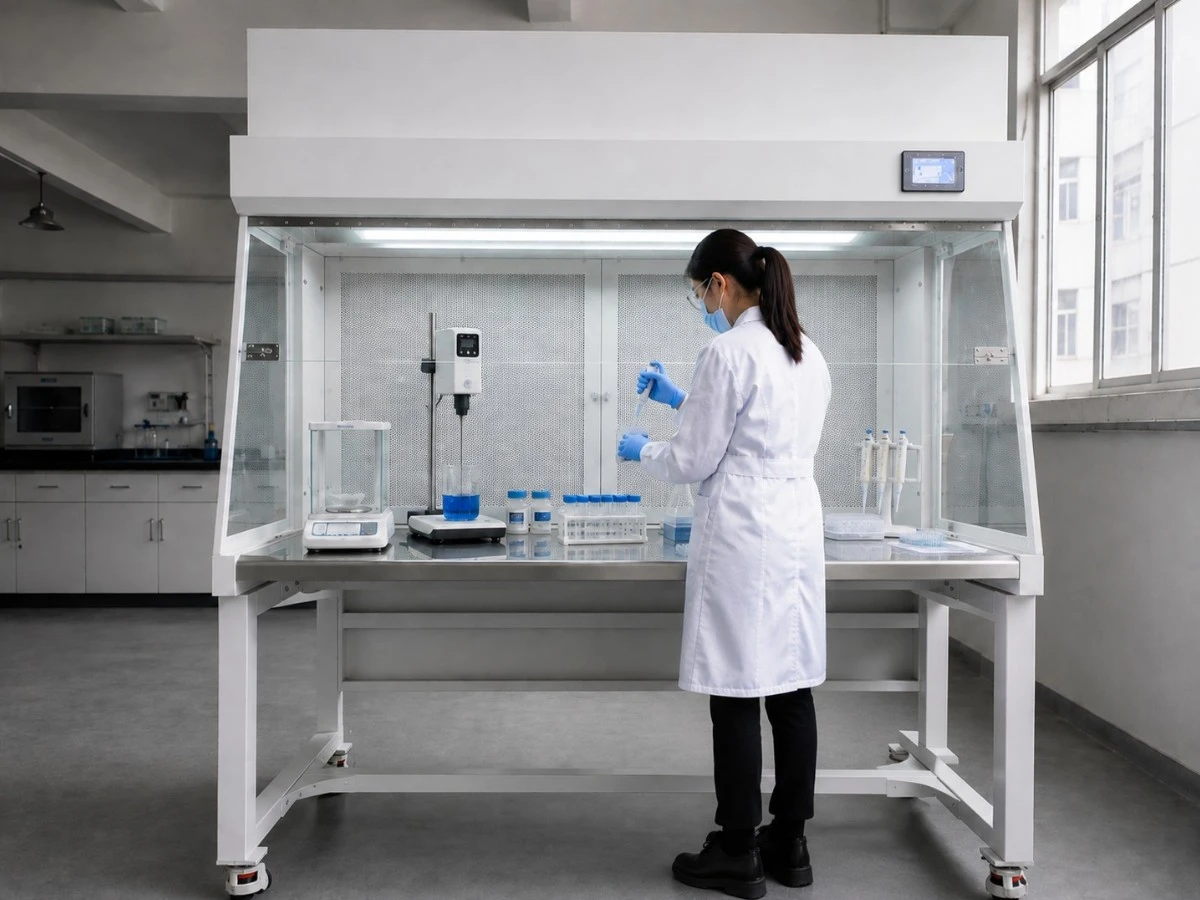

Laboratory & Research

Provides clean horizontal airflow for non-hazardous sample preparation, media handling and research operations.

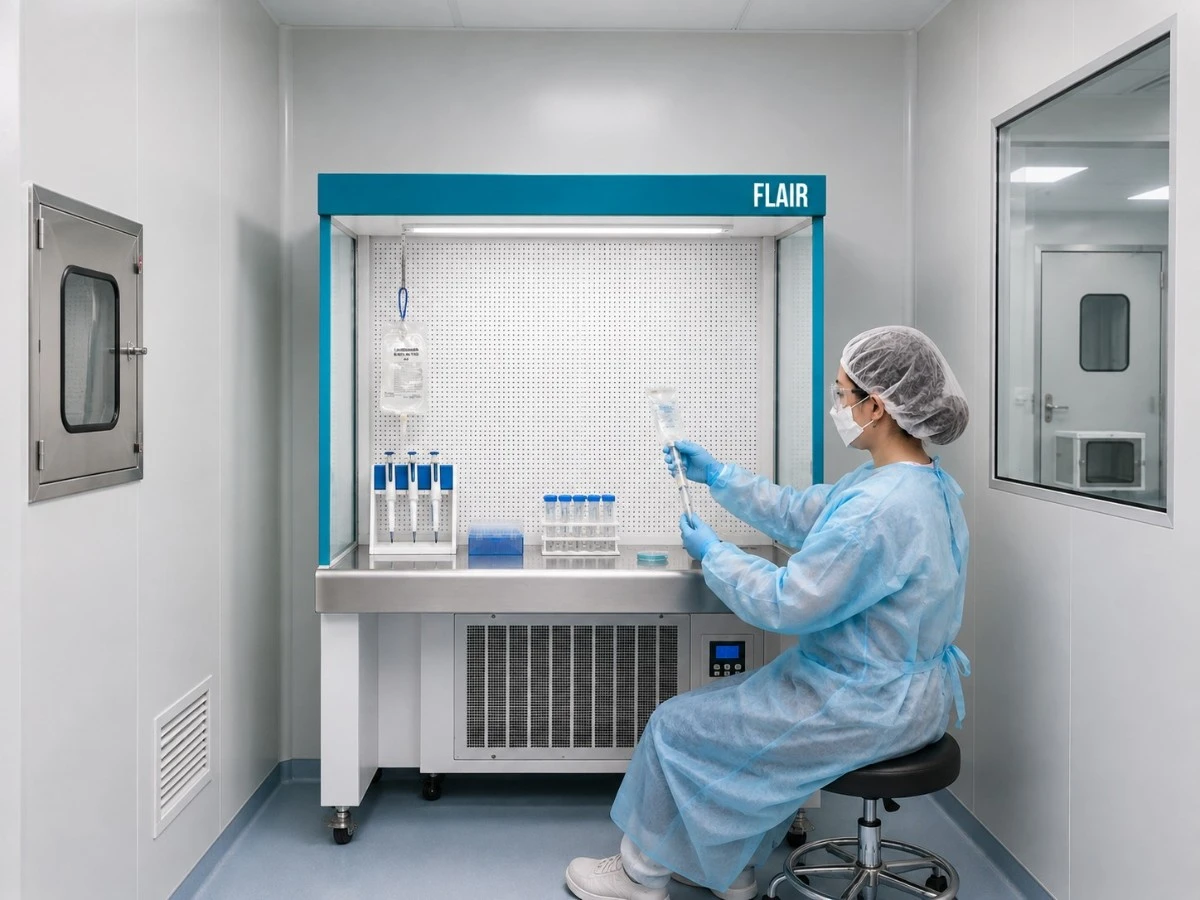

Medical Device & Pharmaceutical

Suitable for contamination-sensitive assembly, inspection and non-hazardous processing operations.

FAQs

Find answers to common questions about horizontal airflow, ISO Class 5 cleanliness, HEPA filtration, product protection and customization.

1. What is a horizontal laminar flow clean bench?

A horizontal laminar flow clean bench is a clean-air workstation designed to protect non-hazardous products, samples and sensitive processes from airborne particle contamination. Room air is pre-filtered and then passed through a high-efficiency HEPA filter mounted at the rear of the working area.

The filtered air flows horizontally across the work surface toward the open front, creating a continuous unidirectional clean airflow. A properly designed and maintained system can provide an ISO Class 5 localized clean working environment for laboratory, electronics, pharmaceutical and precision manufacturing applications.

2. What is the main advantage of horizontal laminar airflow?

Horizontal laminar airflow delivers HEPA-filtered air directly from the rear filter across the working area toward the open front. This airflow pattern provides a uniform clean-air stream over samples and sensitive components while minimizing turbulence within the critical work zone.

Because the main HEPA filter is positioned behind the work area rather than directly above it, horizontal clean benches can also provide unobstructed overhead workspace for handling smaller equipment, samples and precision components.

3. What is the difference between horizontal and vertical laminar flow clean benches?

The main difference is the direction and location of the HEPA-filtered airflow. In a horizontal clean bench, the HEPA filter is typically located at the rear of the work area and clean air flows horizontally toward the open front.

In a vertical clean bench, filtered air is supplied from above and moves downward across the work surface. Horizontal airflow is often selected when direct, unobstructed clean airflow across the work surface is preferred, while vertical airflow may be more suitable when equipment or process layouts could obstruct a horizontal airflow path.

The appropriate configuration should be selected according to the process, equipment arrangement and contamination-control requirements.

4. What cleanliness level can a horizontal clean bench provide?

A properly designed and maintained horizontal laminar flow clean bench can provide an ISO Class 5 clean working environment under specified operating conditions.

Actual performance depends on HEPA filter efficiency, airflow velocity and uniformity, filter integrity, equipment condition and operating practices. For projects requiring documented performance, particle concentration, airflow velocity and HEPA filter integrity can be tested according to applicable cleanroom standards and project requirements.

5. What should not be handled in a horizontal clean bench?

A horizontal clean bench should not be used for hazardous biological agents, toxic chemicals or other materials that require operator or environmental protection.

The horizontal airflow moves from the rear HEPA filter across the work surface toward the open front and operator. The clean bench is therefore designed primarily to protect the product or sample from airborne contamination rather than to protect personnel.

Applications involving hazardous biological materials should use appropriate containment equipment, such as a certified biological safety cabinet, according to the applicable safety requirements.

6. Can horizontal clean benches be customized?

Yes. Horizontal laminar flow clean benches can be configured according to the required working dimensions, cleanliness level, material, airflow performance and installation conditions.

Available options may include different working widths, stainless steel construction, HEPA or ULPA filtration, fan and control systems, lighting, electrical outlets and mobile or fixed support structures.

Customers can provide the required working area dimensions, material, power supply and process requirements, and Flair can recommend a suitable configuration for the project.
