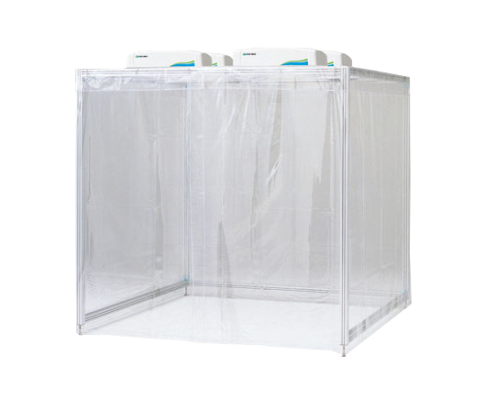

What is Clean booth?

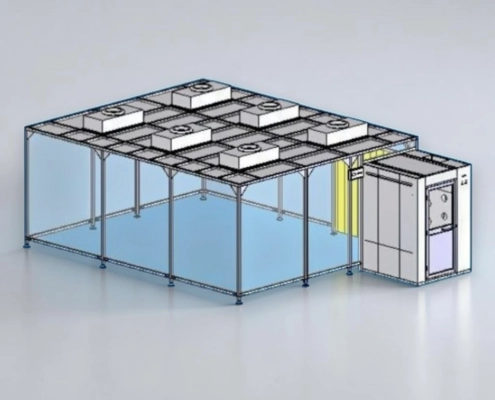

Clean booth is a kind of rapidly-established simple clean room(or clean zone) with a variety of cleanliness level and space collocation. It can be designed according to the user’s demand, and  also a kind of movable sample purification device with small investment and high purification. Place the FFU on an aluminum profile holder, and seal it tightly, the surrounding of which is covered with anti-static curtain / anti-static plexiglass, and the bottom of the surrounding adopts positive pressure natural exhaust and other forms.

Modular Clean Booths are often used for localized cleaning in existing buildings and advanced cleaning inside Cleanrooms.

Why Choose Flair’clean booth ?

Flair Clean booth(clean zone) is a kind of air purifying equipment providing partial high clean environment, it’s the easiest and fastest way to build  a simple clean zone. Simple use, good flexibility, easy installation, short construction time, and movable. It can be installed in part of clean room of general level which requires high cleanliness to save cost.

  • Fast and easy installation

    Fast and easy on-site installation and disassembly,Light Weight design, wheel mounted is available for re-location.

  • Flexible

    Custom designs, sizes and options also available,Flexibility and extension availability, accommodate existing space and HVAC system.

  • Convenient to enter&exit

    Strip curtain or mobile tempered glass door to allow easy entry

  • Easy to maintenance

    Easy for replace HEPA filter & routine maintenance.

Flair Clean booth’s advantages

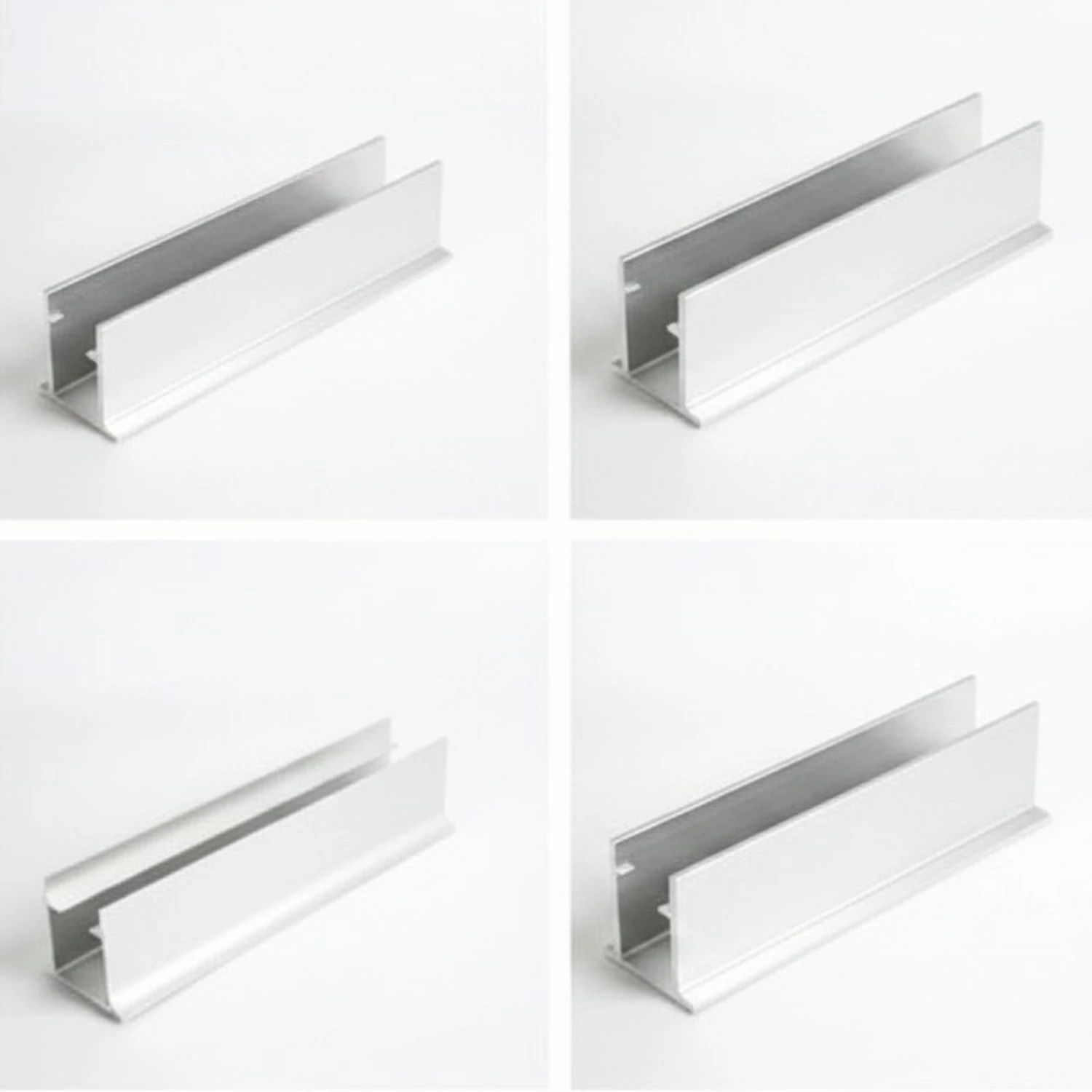

Supports Frame

Prior quality stands

Aluminium /Power coated tube /SUS framework are available

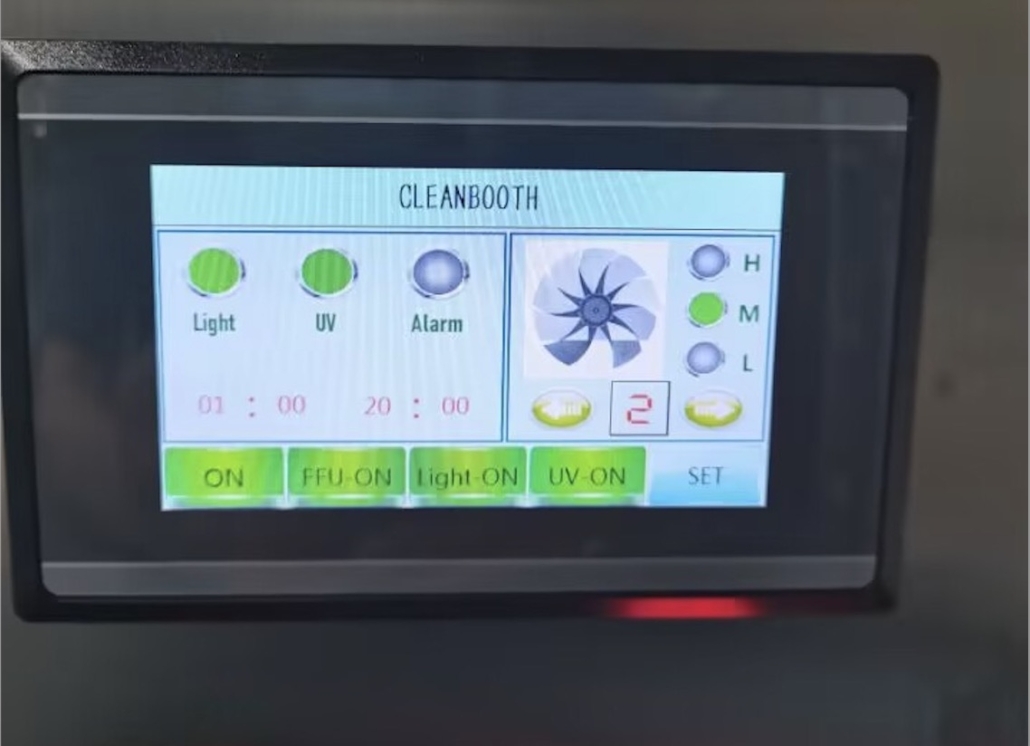

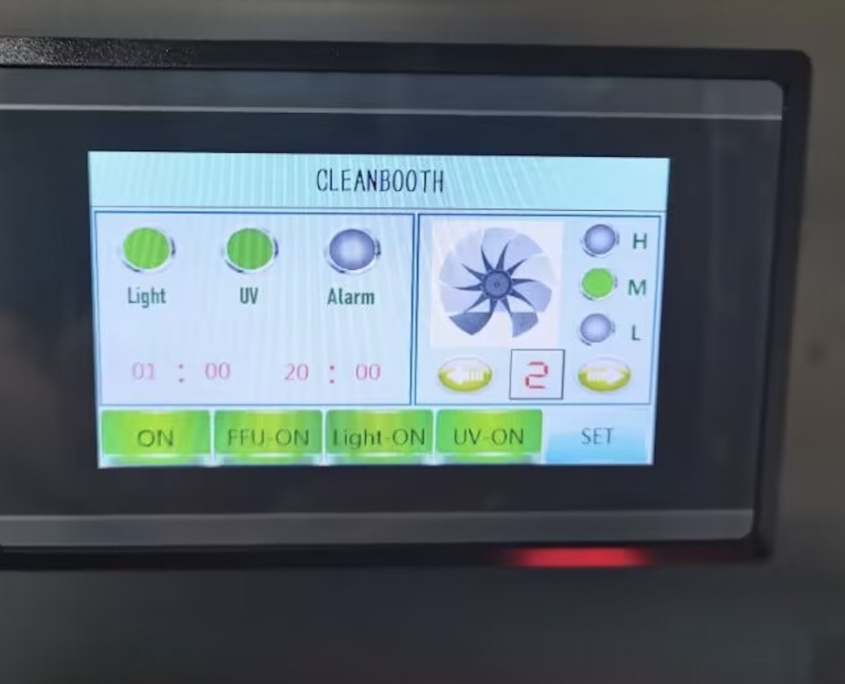

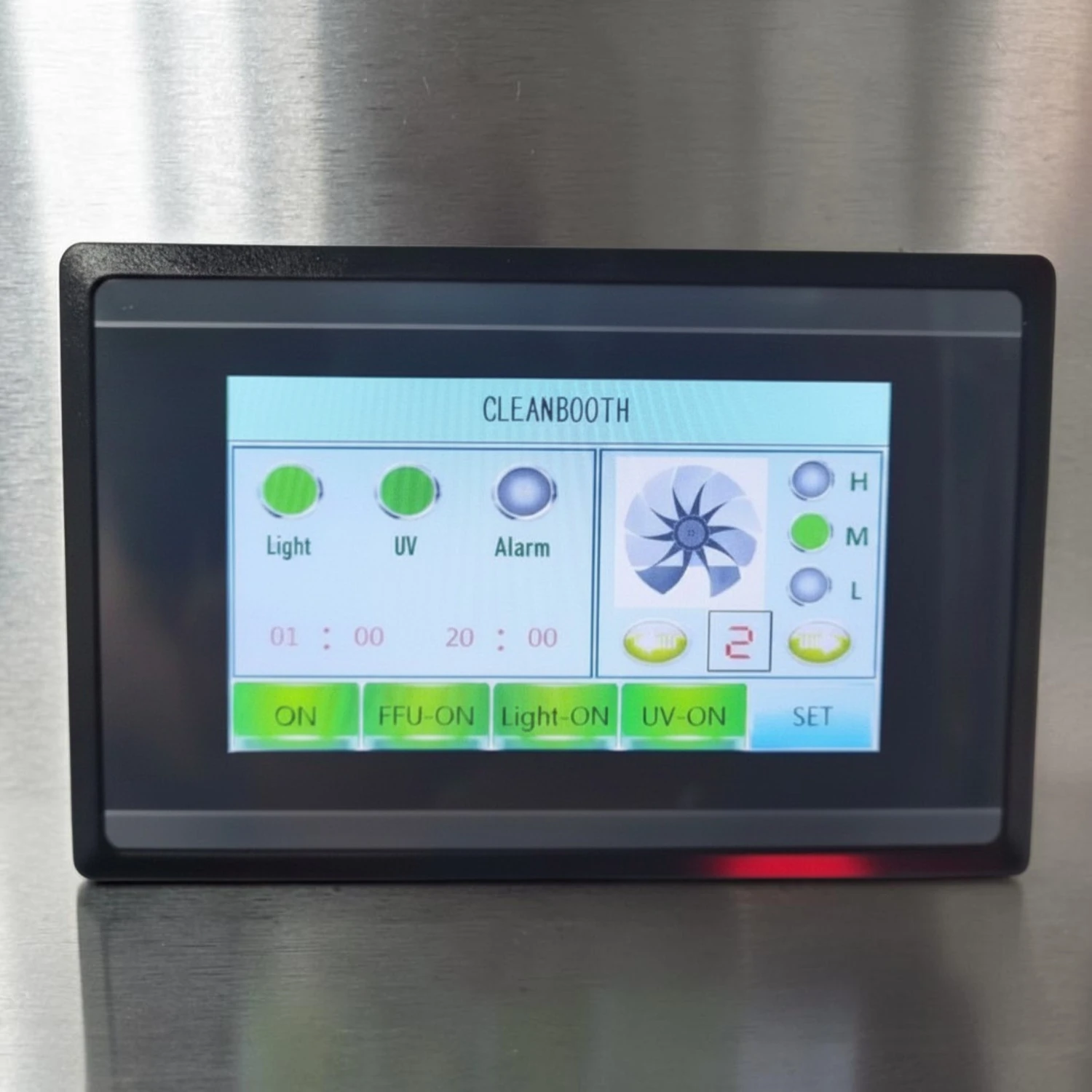

Controller

 Control panel or touch screen , easy to control

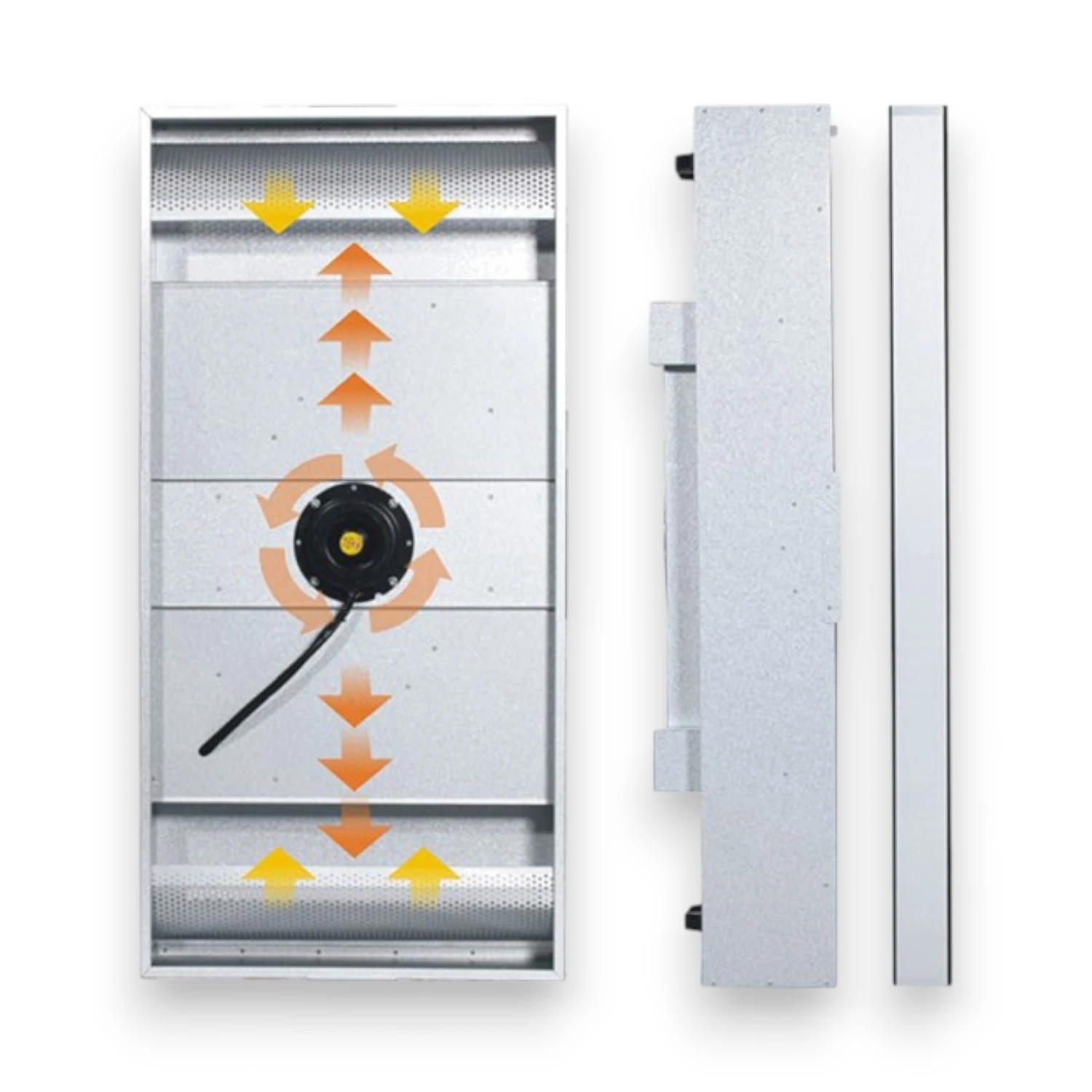

FFU

FFU with HEPA filter

According to cleanliness to decide the quantity of FFU .

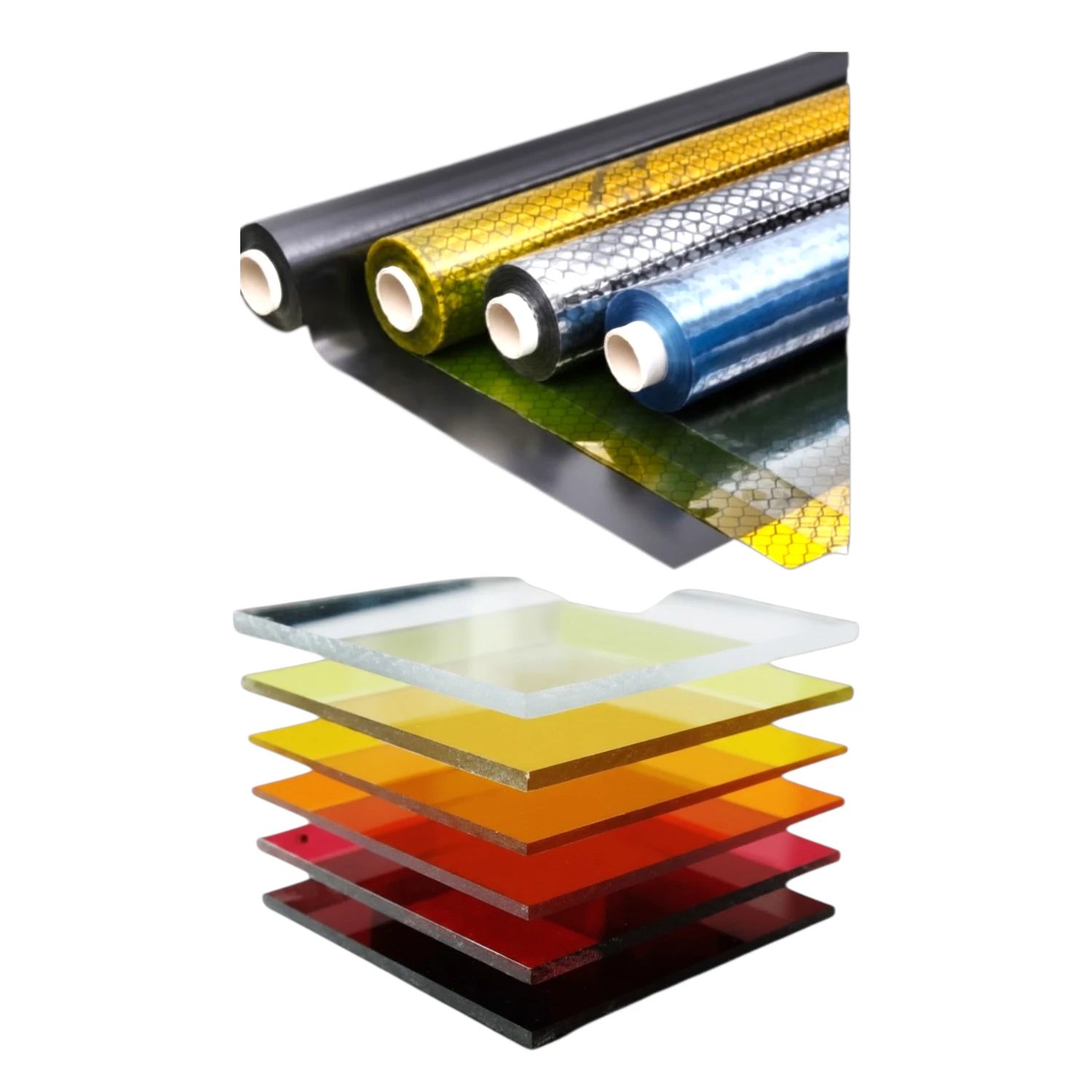

Antistatic PVC Curtain&acrylic

Soft wall & Hard walls

Anti-static PVC curtain or acrylic walls for sides .

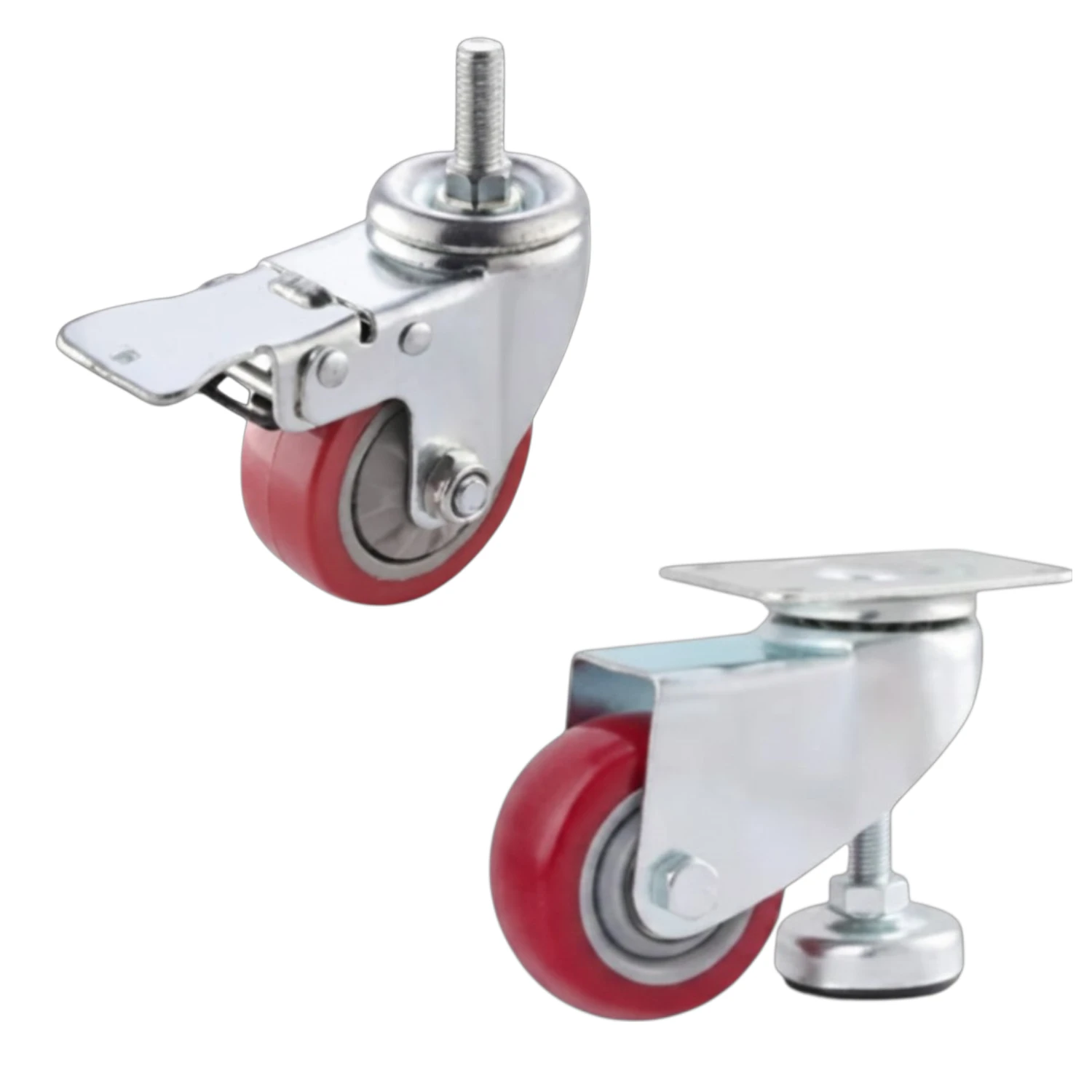

Feet with caster

Adjustable feet

Equipped with adjustable levellers (or castor with brake).

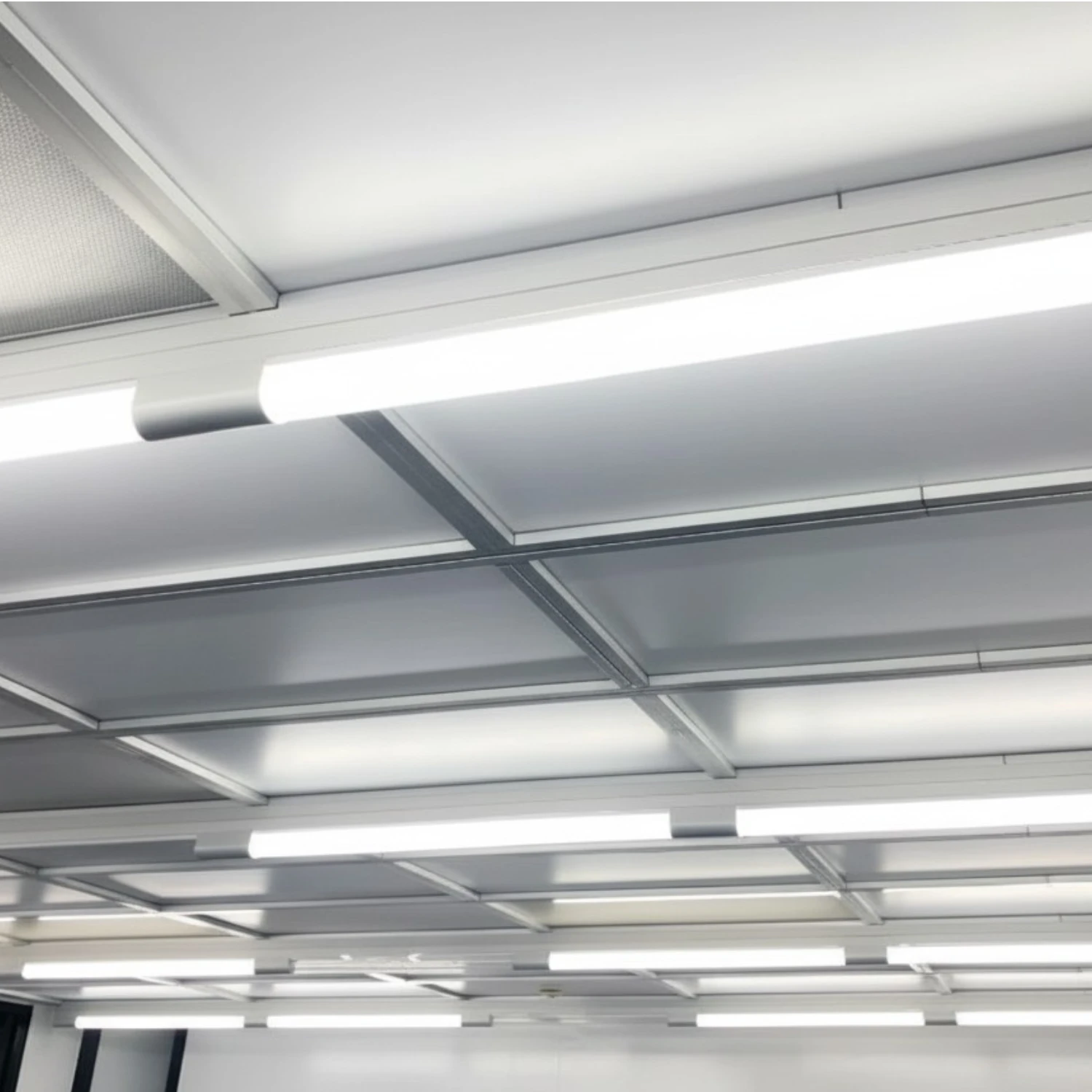

LED light for cleanroom

LED lamp

Ceiling-Mounted LED lights.

Strictly quality control

Based on the ISO 14644–14 guidance, or GMP requirements

Excellent cleanroom Equipment

Clean booth Features

How a Clean Booth Works

  1. FFUs mounted on the ceiling draw ambient air

  2. Air passes through HEPA (H13/H14) or ULPA filters

  3. Clean air flows vertically downward in laminar flow

  4. Contaminated air exits through side or floor returns

  5. Positive pressure prevents outside contamination

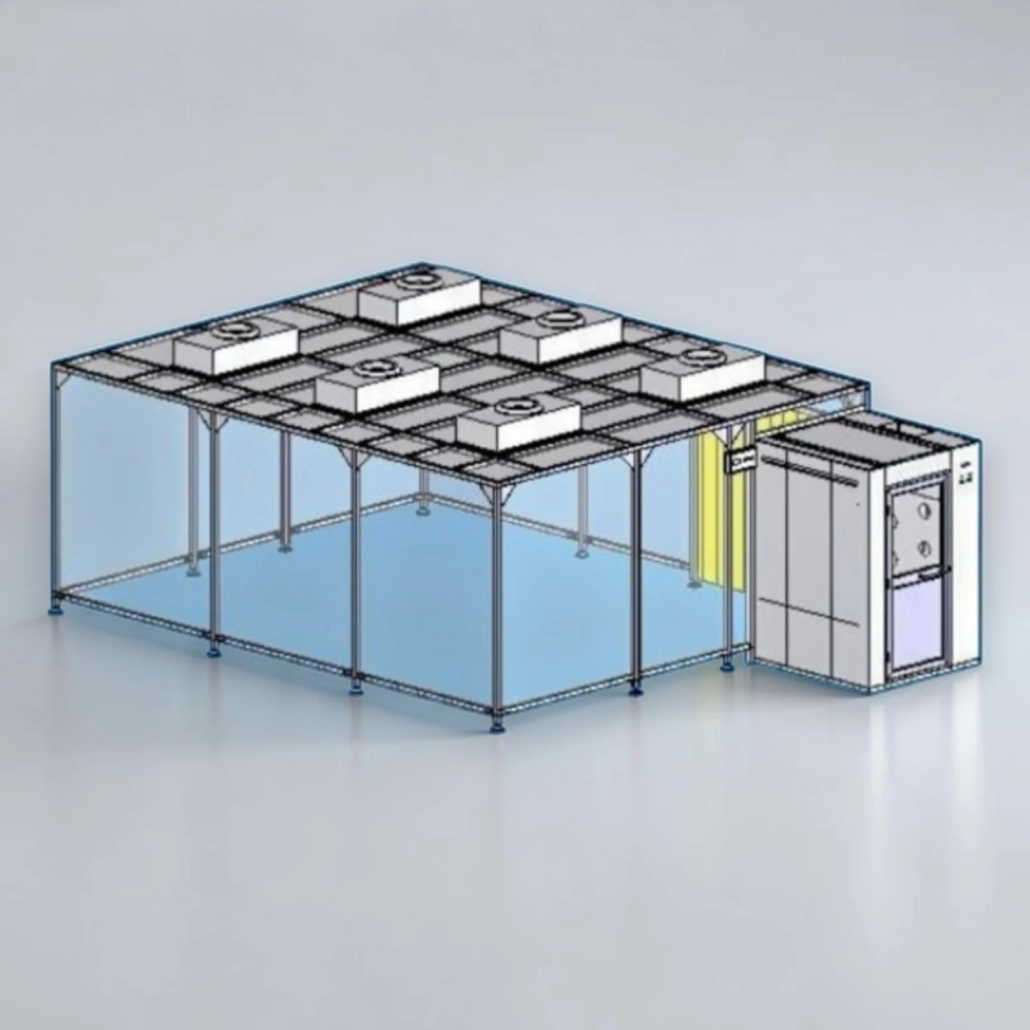

Custom your modular cleanbooth

  • Filter Type: HEPA H13 / H14 (optional ULPA)

  • Cleanliness Level: ISO Class 5–8

  • Airflow Type: Vertical laminar flow

  • Frame Material: Aluminum / Stainless Steel (optional)

  • Wall Material: PVC soft curtain / Acrylic / PC

  • Lighting: LED cleanroom light

  • Control: FFU speed controller or touch panel

  • Power: 110V / 220V / 380V

Want to custom clean booth or clean zone ,Contact us soon.

Applications

Be widely used in all types of cleanroom environments – semiconductor and microelectronics, medical & biological GMP manufacturing facilities, local clean zone, clean booths/as well as pharmaceutical and medical labs. The product is designed for use in Class 10 through Class 100,000 cleanroom

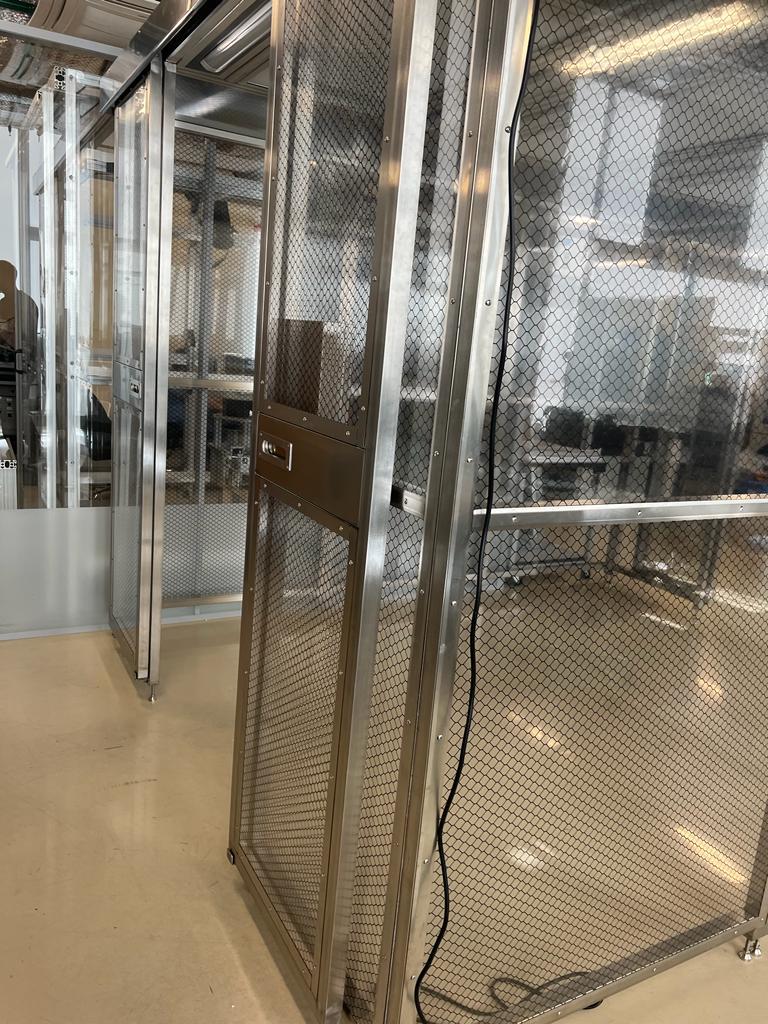

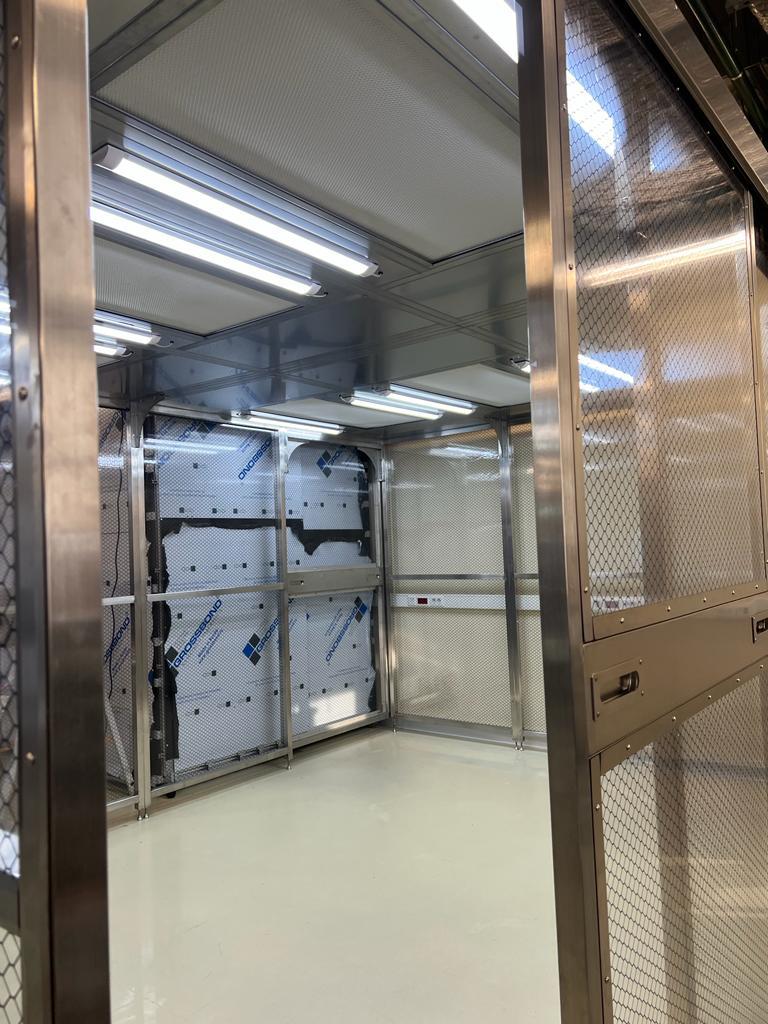

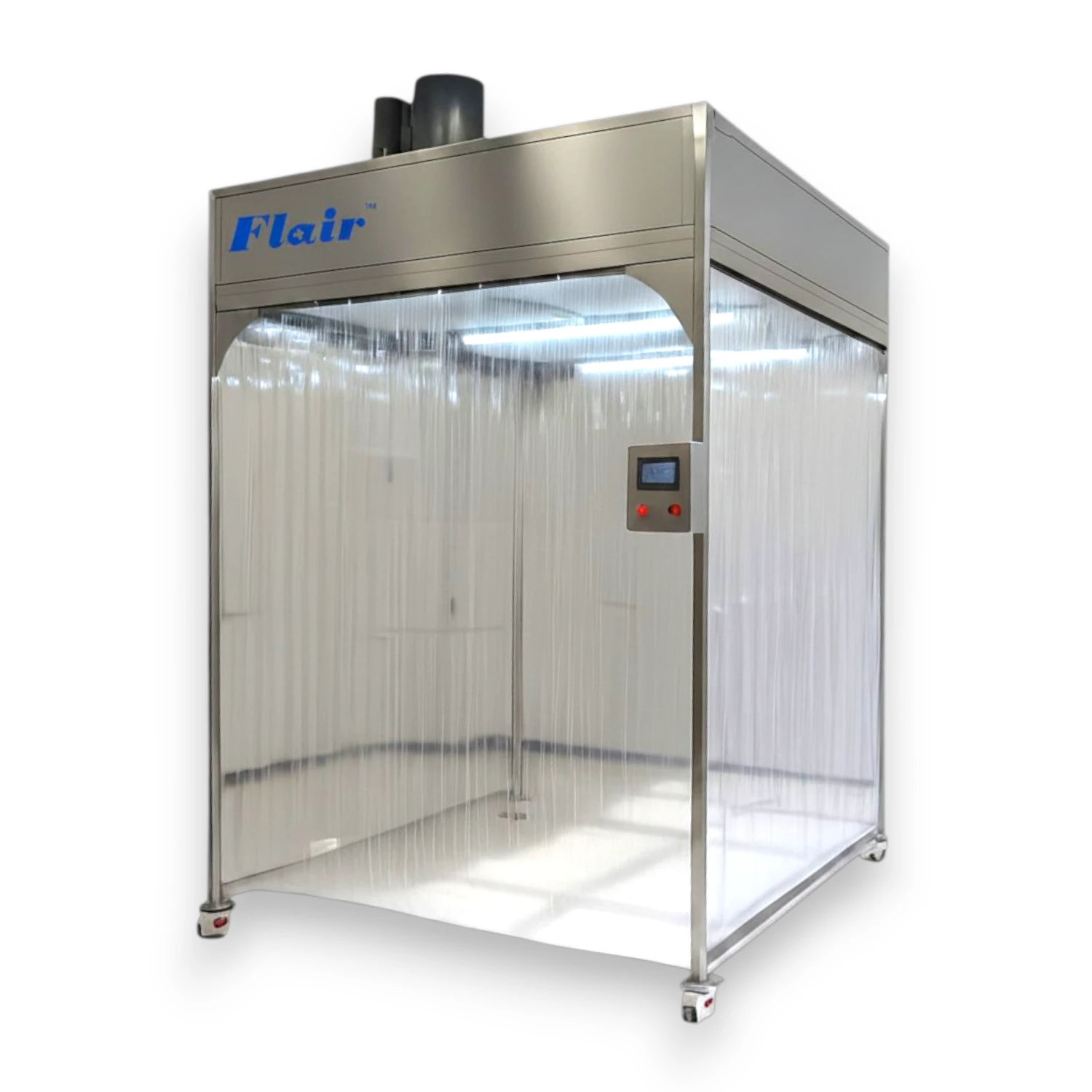

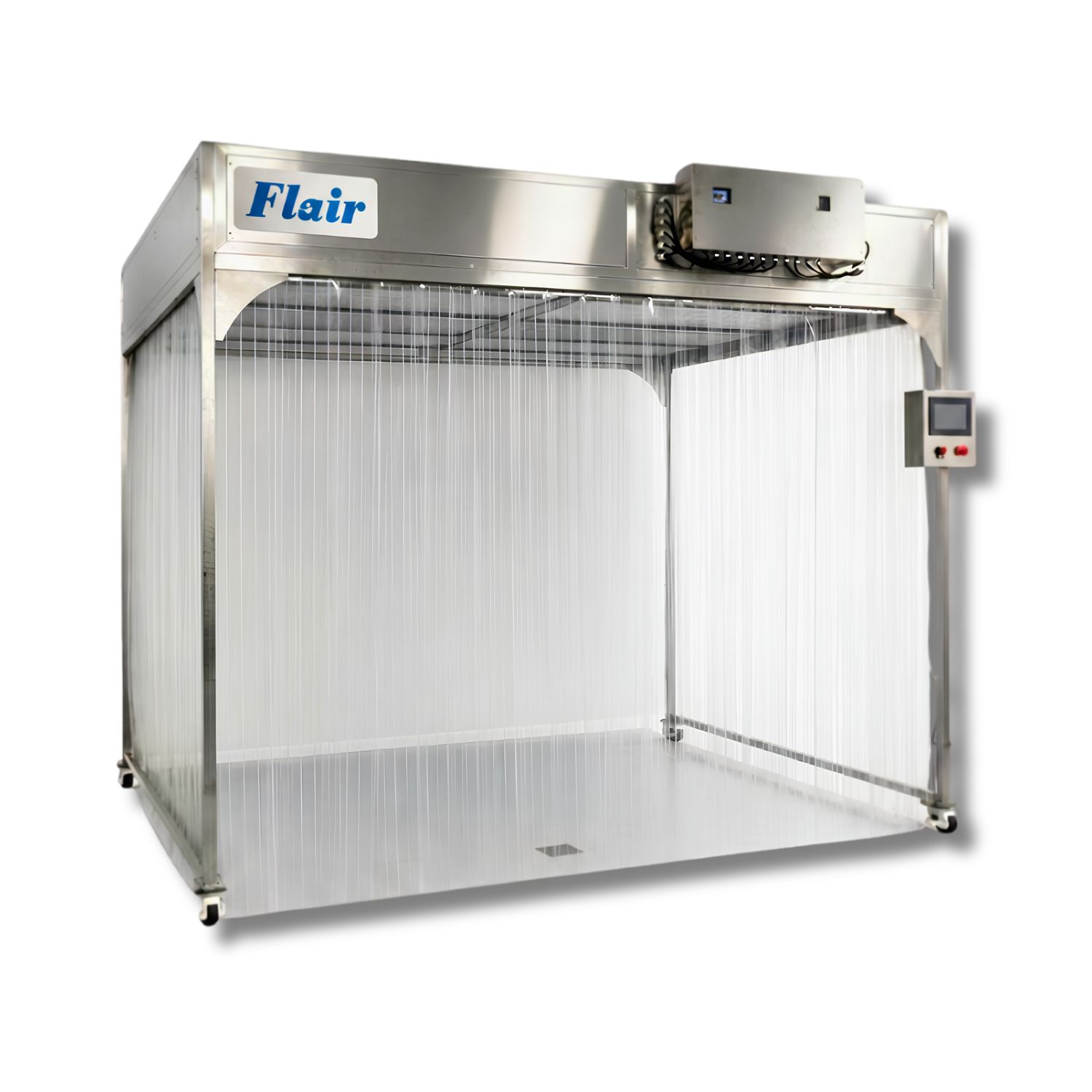

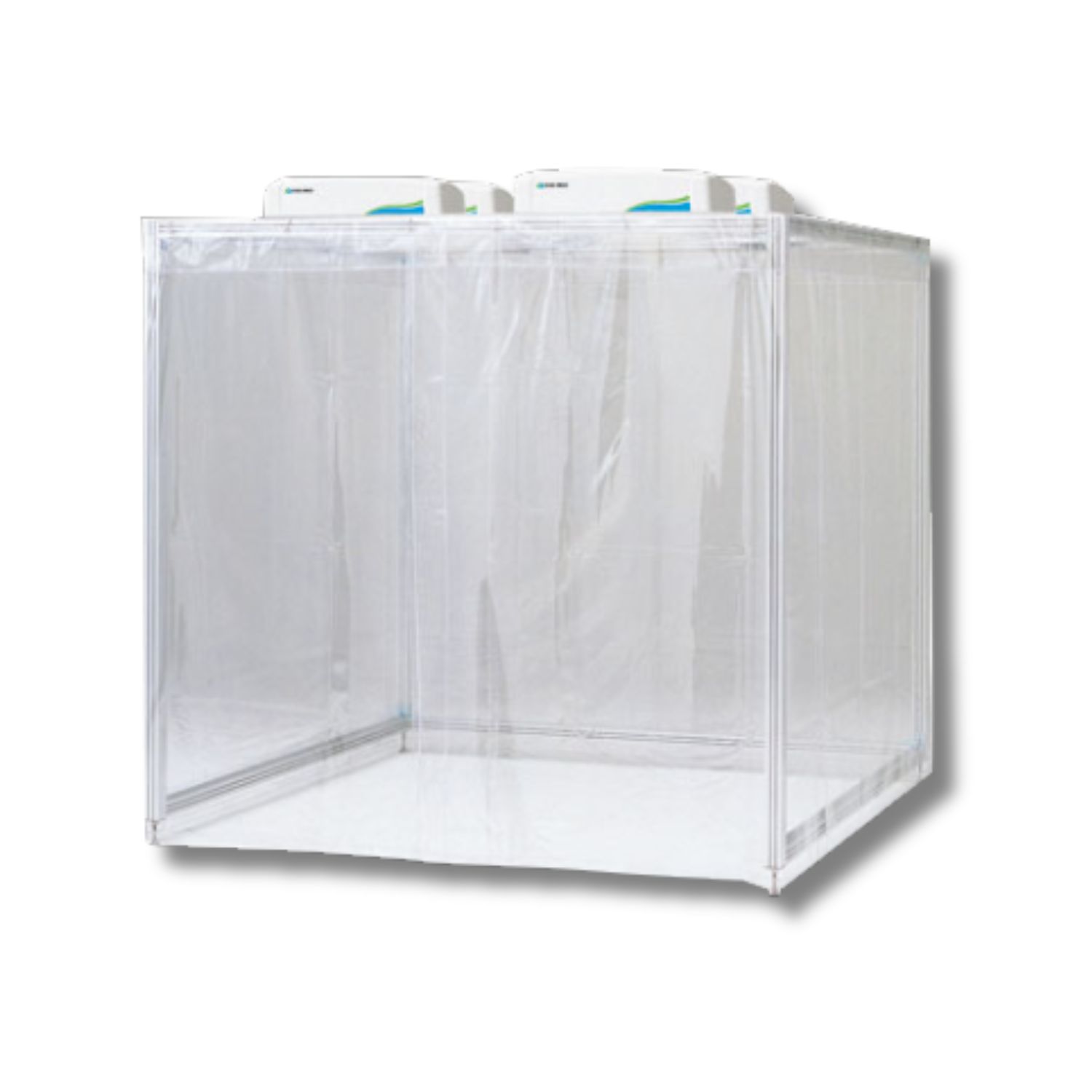

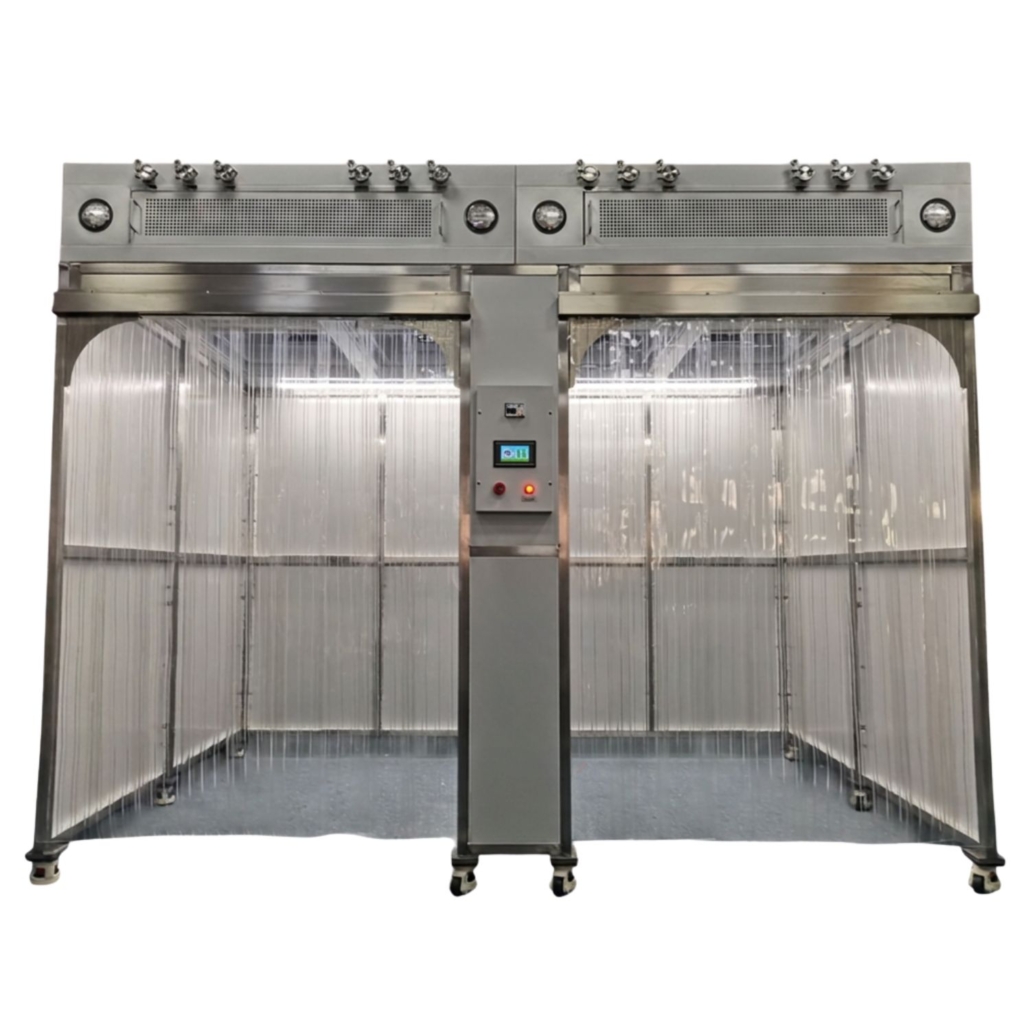

Clean booth 1
clean booth

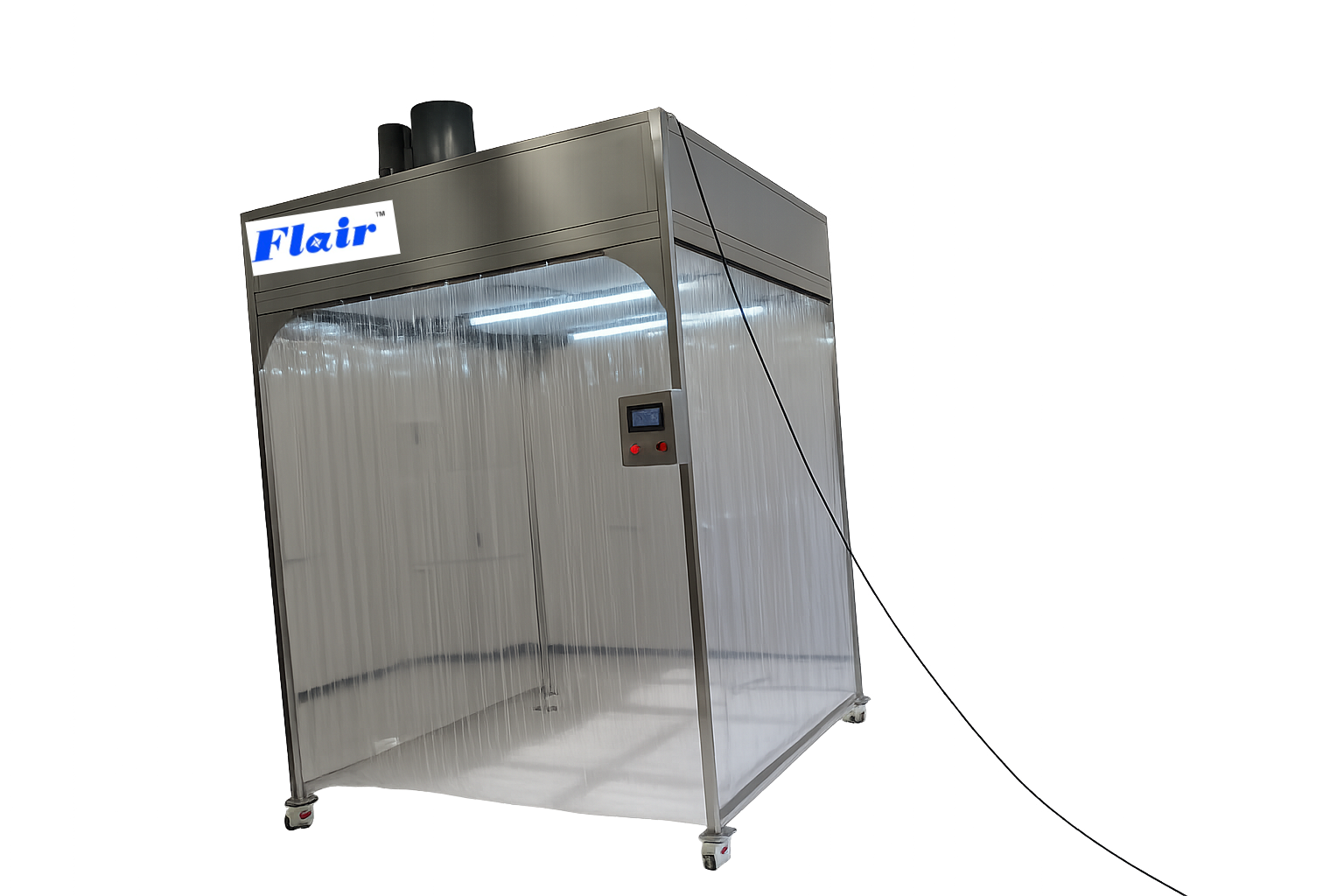

Clean booth

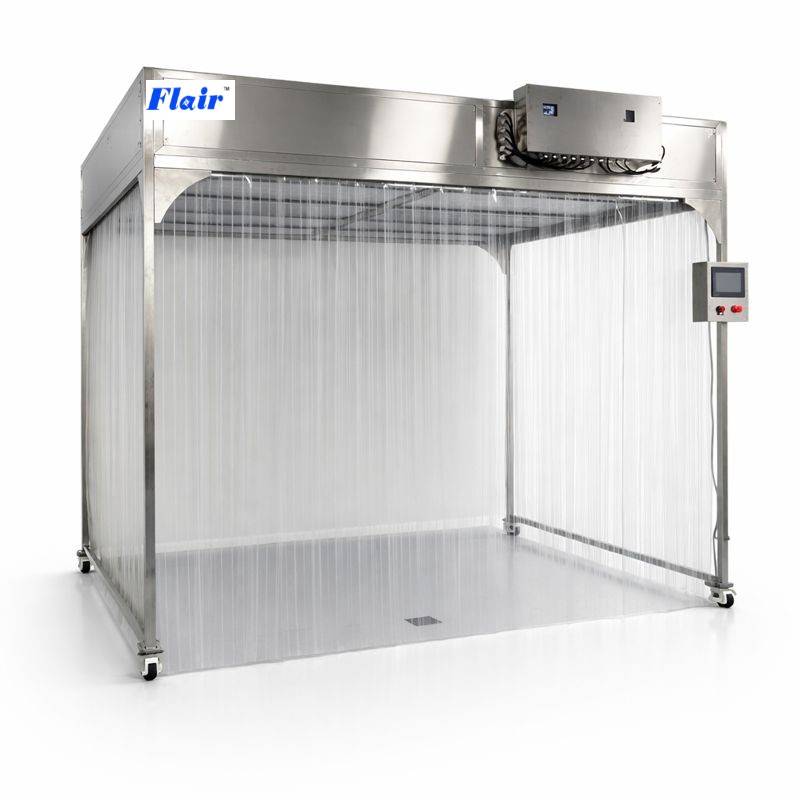

Flair Clean booth
clean booth

FAQs

Find answers to frequently asked questions about our products. See the most common topics and more. Any other questions just feel free to contact us.

Clean booth  usually installed in cleanroom environment,which need higher cleanliness workshop  removes pollutants, particles, and contaminants from outside ambient air. Outside air is first circulated to a filter system. The filters (either HEPA or ULPA) then clean and decontaminate this outside air according to their specifications. The filtered air is then forced into the clean booth. Additionally, contaminated air within the cleanroom is forced outside the room by registers, or it is recirculated back into the filters, and the process restarts.The clean booth is flexible and can be extension for existing system, accommodate existing space and HVAC system.

Cleanliness :Class 10-1,000

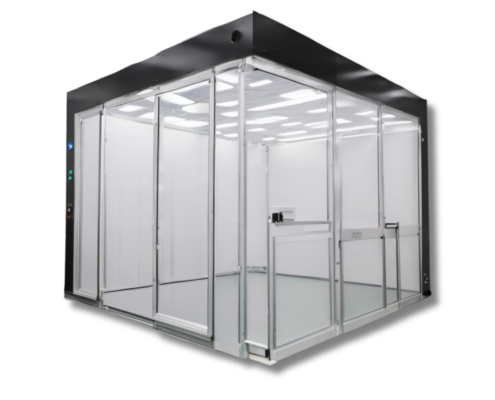

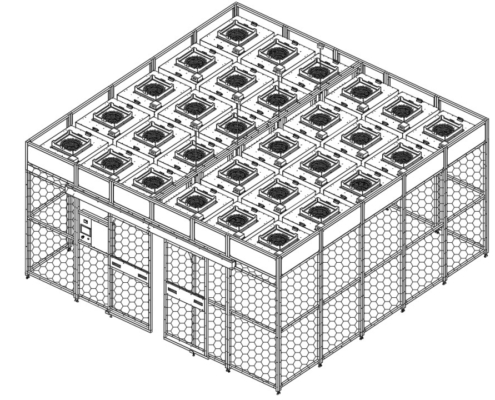

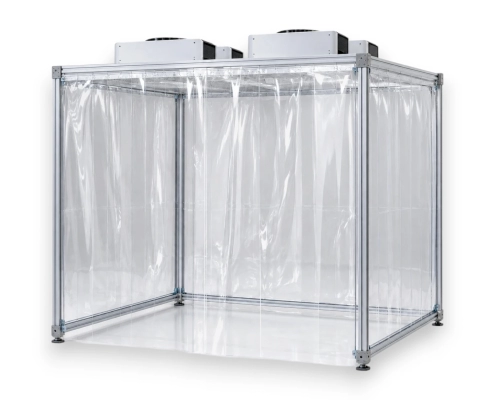

Types of clean booth:Soft wall & Hard  wall

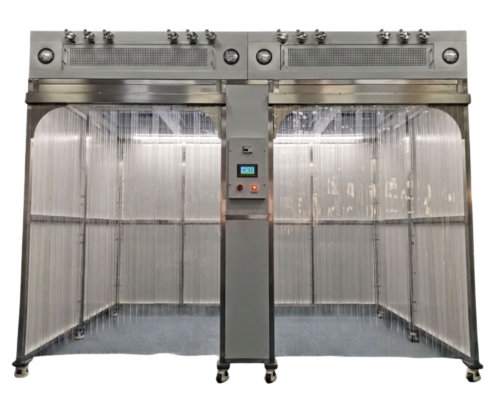

  • Constructed with steel tubular sections with heavy epoxy powder coating or option of aluminium profile
  • Walls are available in hard acrylic panels or soft anti-static strip vinyl curtains
  • We are able handle a wide range of requests, such as chemical contamination countermeasures, temperature and humidity control features, darkroom specifications, overseas specifications and more.

Clean booth enables localized clean environment, raised cleanliness level inside Cleanrooms and convenient relocation.Compatible with a variety of dimensions, including large models.

Clean Booths are used in a broad range of fields including plants for semi-conductors and liquid crystal devices, manufacturers of electronic or precision machines, manufactures of electronic materials, food plants, pharmaceutical plants and more.
