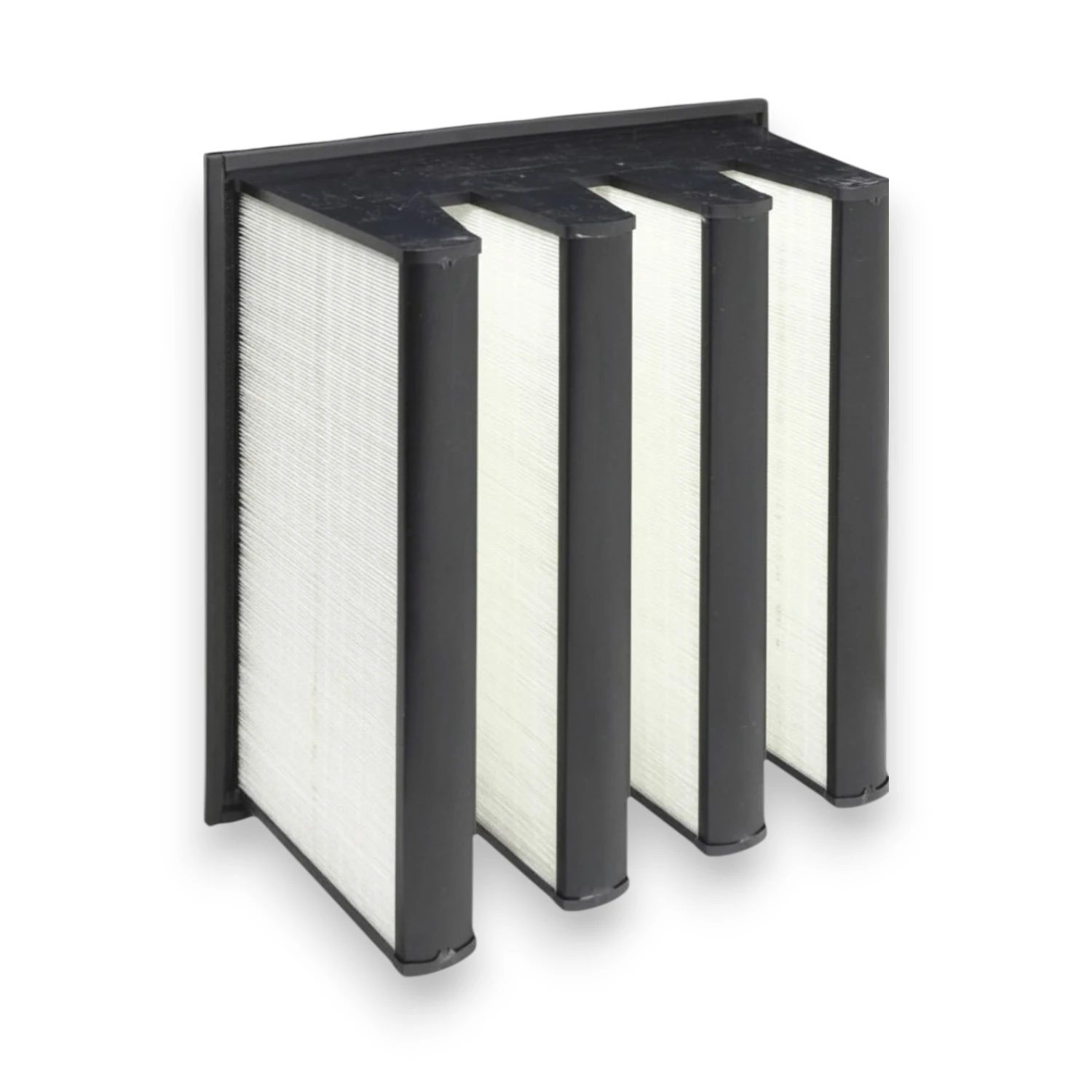

V-bank air Filter
- High efficiency
- Low resistance
- Large dust-holding capacity
- Deep pleat design
- Available in a wide range of frame materials
- Easily install
Technical Parameters
| Model | Dimension
mm W×H×D |
Separator No. | Rated
Air flow M³/h |
Initial resistance
pa |
Efficiency | Material | |||
| Media | Separator | Sealant | Frame | ||||||
|
FV |
592×592×292 | 4 | 3600 | ≤120（F8） | 60-65%F6
80-85%F7 95-95%F8 >95%F9 |
PP/ Fiberglass |
Hot-melt adhesive |
polyurethane |
Plastic/ Al./ / galvanized steel/Stainless steel |
| 595×287×292 | 4 | 1800 | ≤120（F8） | ||||||
| 610×610×292 | 5 | 3500 | <=220Pa | ||||||
| 915×610×292 | 6 | 4200 | <=220Pa | ||||||
Customers’sizes and specification are welcome.
Technical Drawing
| Frame | ABS/plastic frame |
| Type | Box/single header |
| Media | Superfine fiberglass /PP |
| Sealant | Hotmelt Thermo resistant glue |
| Gasket | EVA gasket |
| Max. Temp. | 100°C |
| Min. Humility | 80°C |
Applications

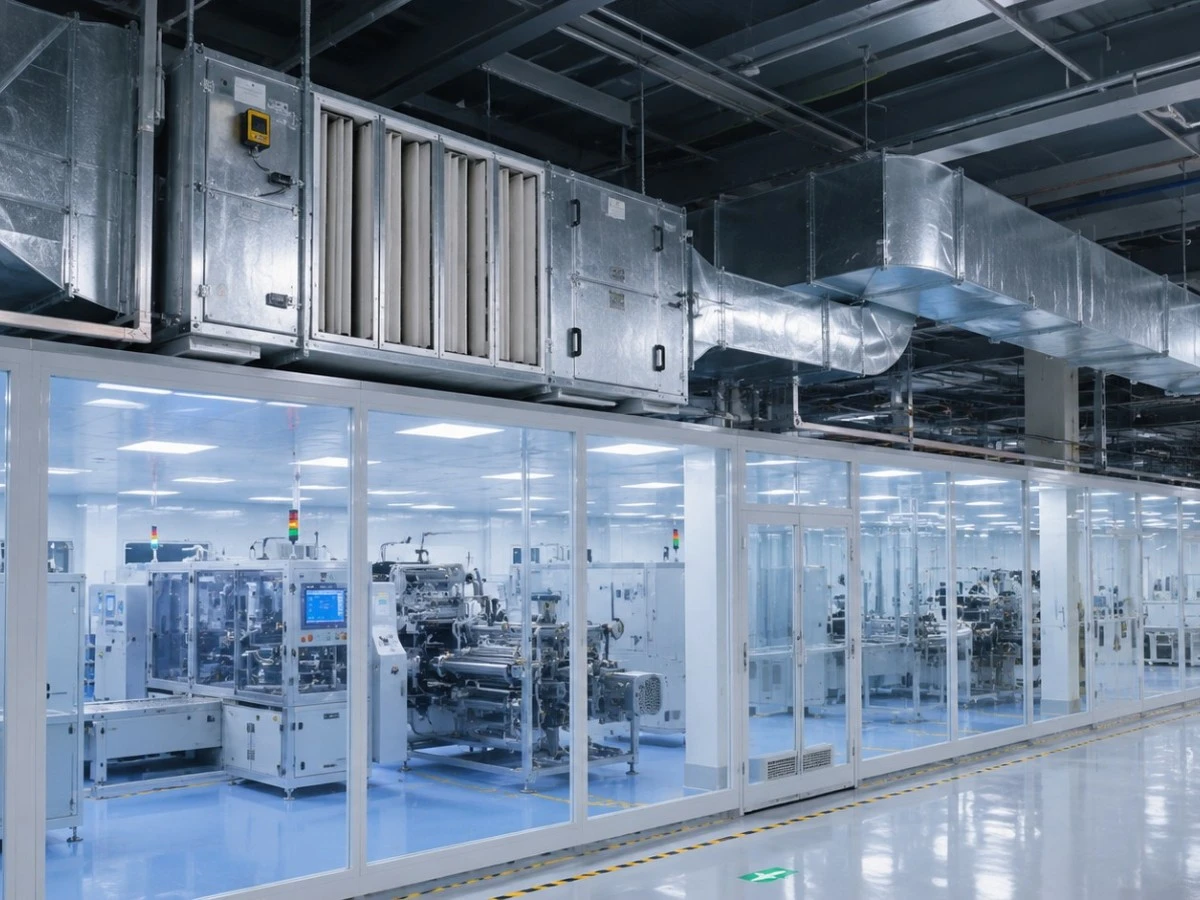

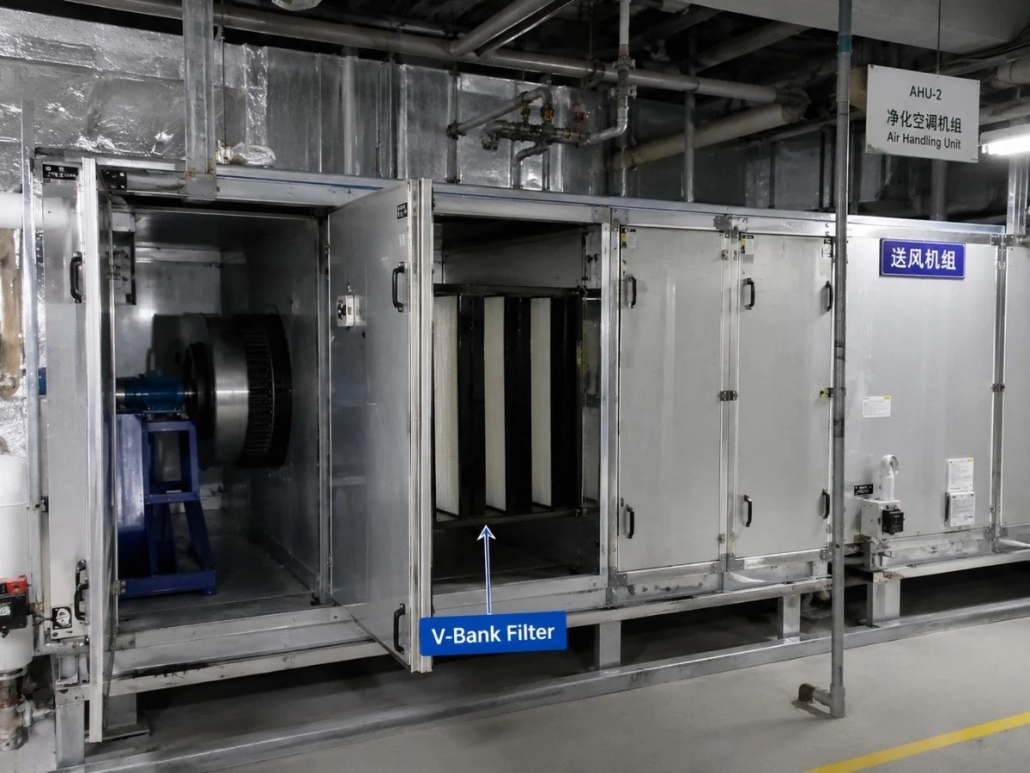

It is widely used in the terminal filtration of the civil or industrial cleaner places requiring a higher degree of cleanliness such as electronics, semiconductor, precision machinery, pharmaceuticals, hospitals, food etc.
