Compact HEPA Filter
- High efficiency
- Low resistance
- Large dust-holding capacity
- Mini pleat design
- Available in a wide range of frame materials
- Easily install
Technical Parameters
|
Model NO. |
Dimensions W*H*D (mm) |
Rated air flow (m3/h) |
Noof inter
layer |
Structure | Initial resistance(Pa) | Efficiency | Material | |||
| HV | 295*595*295 | 1000 | 4 | Flanged Type
4V |
<220 | >99.99%
Na Flame method |
Media | Separator | Sealant | Frame |
| 595*595*295 | 2100 | 4 | Glass
fiber |
Hot
melt adhesive |
Polystyrene | Polystyrene/steel/ aluminium alloy | ||||
| 595*595*295 | 2700 | 5 | Box Type
5V |
|||||||
| 610*610*295 | 3200 | 5 | ||||||||
Technical Drawing
| Frame | Stainless steel -Zinc/AL Galvanized sheet |
| Type | N-Box/S-single header/D-doubleheader 3v 4v 5v |
| Media | Superfine fiberglass |
| Gasket | EVA |
| Sealant | HotmeltThermo resistant glue |
| Max. Temp. | 100°C |
| Min. Humility | 80°C |

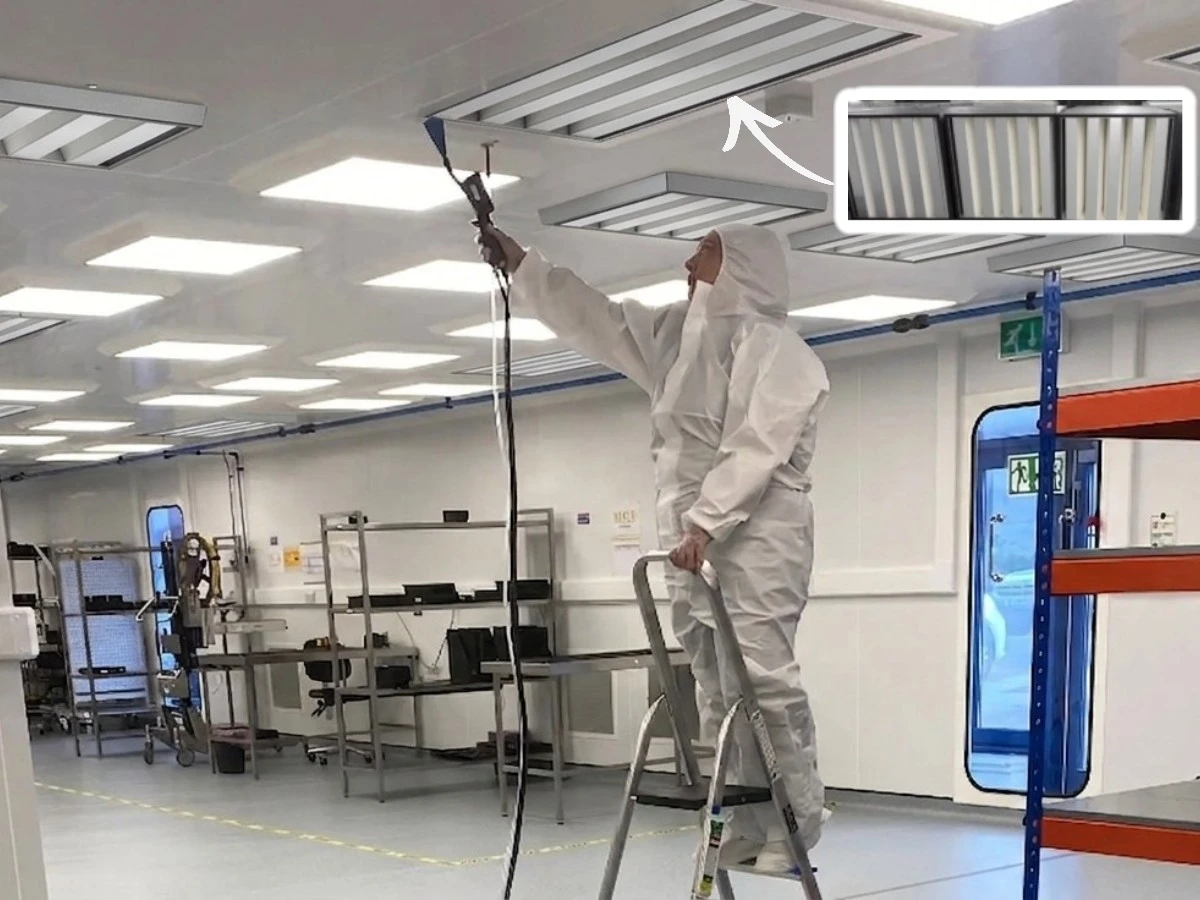

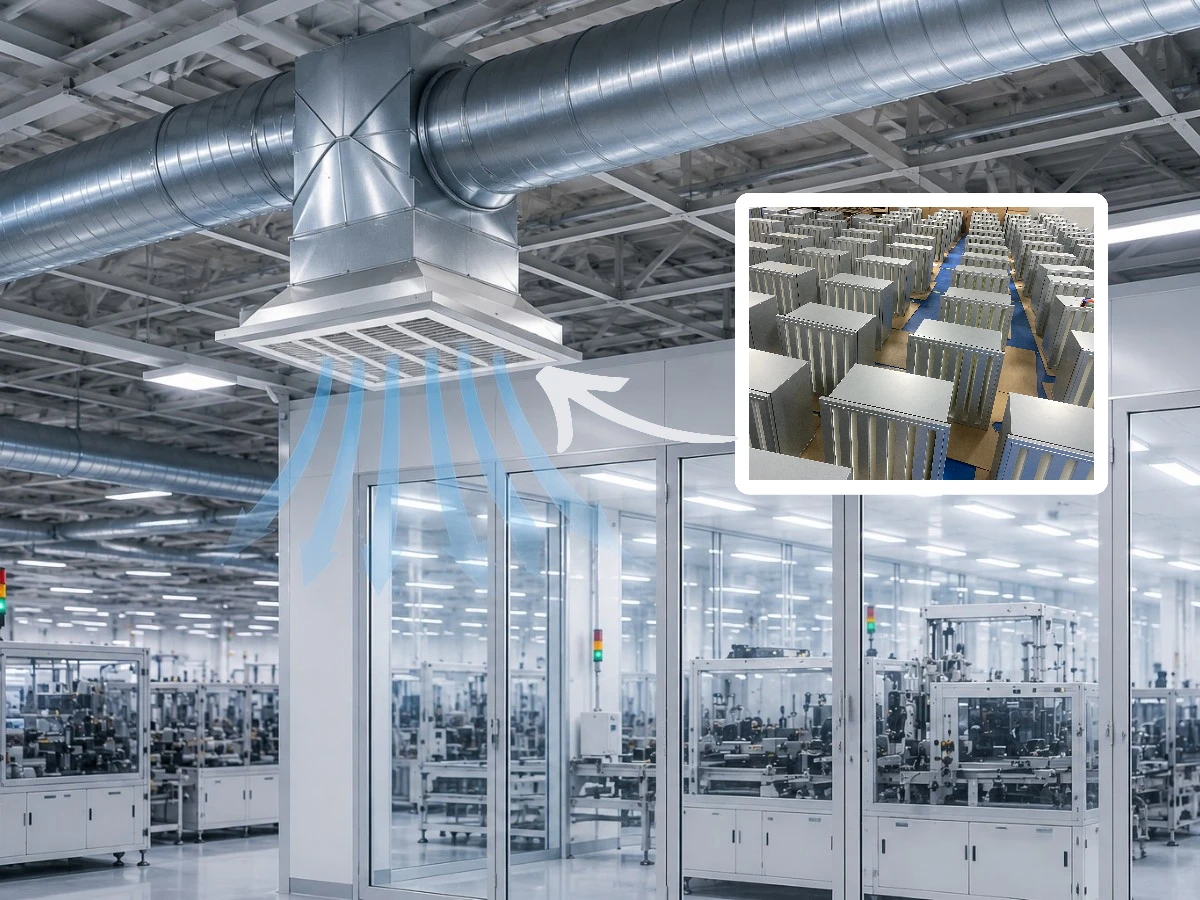

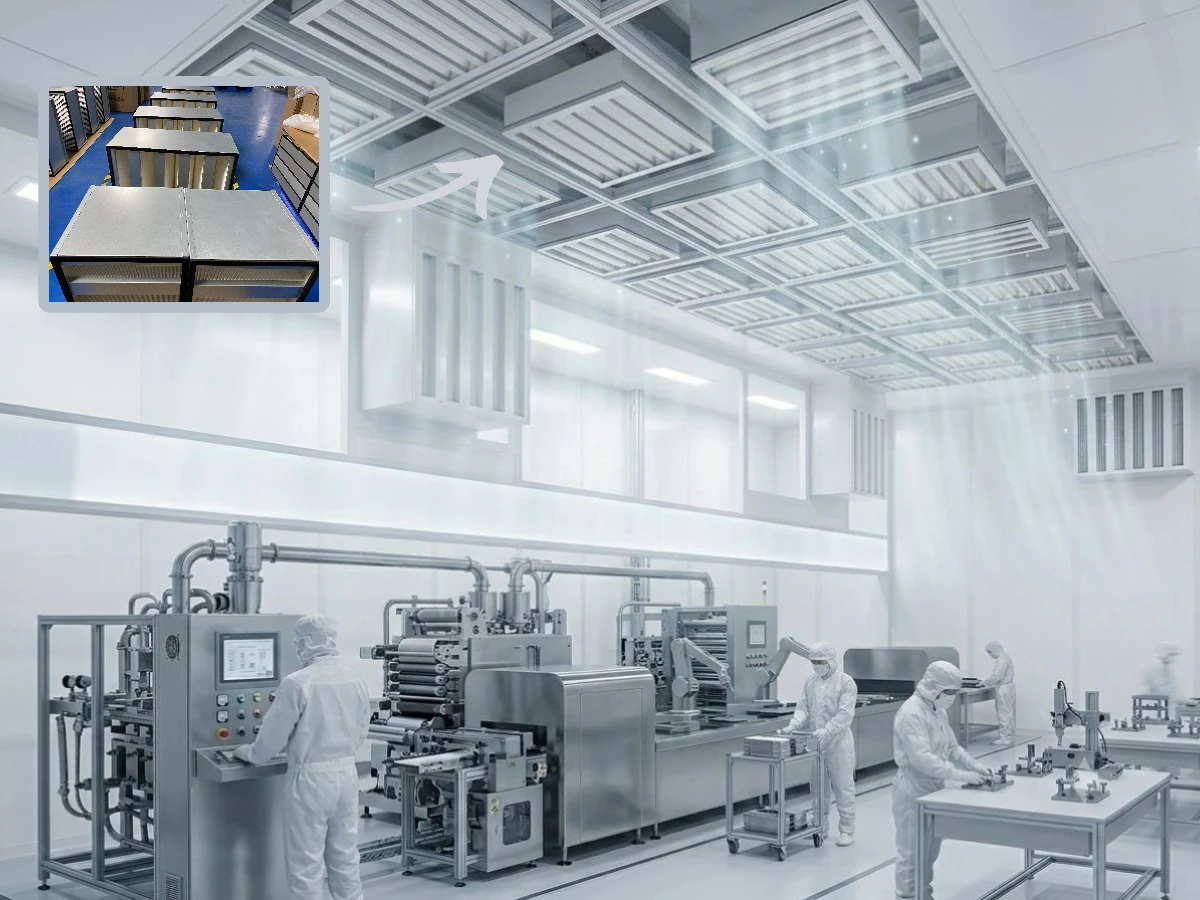

Applications
